QTZ63C 技术参数

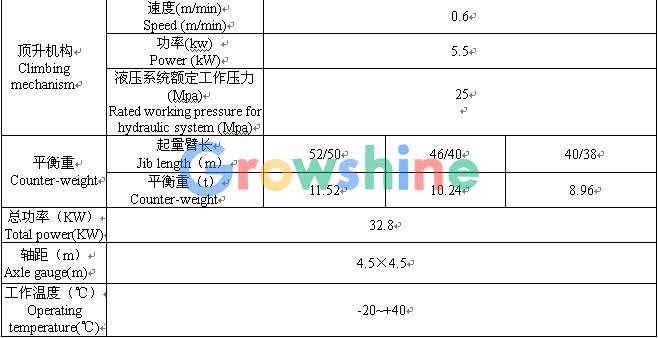

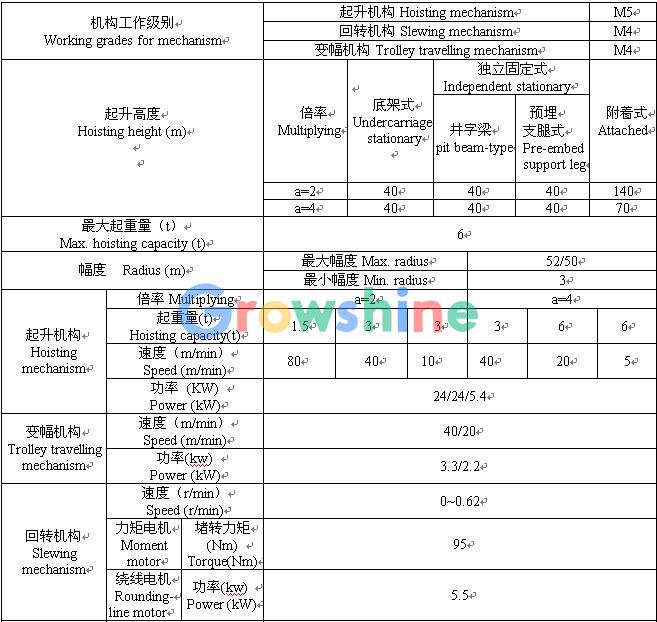

技术性能表:

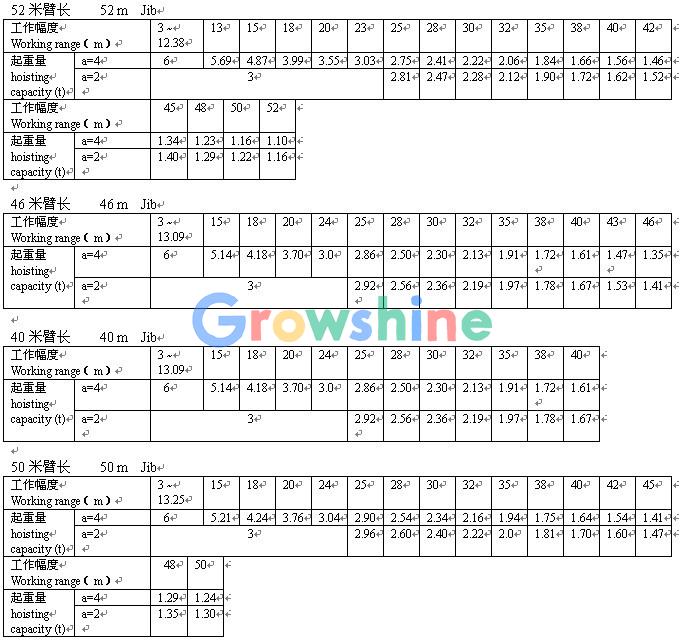

起重性能表 Hoisting performance list:
| 标准号Standard number | 型号Type | 数量Qty. | 使用部位Used in |
| QW1250.40 | 回转支承Slewing ring Z=144 m=10 | 1 | 回转机构Slewing mechanism |
| YWZ3-315/45-16 | 制动器Braker | 1 | 起升机构Hoisting mechanism |
| YZTDF225M2-4/8/32 | 电机Motor 24/24/5.4KW | 1 | 起升机构Hoisting mechanism |
| YDEJ132S-4/8-B5 | 电机Motor 3.3/2.2 KW | 1 | 变幅机构Trolley travelling mechanism |
| YLEF112L-6-95 | 力矩电机Torque Motor | 1 | 回转机构Slewing mechanism |
| QTZ63C.2.13 | 测力环Measuring force ring | 1 | 回转塔身(起重臂) |
| BWL-D5 | 力矩限制器Moment limiter | 1 | 塔帽弦杆chord of cat head |
