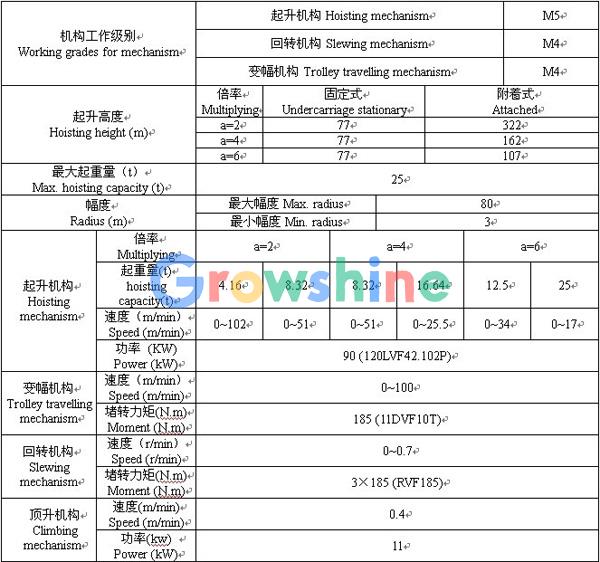

格莳国际Growshine：鸿达 QTZ500 动臂塔式起重机参数配置
广数供应链运营团队, 27 01月, 2025，浏览：
441 次
80米臂长 80m jib| 工作幅度（m）Working range | 3~14.6 | 20 | 23 | 25 | 28 | 30 | 32 | 35 | 38 | 40 | 43 | 45 | 48 |
| 起重量(t)Hoisting capacity(t) | a=6 | 25 | 17.16 | 14.47 | 13.06 | 11.34 | 10.38 | 9.56 | 8.5 | 7.61 | 7.1 | 6.42 | 6.01 | 5.47 |
| a=4 | 16.64 | 15.19 | 13.78 | 12.06 | 11.1 | 10.28 | 9.22 | 8.33 | 7.82 | 7.14 | 6.73 | 6.19 |
| a=2 | 8.32 | 7.95 | 7.27 | 6.86 | 6.32 |
| 工作幅度(m)Working range | 50 | 52 | 55 | 58 | 60 | 62 | 65 | 68 | 70 | 72 | 75 | 78 | 80 |
| 起重量(t)Hoisting capacity(t) | a=6 | 5.15 | 4.86 | 4.45 | 4.09 | 3.87 | 3.66 | 3.38 | 3.12 | 2.96 | 2.81 | 2.6 | 2.4 | 2.28 |
| a=4 | 5.87 | 5.58 | 5.17 | 4.81 | 4.59 | 4.38 | 4.1 | 3.84 | 3.68 | 3.53 | 3.32 | 3.12 | 3.0 |
| a=2 | 6.0 | 5.71 | 5.3 | 4.94 | 4.72 | 4.51 | 4.23 | 3.97 | 3.81 | 3.66 | 3.45 | 3.25 | 3.13 |
75米臂长 75m jib| 工作幅度（m）Working range | 3~16.4 | 20 | 23 | 25 | 28 | 30 | 32 | 35 | 38 | 40 | 42 | 45 | 48 |
| 起重量(t)Hoisting capacity(t) | a=6 | 25 | 19.83 | 16.78 | 15.18 | 13.21 | 12.13 | 11.19 | 9.99 | 8.98 | 8.39 | 7.87 | 7.16 | 6.55 |
| a=4 | 16.64 | 15.9 | 13.93 | 12.85 | 11.91 | 10.71 | 9.7 | 9.11 | 8.59 | 7.88 | 7.27 |
| a=2 | 8.32 | 8.01 | 7.4 |
| 工作幅度(m)Working range | 50 | 52 | 55 | 58 | 60 | 62 | 65 | 68 | 70 | 72 | 75 | |
| 起重量(t)Hoisting capacity(t) | a=6 | 6.19 | 5.85 | 5.39 | 4.98 | 4.73 | 4.49 | 4.17 | 3.87 | 3.69 | 3.52 | 3.28 |
| a=4 | 6.91 | 6.57 | 6.11 | 5.7 | 5.45 | 5.21 | 4.89 | 4.59 | 4.41 | 4.24 | 4.0 |
| a=2 | 7.04 | 6.7 | 6.24 | 5.83 | 5.58 | 5.34 | 5.02 | 4.72 | 4.54 | 4.37 | 4.13 |
| | | | | | | | | | | | | | | | | | | | | | | | |
70米臂长 70m jib| 工作幅度（m）Working range | 3~18.9 | 20 | 23 | 25 | 28 | 30 | 32 | 35 | 37 | 40 | 43 | 45 |
| 起重量(t)Hoisting capacity | a=6 | 25 | 23.44 | 19.89 | 18.02 | 15.74 | 14.49 | 13.39 | 11.99 | 11.19 | 10.14 | 9.25 | 8.71 |
| a=4 | 16.64 | 16.46 | 15.21 | 14.11 | 12.71 | 11.91 | 10.86 | 9.97 | 9.43 |
| a=2 | 8.32 |
| 工作幅度(m)Working range | 47 | 50 | 52 | 55 | 58 | 60 | 62 | 65 | 68 | 70 | |
| 起重量(t)Hoisting capacity | a=6 | 8.23 | 7.58 | 7.19 | 6.65 | 6.17 | 5.88 | 5.61 | 5.23 | 4.89 | 4.68 | |
| a=4 | 8.95 | 8.3 | 7.91 | 7.37 | 6.89 | 6.6 | 6.33 | 5.95 | 5.61 | 5.4 | |
| a=2 | 8.32 | 8.04 | 7.5 | 7.02 | 6.73 | 6.46 | 6.08 | 5.74 | 5.53 | |
| | | | | | | | | | | | | | | | | | | | | | |
65米臂长 65m jib| 工作幅度（m）Working range | 3~19.03 | 20 | 23 | 25 | 28 | 30 | 32 | 35 | 37 | 40 | 43 | 45 | 47 |
| 起重量(t)Hoisting capacity(t) | a=6 | 25 | 23.59 | 20.03 | 18.15 | 15.85 | 14.59 | 13.49 | 12.08 | 11.27 | 10.22 | 9.31 | 8.78 | 8.29 |
| a=4 | 16.64 | 16.57 | 15.31 | 14.21 | 12.8 | 11.99 | 10.94 | 10.03 | 9.5 | 9.01 |
| a=2 | 8.32 |
| 工作幅度(m)Working range | 50 | 52 | 55 | 57 | 60 | 63 | 65 | |
| 起重量(t)Hoisting capacity(t) | a=6 | 7.64 | 7.24 | 6.71 | 6.38 | 5.93 | 5.53 | 5.28 | |
| a=4 | 8.36 | 7.96 | 7.43 | 7.1 | 6.65 | 6.25 | 6.0 | |
| a=2 | 8.32 | 8.09 | 7.56 | 7.23 | 6.78 | 6.38 | 6.13 | |
60米臂长 60m jib| 工作幅度（m）Working range | 3~19.35 | 20 | 23 | 25 | 28 | 30 | 32 | 35 | 38 | 40 | 42 | 45 |
| 起重量(t)Hoistingcapacity(t) | a=6 | 25 | 24.05 | 20.42 | 18.5 | 16.18 | 14.89 | 13.77 | 12.34 | 11.14 | 10.44 | 9.81 | 8.98 |
| a=4 | 16.64 | 15.61 | 14.49 | 13.06 | 11.86 | 11.16 | 10.53 | 9.7 |
| a=2 | 8.32 |
| 工作幅度(m)Working range | 48 | 50 | 52 | 55 | 58 | 60 | |
| 起重量(t)Hoistingcapacity(t) | a=6 | 8.25 | 7.82 | 7.41 | 6.87 | 6.38 | 6.08 | |
| a=4 | 8.97 | 8.54 | 8.13 | 7.59 | 7.1 | 6.8 | |
| a=2 | 8.32 | 8.26 | 7.72 | 7.23 | 6.93 | |
| | | | | | | | | | | | | | | |
55米臂长 55m jib| 工作幅度（m）Working range | 3~19.96 | 22 | 25 | 28 | 30 | 32 | 35 | 37 | 40 | 43 | 45 | 47 |
| 起重量(t)Hoistingcapacity(t) | a=6 | 25 | 22.32 | 19.22 | 16.8 | 15.47 | 14.32 | 12.84 | 12.0 | 10.88 | 9.92 | 9.36 | 8.85 |
| a=4 | 16.64 | 16.19 | 15.04 | 13.56 | 12.72 | 11.6 | 10.64 | 10.08 | 9.57 |
| a=2 | 8.32 |
| 工作幅度(m)Working range | 50 | 52 | 55 | |
| 起重量(t)Hoistingcapacity(t) | a=6 | 8.16 | 7.74 | 7.18 | |
| a=4 | 8.88 | 8.46 | 7.9 | |
| a=2 | 8.32 | 8.03 | |
