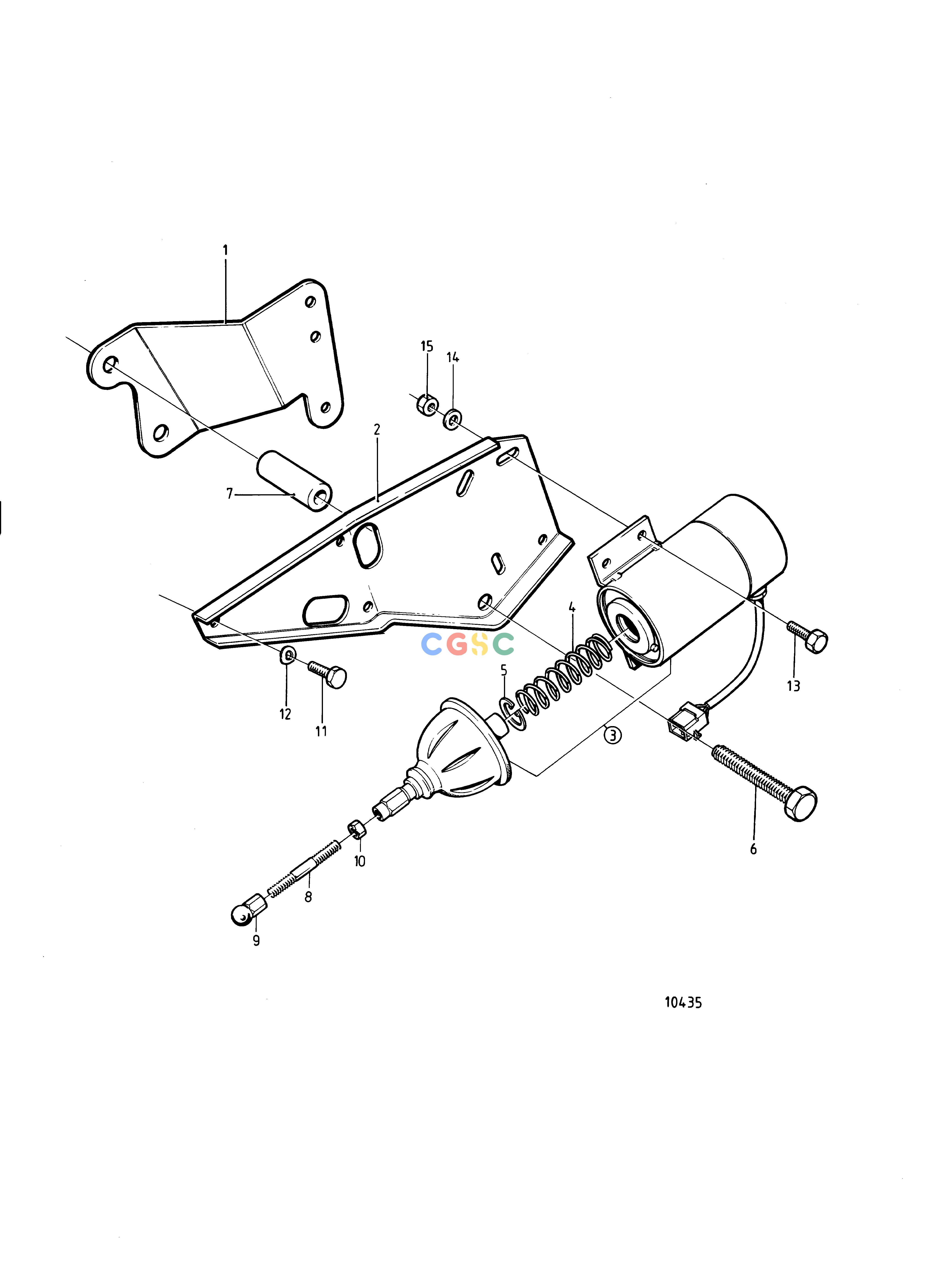

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TControlsControl Bracket and Stop SolenoidEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
444 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
840479
|
[1] |
Bracket
|
|
| 2. |
858121
|
[1] |
Bracket
|
|
| 3. |
876592
|
[1] |
Control solenoid kit
|
12V (876191)
|
| 4. |
847333
|
[1] |
Return spring
|
|
| 5. |
914456
|
[1] |
Snap ring
|
|
| 6. |
970957
|
[1] |
Hexagon screw
|
L=75mm
|
| 7. |
859024
|
[1] |
Spacer sleeve
|
|
| 8. |
949640
|
[1] |
Control rod
|
|
| 9. |
959090
|
[1] |
Ball socket
|
|
| 10. |
955782
|
[2] |
Hexagon nut
|
|
| 11. |
955274
|
[3] |
Hexagon screw
|
L=25mm
|
| 12. |
941906
|
[3] |
Spring washer
|
|
| 13. |
955294
|
[4] |
Hexagon screw
|
|
| 14. |
955894
|
[4] |
Washer
|
|
| 15. |
955782
|
[4] |
Hexagon nut
|
|
