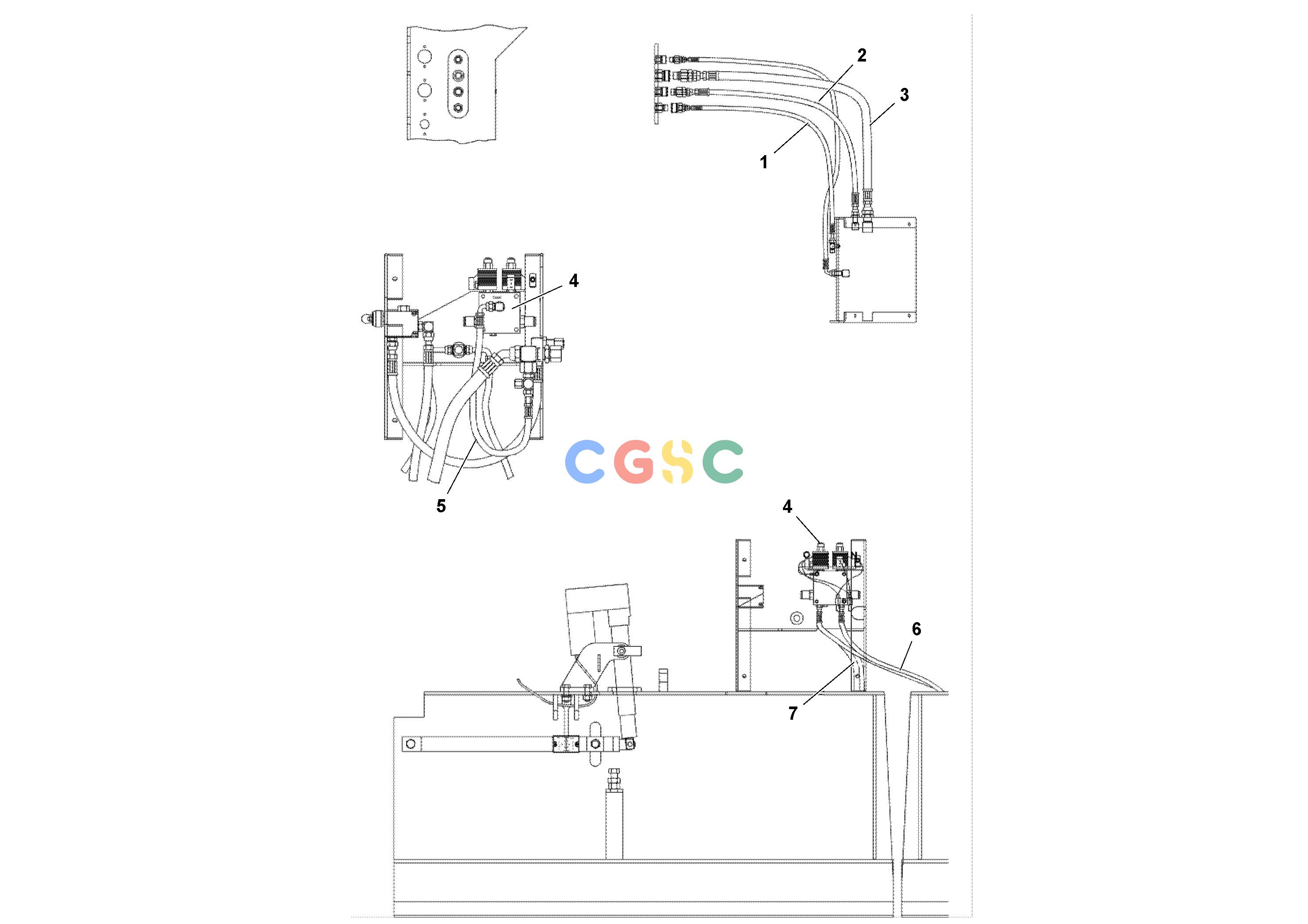

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM20309696
|
|
Hose assembly
|
|
| 4. |
RM20928263
|
[1] |
Control valve
|
FOR REPAIRS SEE REF
|
| |
VOE935069
|
[1] |
Elbow nipple
|
|
| |
VOE936606
|
[1] |
T-nipple
|
|
| |
VOE935100
|
[2] |
Plug
|
|
| 5. |
RM20200887
|
[1] |
Hose assembly
|
|
| |
RM59918540
|
[1] |
Adapter
|
|
| |
VOE935100
|
[1] |
Plug
|
|
| |
RM59924019
|
[1] |
Reducer
|
|
| 6. |
RM20947453
|
[2] |
Hose assembly
|
RH
|
| 7. |
RM20947529
|
[2] |
Hose assembly
|
LH
|
| |
RM59903211
|
[1] |
Adapter
|
|
| |
RM20197703
|
[1] |
Coupling piece
|
|
| 2. |
RM20202065
|
[1] |
Hydraulic hose
|
|
| |
RM59903138
|
[1] |
Adapter
|
|
| |
RM20197661
|
[1] |
Nipple
|
|
| 3. |
RM20202479
|
[1] |
Hose assembly
|
|
| |
RM59903146
|
[1] |
Adapter
|
|
| |
RM20197679
|
[1] |
Nipple
|
|
