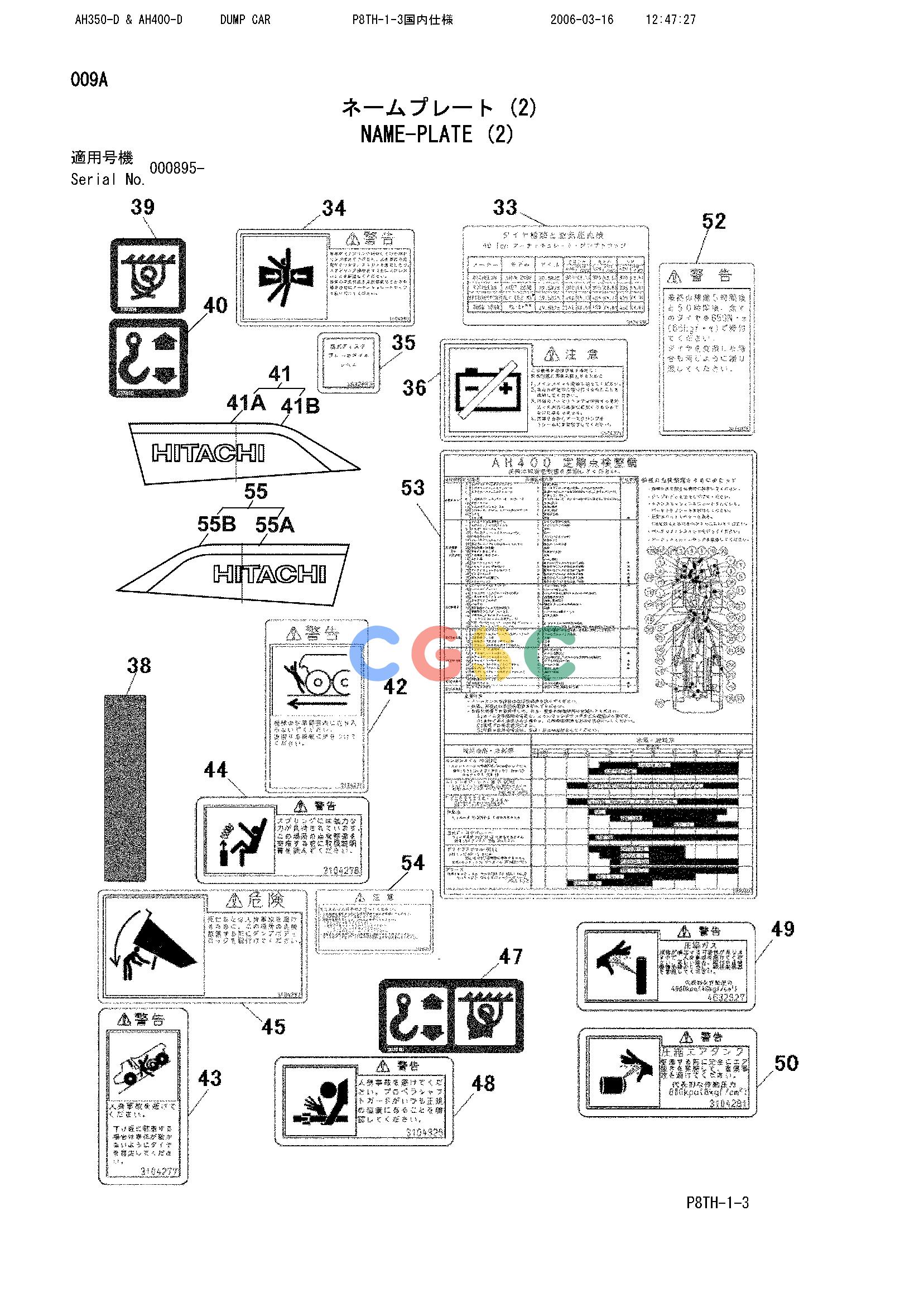

日立零件查询（AH350-D-6 6）NAME-PLATE (2) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
337 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 33. | 3104330 | [1] | NAME-PLATE | (TYPE PRESSURE) |
| 34. | 3104289 | [2] | NAME-PLATE | (ARTICULATION CRUSH) |
| 35. | 4632883 | [1] | NAME-PLATE | (BRAKE OIL LEVEL) |
| 36. | 3104274 | [2] | NAME-PLATE | (CAUTION FOR WELDING) |
| 38. | 206249B | [1] | DECAL,RED REFRECTOR,ADT | (RED REFRECTOR) |
| 39. | 207304B | [1] | DECAL,TIE DOWN POINT,D# | (TIE DOWN POINT) |
| 40. | 207310B | [1] | DECAL LIFTING EYE,D# | (TIE DOWN POINT) |
| 41. | 208022B | [1] | DECAL, HITACHI BIN LOGO | (NAME OF COMPANY:LEFT) |
| 41. | 9267212 | [1] | NAME-PLATE | (NAME OF COMPANY:LEFT) |
| 41A. | 3108621 | [1] | NAME-PLATE | (HITACHI:FRONT PART) |
| 41B. | 3108622 | [1] | NAME-PLATE | (HITACHI:REAR PART) |
| 42. | 3104291 | [1] | NAME-PLATE | (STAY CLEAR) |
| 43. | 3104277 | [1] | DECAL,CIRCUIT BREAKER,AD | (PARKING BRAKE) |
| 44. | 3104278 | [1] | NAME-PLATE | (WARNING:SPRING) |
| 45. | 3104297 | [1] | NAME-PLATE | (DANGER:BIN SUPPORT) |
| 47. | 207290B | [1] | DECAL, LIFT/TIDE DOWN) | (LIFT/TIE DOWN POINT) |
| 48. | 3104325 | [1] | NAME-PLATE | (WARNING:PROPSHAFT GUARDS) |
| 49. | 4632827 | [1] | NAME-PLATE | (WARNING:PRESSUREISED GAS) |
| 50. | 3104281 | [1] | NAME-PLATE | (WARNING:COMPRESSED AIR) |
| 52. | 3104276 | [1] | NAME-PLATE | (WARNING:WHEEL NUTS) |
| 53. | 1032800 | [1] | NAME-PLATE | (MAINTENANCE) |
| 54. | 3104275 | [1] | NAME-PLATE | (INTENSIVE READING MANUAL) |
| 55. | 208026B | [1] | DECAL, HITACHI BIN LOGO | (NAME OF COMPANY:RIGHT) |
| 55. | 9265710 | [1] | NAME-PLATE | (NAME OF COMPANY:RIGHT) |
| 55A. | 3108613 | [1] | NAME-PLATE | (HITACHI:FRONT PART) |
| 55B. | 3108619 | [1] | NAME-PLATE | (HITACHI:REAR PART) |
