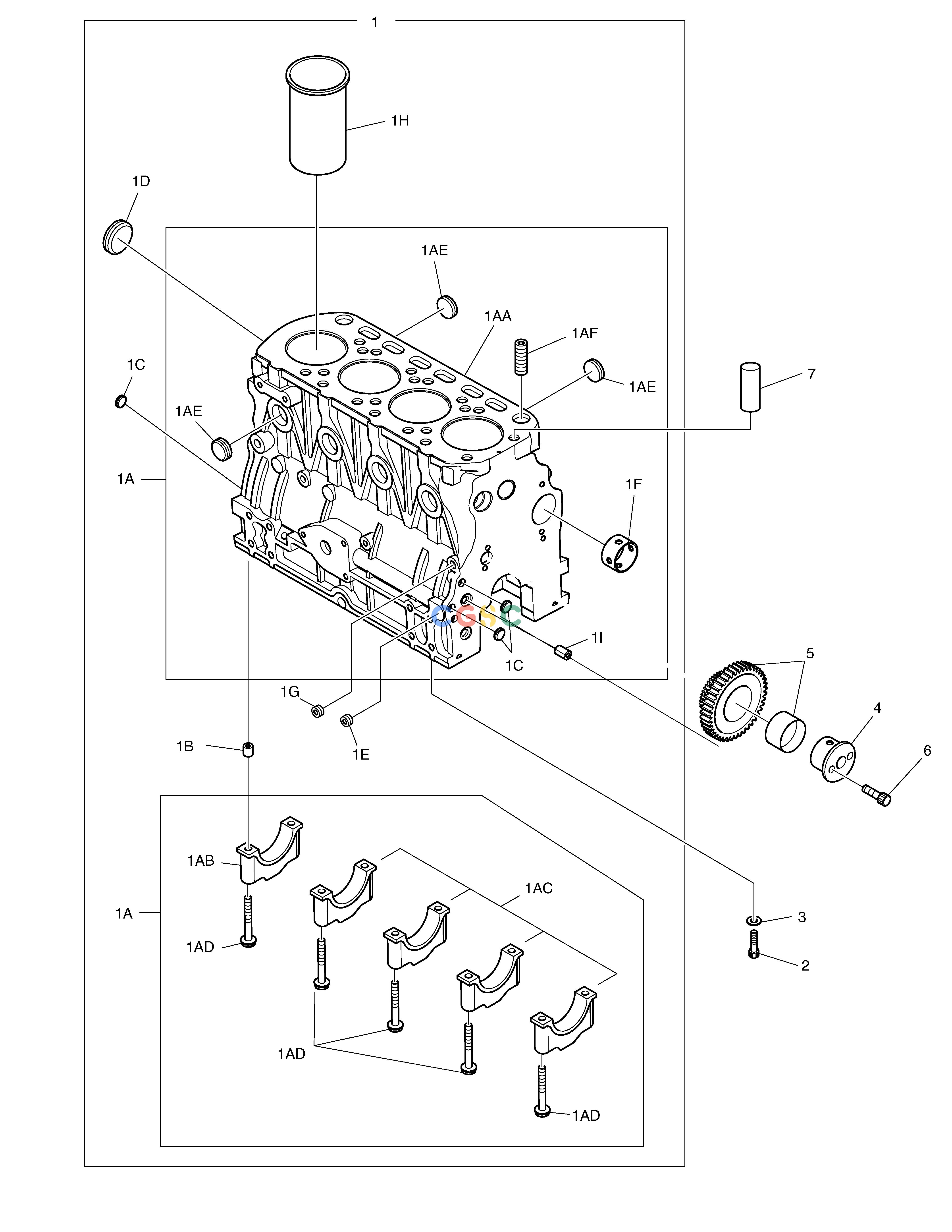

斗山零件查询CYLINDER BLOCK 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
697 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1019135
|
[-] |
CYLINDER BLOCK
|
|
| 1. |
K1019136
|
[1] |
BLOCK;CYLINDER
|
|
| 1A. |
K1019137
|
[1] |
BLOCK;CYLINDER
|
|
| 1AA. |
K1019138
|
[1] |
BLOCK;CYLINDER
|
|
| 1AB. |
K1019139
|
[1] |
CAP;MAIN BEARING
|
|
| 1AC. |
K1019140
|
[4] |
CAP;MAIN BEARING
|
|
| 1AD. |
K1019141
|
[10] |
SCREW;HEX FLANGE HEAD CAP
|
|
| 1AE. |
K1019142
|
[8] |
PLUG;EXPANSION
|
|
| 1AF. |
K1019143
|
[1] |
PLUG;THREADED
|
|
| 1B. |
K1019144
|
[1] |
PIN;ROLL
|
|
| 1C. |
K1019145
|
[3] |
PLUG;EXPANSION
|
|
| 1D. |
K1019146
|
[1] |
PLUG;EXPANSION
|
|
| 1E. |
K1019147
|
[3] |
PLUG;PIPE
|
|
| 1F. |
K1019148
|
[1] |
BUSHING
|
|
| 1G. |
K1019149
|
[1] |
PLUG;PIPE
|
|
| 1H. |
K1019150
|
[4] |
LINER;CYLINDER
|
|
| 1I. |
K1019151
|
[2] |
PIN;GUIDE
|
|
| 2. |
K1019152
|
[4] |
SCREW
|
|
| 3. |
K1019153
|
[4] |
WASHER
|
|
| 4. |
K1019154
|
[1] |
SHAFT;IDLER
|
|
| 5. |
K1019155
|
[1] |
GEAR;IDLER
|
|
| 6. |
K1019156
|
[2] |
SCREW
|
|
| 7. |
K1019373
|
[1] |
PIN;OIL
|
|
