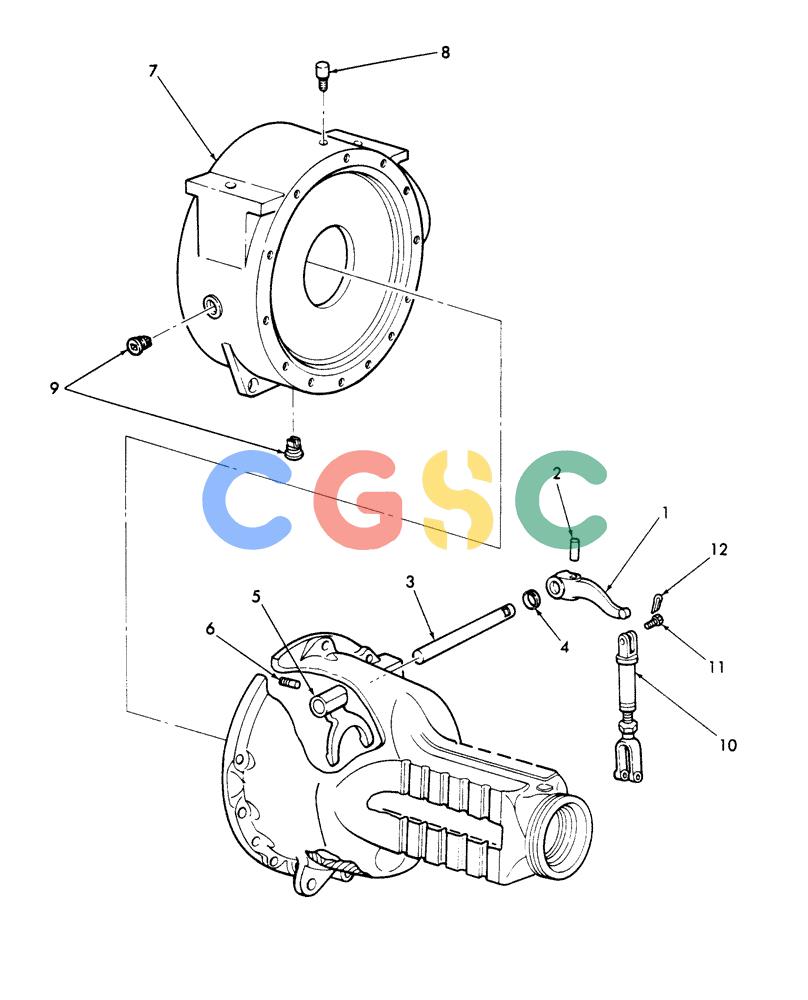

纽荷兰零件查询(A711) - CATERPILLAR AXLE (1/85-) (002) - DIFFERENTIAL CENTER HOUSING & LOCK New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
985 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONLever, Differential Lock Operating |
| 3. | C5NN4N079A | [1] | SHAFT | FORRear Axle, Differential Lock Lever Superseded by part number: 81803345 |
| 4. | E196EB9 | [1] | SEAL | FORRear Axle, Differential Lock Lever Shaft, 29.21mm O.D. Superseded by part number: 81800480 |
| 5. | C5NN4N050B | [1] | FORK | FORRear Axle, Differential Lock Superseded by part number: 81803336 |
| 6. | 957E7245 | [1] | SET SCREW,Hex, 3/8" - 24 x 1" | BASSCREW, SET, , Rear Axle, Differential Lock Fork Hex, 3/8"-24 x 1" Superseded by part number: 81804978 |
| 7. | D1NN4024B | [1] | HOUSING | FORAxle Differential Center Superseded by part number: E2NN4024AA |
| 8. | 21T4022 | [1] | BREATHER | GIDifferential, Breather |
| 9. | D9NN7010BA | [2] | PLUG | BASMagnetic Superseded by part number: D9NN7010AA |
| 10. | 83949838 | [1] | ROD | BAS& Clevis Assy. |
| 11. | 73931S36 | [1] | PIN,6.3mm OD x 23.81mm L | FOR5/16" x 1-7/32" |
| 12. | 80756 | [1] | COTTER PIN,1/8" x 3/4" | NHPIN, SPLIT (COTTER), 1/8" x 3/4" |
