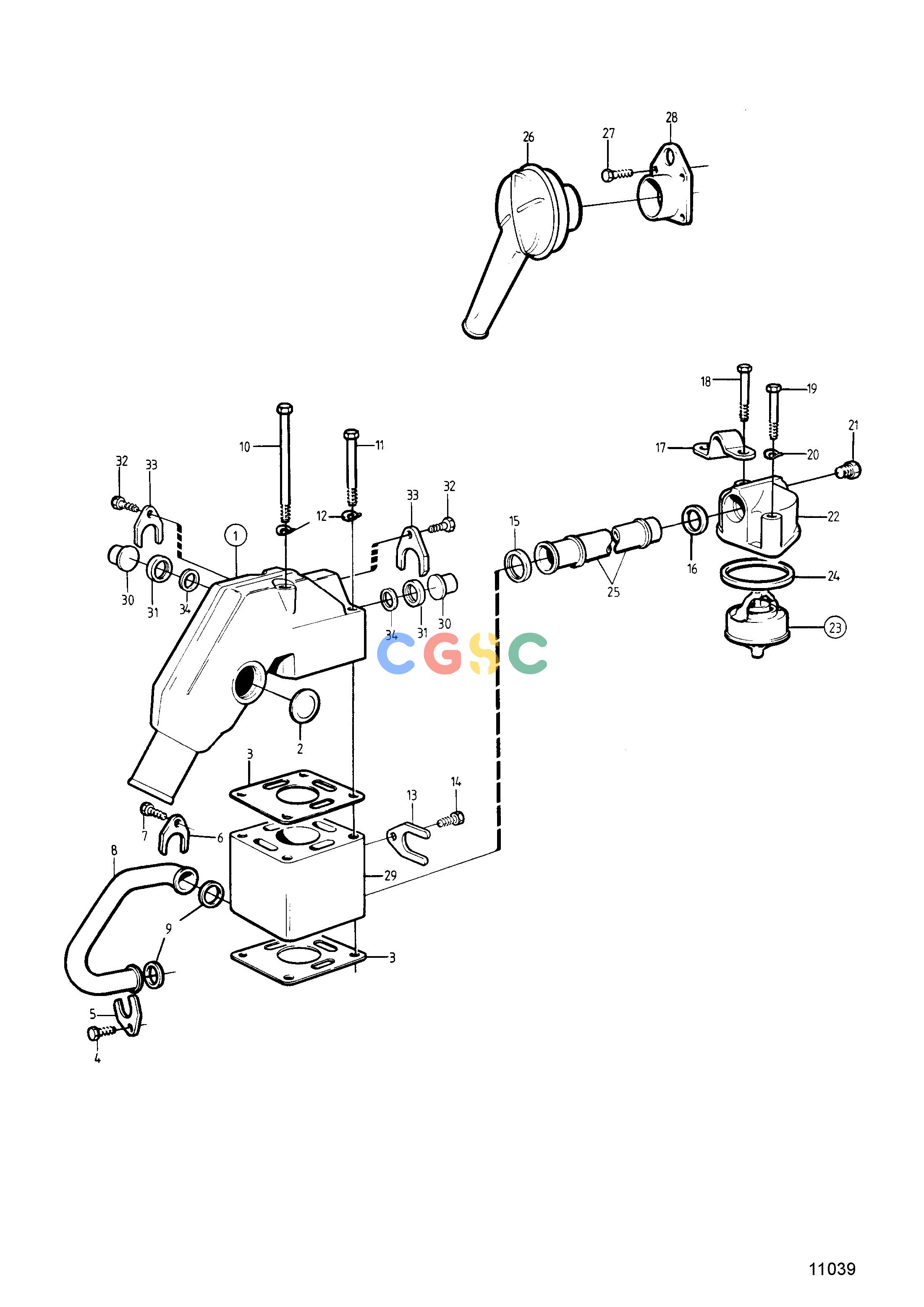

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TCooling SystemCool. Syst, Induct. A Exh. Manifold Seawater-cooled Engine. Exh: BEPC Volvo Penta Parts
广数供应链运营团队, 14 02月, 2025，浏览：
481 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
840690
|
[1] |
Exhaust pipe elbow
|
|
| 2. |
477026
|
[2] |
Expansion plug
|
(192426)
|
| 3. |
840902
|
[2] |
Gasket
|
(3875050)
|
| 4. |
955269
|
[1] |
Hexagon screw
|
|
| 5. |
840676
|
[1] |
Clamp
|
|
| 6. |
840676
|
[1] |
Clamp
|
|
| 7. |
955269
|
[1] |
Hexagon screw
|
|
| 8. |
840719
|
[1] |
Pipe
|
|
| 9. |
418445
|
[2] |
Sealing ring
|
|
| 10. |
955312
|
[2] |
Hexagon screw
|
L=150mm
|
| 11. |
969225
|
[2] |
Flange screw
|
L=120mm
|
| 12. |
941907
|
[4] |
Spring washer
|
|
| 13. |
840740
|
[1] |
Clamp
|
|
| 14. |
955269
|
[1] |
Hexagon screw
|
|
| 15. |
418445
|
[1] |
Sealing ring
|
|
| 16. |
418411
|
[1] |
Sealing ring
|
|
| 17. |
|
|
|
|
| 18. |
955300
|
[1] |
Hexagon screw
|
L=50mm
|
| 19. |
955299
|
[1] |
Hexagon screw
|
L=45mm
|
| 20. |
941907
|
[1] |
Spring washer
|
|
| 21. |
981749
|
[1] |
Plug
|
|
| 22. |
840675
|
[1] |
Thermostat housing
|
|
| 23. |
877355
|
[1] |
Thermostat kit
|
60°C
|
| 24. |
416033
|
[1] |
Sealing ring
|
|
| 25. |
840680
|
[1] |
Coolant pipe
|
|
| 26. |
840691
|
[1] |
Silencer
|
|
| 27. |
955271
|
[1] |
Hexagon screw
|
|
| 28. |
840840
|
[1] |
Connection flange
|
|
| 29. |
840891
|
[1] |
Exhaust riser
|
|
| 30. |
840797
|
[2] |
Plug
|
|
| 31. |
418445
|
[2] |
Sealing ring
|
|
| 32. |
955269
|
[2] |
Hexagon screw
|
|
| 33. |
840676
|
[2] |
Clamp
|
|
| 34. |
943194
|
[2] |
Washer
|
|
