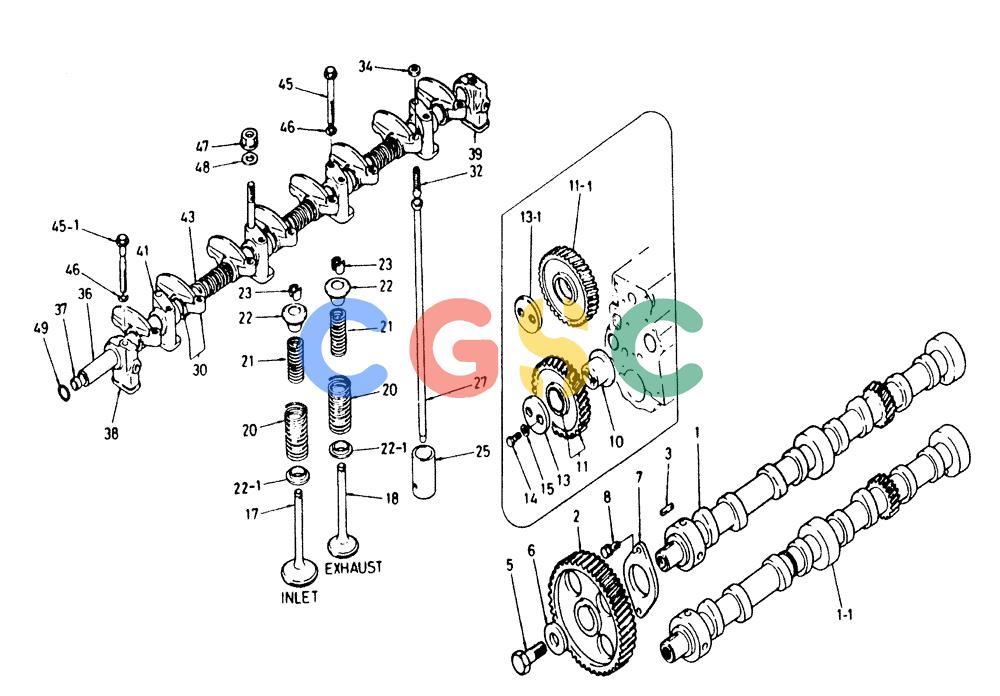

神钢零件查询(4BD1) - ISUZU DIESEL ENGINE - K904 MARK II EXCAVATORS (1/06-12/07) (01-008) - VALVE MECHANISM (CAM SHAFT, IDLE GEAR, ROCKER ARM) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
886 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI5125110200 | [1] | CAM SHAFT (-81-2) | |
| 1. | VI5125110810 | [1] | CAMSHAFT | KOBCAM SHAFT Superseded by part number: VI8970145731 |
| 1-1. | VI5125111001 | [1] | CAM SHAFT | |
| 2. | VI9125221471 | [1] | GEAR, CAM SHAFT | |
| 2-1. | VI5125220180 | [1] | GEAR, CAM SHAFT (-81-4) | |
| 2-1. | VI1125220160 | [1] | GEAR, CAM SHAFT | |
| 3. | VI9080107200 | [1] | KEY | KOBKEY FEATHER, CAM GEAR |
| 5. | VI9920614280 | [1] | BOLT, CAM GEAR (-81-2) | |
| 5. | VI5090002360 | [1] | BOLT | KOBBOLT, CAM GEAR |
| 6. | VI9098518502 | [1] | WASHER, CAM GEAR | |
| 7. | VI9116810150 | [1] | THRUST PLATE | KOBPLATE, THRUST, CAM SHAFT |
| 7-1. | VI5116810080 | [1] | PLATE, THRUST, CAM SHAFT | |
| 8. | VI9019108250 | [2] | BOLT | KOBSEMS, THRUST PLATE Superseded by part number: VI0505408250 |
| 10. | VI9125310300 | [1] | SHAFT | KOBSHAFT, IDLE GEAR, CYL BLOCK |
| 11. | VI9125238010 | [1] | GEAR, W/BUSH, IDLE | |
| 11. | VI1125230570 | [1] | GEAR, W/BUSH, IDLE | |
| 11-1. | VI8941339370 | [1] | GEAR, W/BUSH, IDLE | |
| 13. | VI5125350011 | [1] | COLLAR | KOBCOLLAR, THRUST |
| 13-1. | VI5125350160 | [1] | COLLAR, THRUST | |
| 14-1. | VI9010560550 | [2] | BOLT (-81-1) | |
| 14-1. | VI5090300380 | [2] | BOLT, SEMS | |
| 15. | VI9091505100 | [2] | WASHER | KOBWASHER, SPR. (-81-1) Superseded by part number: VI1099853450 |
| 17. | VI5125510240 | [4] | VALVE, INL (-81-5) | |
| 17. | VI1125510500 | [4] | VALVE, INL. | |
| 17. | VI1125510540 | [4] | STD INLET VALVE | KOBVALVE, INL. Superseded by part number: VI1125510541 |
| 18. | VI5125520310 | [4] | VALVE, EXH. (-81-5) | |
| 18. | VI5125520430 | [4] | VALVE, EXH. | |
| 18-2. | VI5125520480 | [4] | VALVE, EXH. | |
| 18. | VI1125520250 | [4] | VALVE | KOBVALVE, EXH. Superseded by part number: VI8970287040 |
| 20. | VI5125610082 | [8] | SPRING, VALVE, OUTER (-84-3) | |
| 20. | VI5125610090 | [8] | VALVE SPRING | KOBSPRING,VALVE, OUTER |
| 20-1. | VI5125610090 | [8] | VALVE SPRING | KOBSPRING, VALVE, OUTER |
| 21. | VI5125620062 | [8] | SPRING, VALVE, INNER | |
| 22. | VI5125630230 | [8] | SEAT, SPRING (-84-2) | |
| 22-1. | VI5125630010 | [8] | SEAT | KOBSEAT, SPRING, LWR. (-84-3) |
| 22-1. | VI1125630350 | [8] | SEAT, SPRING, LWR. | |
| 22. | VI8944470450 | [8] | SEAT, SPRING, LWR. | |
| 22-2. | VI8941145790 | [8] | SEAT | KOBSEAT SPRING |
| 22-3. | VI1125630350 | [8] | SEAT, SPRING, LOW | |
| 23. | VI5125650060 | [16] | COLLAR | KOBCOLLAR, SPLIT |
| 25. | VI5125710210 | [8] | TAPPET | |
| 25. | VI5125710031 | [8] | TAPPET | |
| 27. | VI9125758030 | [8] | ROD, PUSH | |
| 27. | VI1125750360 | [8] | ROD | KOBROD, PUSH Superseded by part number: 289165A1 |
| 30-1. | VI5126110310 | [8] | ROCKER ARM | KOBARM ASM, ROCKER, W/BUSH |
| 32. | VI9126160420 | [8] | ADJUSTMENT SCREW | KOBSCREW, ADJ. ROCKER ARM |
| 34. | VI9091115080 | [8] | NUT | KOBNUT, ADJ. SCREW Superseded by part number: VI0911115080 |
| 36. | VI5126210200 | [1] | SHAFT, ROCKER ARM (-81-6) | |
| 36. | VI5126210201 | [1] | SHAFT, ROCKER ARM | |
| 37. | VI9126260050 | [2] | PLUG | KOBPLUG ROCKER ARM |
| 38-1. | VI5128280111 | [1] | BRACKET, RT ROCKER ARM | |
| 38-2. | VI5126280120 | [1] | BRACKET | KOBBRACKET, FRT ROCKER ARM |
| 39. | VI5126280060 | [1] | BRACKET, RR, ROCKER ARM | |
| 41. | VI9126281050 | [4] | BRACKET | KOBBRACKET, INTER, ROCKER ARM |
| 43. | VI5095800200 | [3] | SPRING, ROCKER ARM SHAFT | |
| 43. | VI1095803350 | [3] | SPRING | KOBSPRING, ROCKER ARM SHAFT |
| 45. | VI9029508650 | [6] | BOLT, ROCKER ARM | |
| 46. | VI9098514300 | [7] | WASHER | KOBWASHER, PL ROCKER ARM |
| 47. | VI9091123080 | [3] | NUT, ROCKER ARM BRKT | |
| 48. | VI9098514300 | [3] | WASHER | KOBWASHER, PL. |
| 49. | VI5096230600 | [1] | O-RING | KOBPACKING, O-RING |
