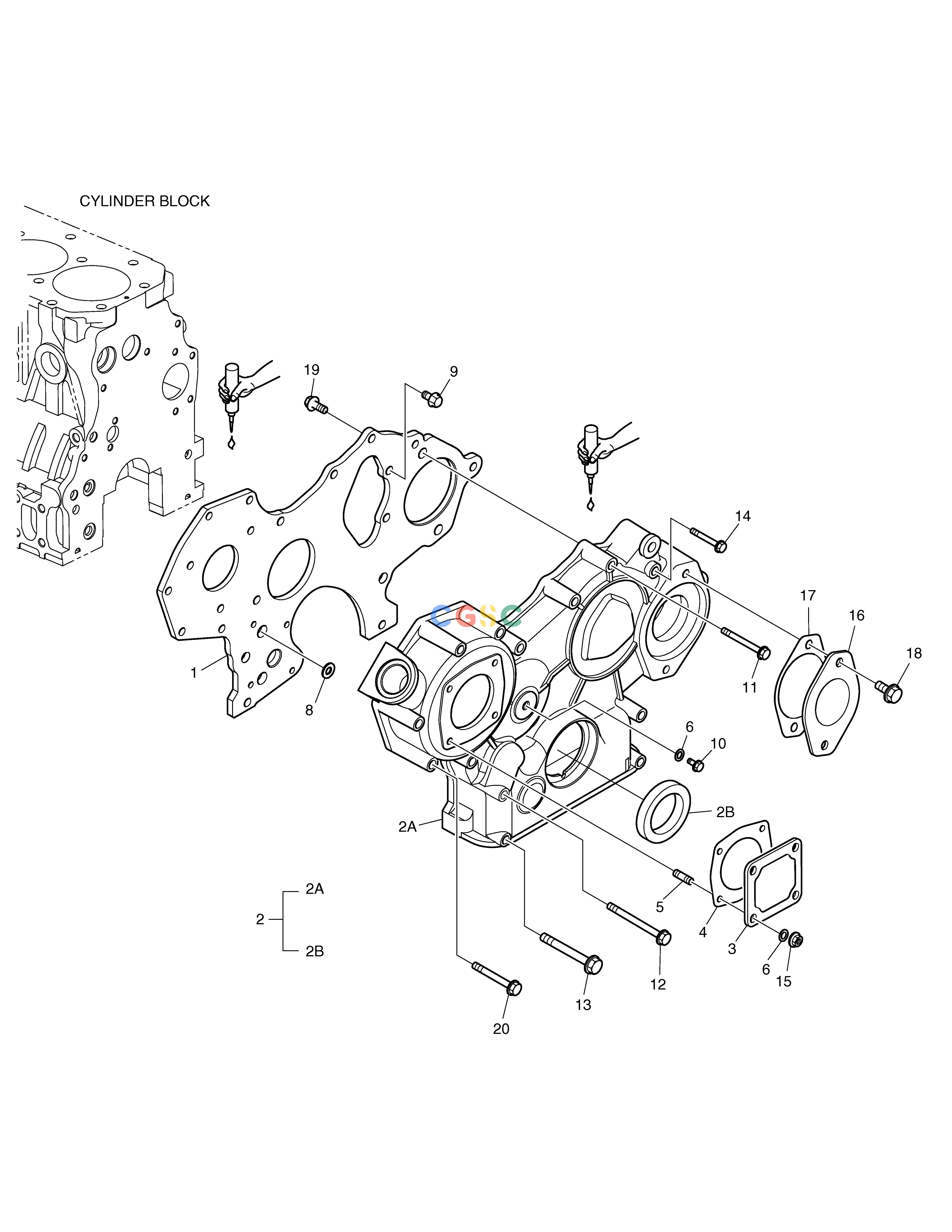

斗山零件查询FRONT GEAR COVER 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
687 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1019226
|
[-] |
FRONT GEAR COVER
|
|
| 1. |
K1019227
|
[1] |
PLATE;GEAR COVER
|
|
| 10. |
K1019171
|
[1] |
SCREW
|
|
| 11. |
K1019234
|
[3] |
SCREW
|
|
| 12. |
K1019235
|
[2] |
SCREW
|
|
| 13. |
K1019236
|
[7] |
SCREW
|
|
| 14. |
K1019237
|
[1] |
SCREW
|
|
| 15. |
K1019179
|
[4] |
NUT
|
|
| 16. |
K1019375
|
[1] |
COVER;ACCESSORY DRIVE
|
|
| 17. |
K1019374
|
[1] |
GASKET;ACC DRIVE COVER
|
|
| 18. |
K1019376
|
[2] |
SCREW
|
|
| 19. |
K1019278
|
[1] |
SCREW
|
|
| 2. |
K1019228
|
[1] |
COVER;FRONT
|
|
| 20. |
K1019385
|
[5] |
SCREW
|
|
| 2A. |
K1019229
|
[1] |
COVER;FRONT
|
|
| 2B. |
K1019230
|
[1] |
SEAL;OIL
|
|
| 3. |
K1019177
|
[1] |
COVER;ACCESSORY DRIVE
|
|
| 4. |
K1019176
|
[1] |
GASKET;ACC DRIVE COVER
|
|
| 5. |
K1019231
|
[4] |
BOLT;STUD
|
|
| 6. |
K1019153
|
[5] |
WASHER
|
|
| 8. |
K1019233
|
[2] |
SEAL;RING
|
|
| 9. |
K1019210
|
[3] |
SCREW
|
|
