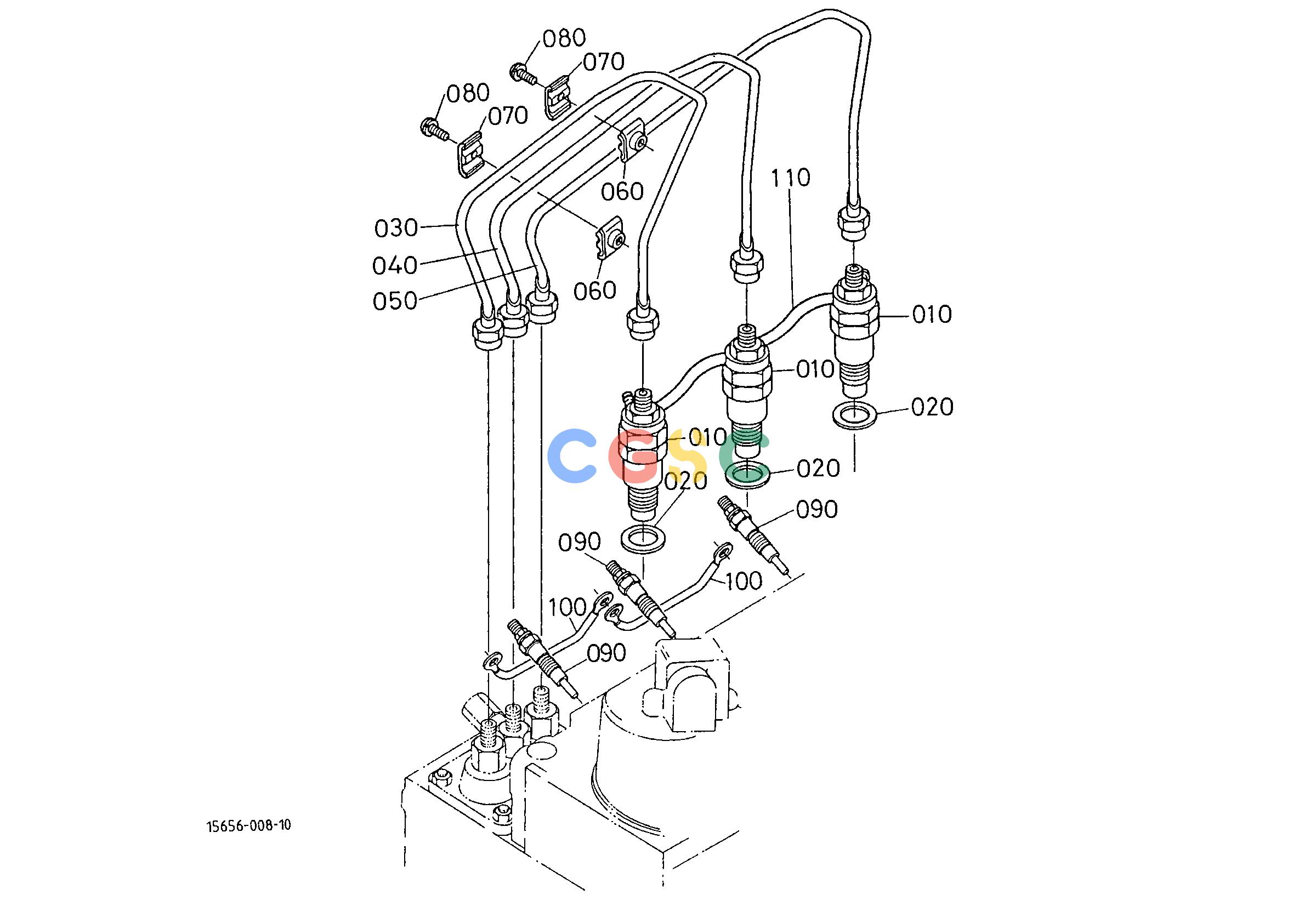

久保田零件查询T00800 NOZZLE HOLDER ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
393 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1526153020
|
[3] |
ASSY HOLDER NOZZLE
|
0.0000(lbs); 0.000
|
| 010. |
1920253020
|
[3] |
ASSY HOLDER NOZZLE
|
0.5500(lbs); 0.250
|
| 020. |
1701153620
|
[3] |
GASKET
|
0.0066(lbs); 0.003
|
| 030. |
1572753710
|
[1] |
PIPE INJECTION
|
0.2200(lbs); 0.100
|
| 040. |
1572753720
|
[1] |
PIPE INJECTION
|
0.2200(lbs); 0.100
|
| 050. |
1572753730
|
[1] |
PIPE INJECTION
|
0.2200(lbs); 0.100
|
| 060. |
1584153850
|
[2] |
CLAMP PIPE
|
0.0176(lbs); 0.008
|
| 070. |
1584153860
|
[2] |
CLAMP PIPE
|
0.0176(lbs); 0.008
|
| 080. |
0302450520
|
[2] |
SCREW WITH WASHER
|
0.0088(lbs); 0.004
|
| 090. |
1569465510
|
[3] |
PLUG GLOW
|
0.0440(lbs); 0.020
|
| 100. |
1526165560
|
[2] |
CORD GLOW PLUG
|
0.0110(lbs); 0.005
|
| 110. |
1553142500
|
[1] |
ASSY PIPE OVER FLOW
|
0.1430(lbs); 0.065
|
