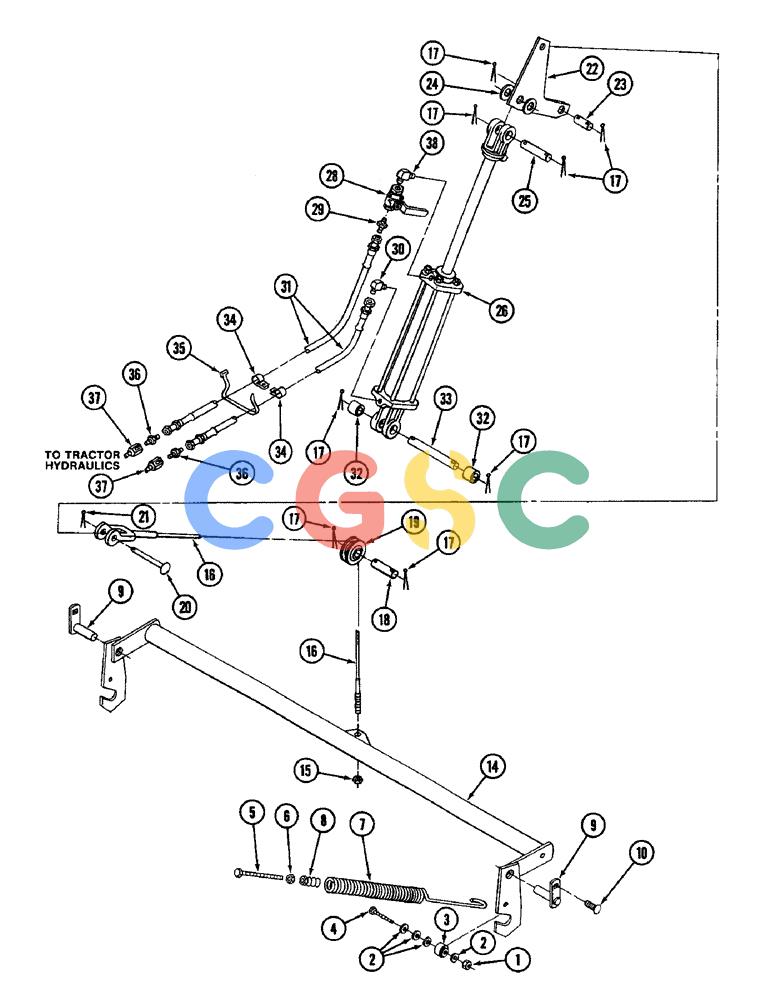

| 1. |
9413979
|
[2] |
LOCK NUT,3/8"-16, GC
|
IH
NUT - hex lock, 3/8 inch NC, grade 8 Superseded by part number: 232-4136
|
| 2. |
21403R1
|
[8] |
WASHER
|
IH
- flat, 13/32 x 1 x 1/8 inch (10 x 25 x 3 MM) Superseded by part number: 87613212
|
| 3. |
96339C1
|
[2] |
CAMSHAFT BEARING,0.3752" ID x 1.25" OD x 0.8025"
|
IH
FOLLOWER - cam. crowned
|
| 4. |
24621R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8
|
IH
Superseded by part number: 326-636
|
| 5. |
445608
|
[2] |
BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5
|
IH
- hex, 1/2 NC x 5-1/2 inch Superseded by part number: 88576
|
| 6. |
120378
|
[2] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 7. |
ZA104886
|
[2] |
SPRING
|
IH
ASSEMBLY - extension
|
| 8. |
1281009C1
|
[2] |
INSERT
|
IH
- spring
|
| 9. |
ZA104672
|
[2] |
PIN
|
IH
ASSEMBLY - latch
|
| 10. |
17351R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT - round head square neck, 3/8 NC x 1 inch, grade 1 Superseded by part number: 88682
|
| 14. |
ZA105907
|
[1] |
LATCH
|
CAS
ASSEMBLY - tailgate
|
| 15. |
9413956
|
[1] |
LOCK NUT,1/2"-13, GB
|
IH
NUT - hex lock, 1/2 inch NC Superseded by part number: 231-4138
|
| 16. |
ZA104895
|
[1] |
CABLE
|
IH
ASSEMBLY - latch
|
| 17. |
432-1628
|
[8] |
COTTER PIN,1/4" x 1 3/4"
|
CAS
Pin, Split (Cotter), 1/4" x 1 3/4" Superseded by part number: 87041
|
| 18. |
62575C1
|
[1] |
PIN
|
IH
- pulley
|
| 19. |
1281014C1
|
[1] |
PULLEY
|
IH
- lift
|
| 20. |
21957R1
|
[1] |
HEADED PIN,5/8" x 2"
|
IH
PIN - headed, 5/8 x 2 inch Superseded by part number: 439-11032
|
| 21. |
103397
|
[1] |
COTTER PIN,5/32" x 1 1/4"
|
IH
Pin, Split (Cotter), 5/32" x 1 1/4" Superseded by part number: 132-341
|
| 22. |
ZA105617
|
[1] |
PLATE
|
IH
- pivot
|
| 23. |
22983R1
|
[1] |
HEADED PIN,1" x 2"
|
CAS
PIN - headed, 1 x 2 inch
|
| 24. |
21214R1
|
[2] |
WASHER
|
IH
- flat, 1-5/32 x 2 x 7/64 inch (29 x 51 x 3 MM) Superseded by part number: 495-81192
|
| 25. |
63196C1
|
[1] |
PIN
|
IH
- clevis Superseded by part number: 427-16400
|
| 26. |
REF
|
[1] |
INSTRUCTION
|
NH
CYLINDER ASSEMBLY - hydraulic, tailgate (See page 16)
|
| 28. |
ZA103758
|
[1] |
VALVE
|
IH
- rotary
|
| 29. |
610774R1
|
[1] |
HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF
|
IH
CONNECTOR - 3/8 tube, /16-18 x 3/8 inch PT Superseded by part number: 235534
|
| 30. |
333934R1
|
[1] |
ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF
|
IH
- 90 degrees, 3/8 tube, 9/16-18 x 3/8 inch PT Superseded by part number: 235131
|
| 31. |
147779C1
|
[2] |
HYDRAULIC HOSE
|
IH
HOSE ASSEMBLY - 1/4 ID x 145 inch (6 x 3 683 MM)
|
| 32. |
M74461
|
[2] |
SPACER,26.6mm ID x 33.4mm OD x 19mm L
|
IH
- 1-3/64 ID x 3/4 inch (27 x 19 MM)
|
| 33. |
110928C1
|
[1] |
|
P
PIN - clevis
|
| 34. |
299407C1
|
[2] |
CLAMP
|
IH
- tube Superseded by part number: 86010402
|
| 35. |
533959R1
|
[3] |
CABLE TIE,.135" x 11"
|
IH
STRAP - tie Superseded by part number: 529070
|
| 38. |
1336822C1
|
[1] |
ELBOW
|
CAS
- 90 degrees, 3/8 inch PT
|
