| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

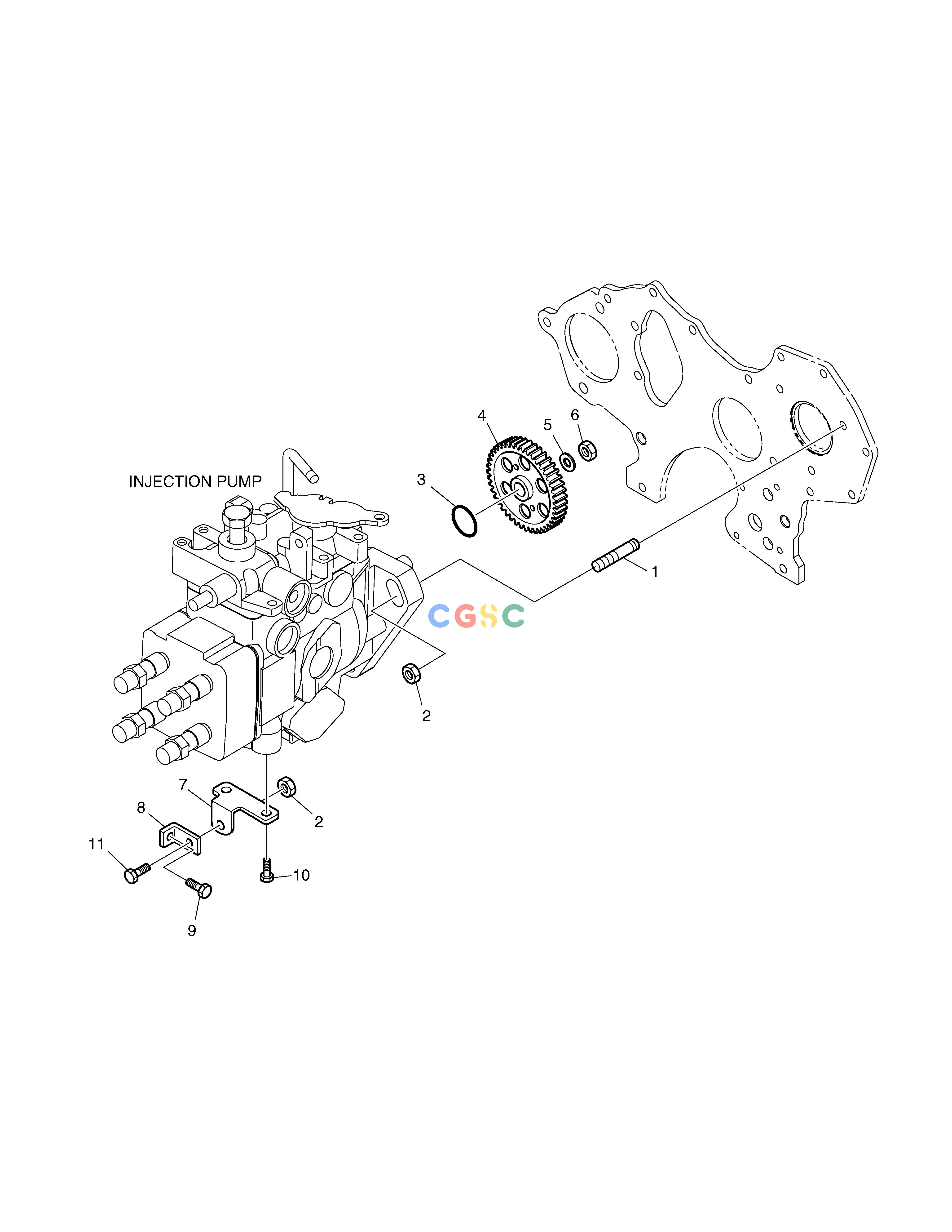

| -. | K1019202 | [-] | FUEL PUMP MOUNTING | |
| 1. | K1019203 | [3] | BOLT;STUD | |
| 10. | K1019211 | [2] | BOLT | |
| 11. | K1019171 | [1] | SCREW | |
| 2. | K1019179 | [4] | NUT | |
| 3. | K1019204 | [1] | O-RING | |
| 4. | K1019205 | [1] | GEAR;INJ PUMP | |
| 5. | K1019206 | [1] | WASHER;LOCK | |
| 6. | K1019207 | [1] | NUT | |
| 7. | K1019208 | [1] | BRACKET | |
| 8. | K1019209 | [1] | BRACKET | |
| 9. | K1019210 | [1] | SCREW |
