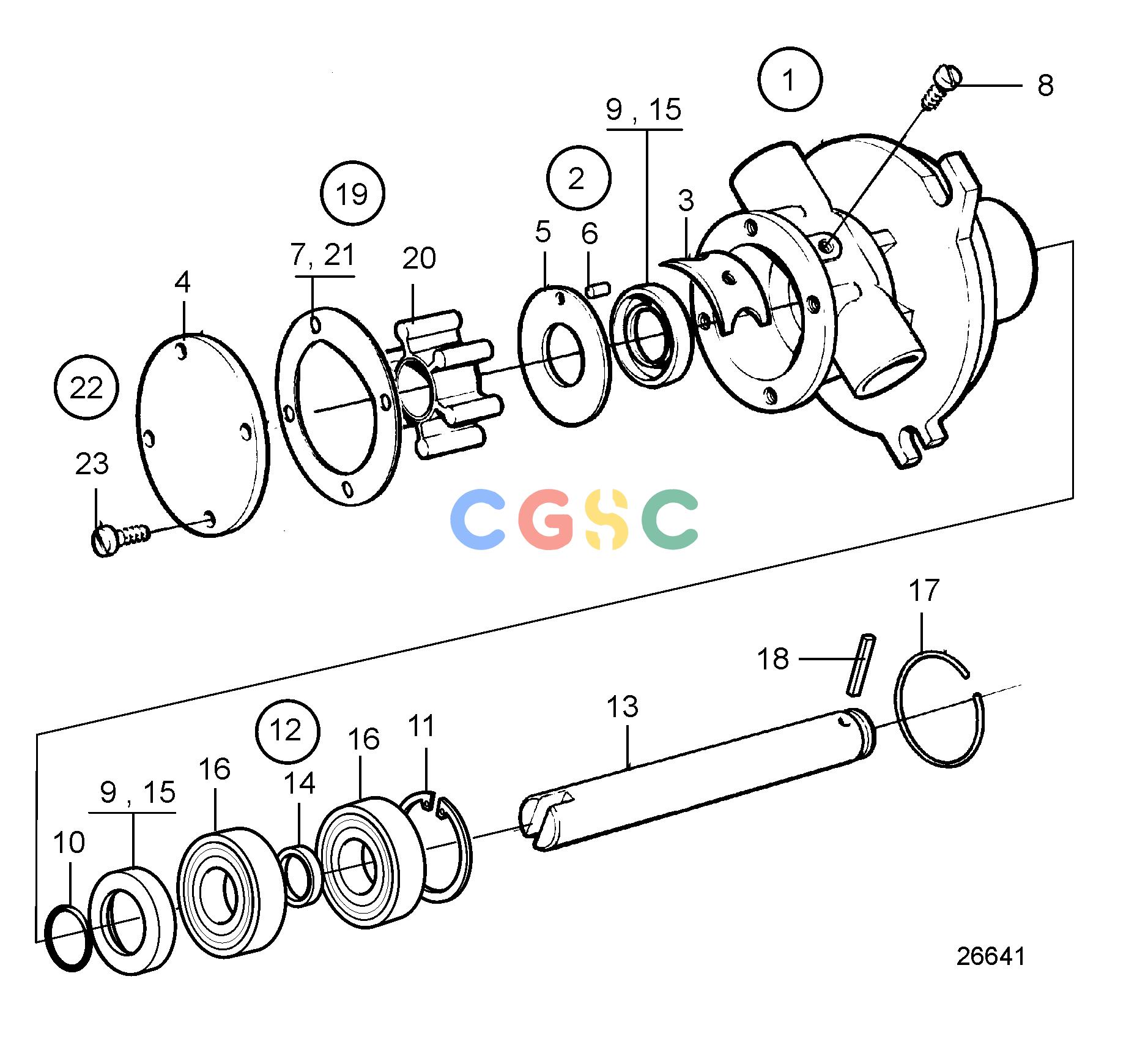

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TCooling SystemSea Water Pump: 861009EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1033 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861009
|
[1] |
Sea water pump
|
|
| 2. |
21951368
|
[1] |
Wear kit
|
|
| 3. |
833416
|
[1] |
Pump cam
|
|
| 4. |
833992
|
[1] |
Cap
|
|
| 5. |
840771
|
[1] |
Wear washer
|
|
| 6. |
826239
|
[1] |
Pin
|
|
| 7. |
833994
|
[1] |
Gasket
|
|
| 8. |
804693
|
[1] |
Screw
|
|
| 9. |
833996
|
[1] |
Sealing ring
|
|
| 10. |
925055
|
[1] |
O-ring
|
|
| 11. |
|
|
|
|
| 12. |
21951414
|
[1] |
Shaft kit
|
|
| 13. |
840773
|
[1] |
Shaft
|
|
| 14. |
840772
|
[1] |
Spacer sleeve
|
|
| 15. |
833996
|
[1] |
Sealing ring
|
|
| 16. |
181717
|
[2] |
Ball bearing
|
|
| 17. |
914515
|
[1] |
Snap ring
|
|
| 18. |
973639
|
[1] |
Spring pin, spring pin
|
|
| 19. |
21951342
|
[1] |
Impeller kit
|
|
| 20. |
|
|
|
|
| 21. |
833994
|
[1] |
Gasket
|
|
| 22. |
21951302
|
[1] |
Screw kit
|
|
| 23. |
21643469
|
[4] |
Hexagon screw
|
|
