久保田零件查询T01401 MUFFLER ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
181 次

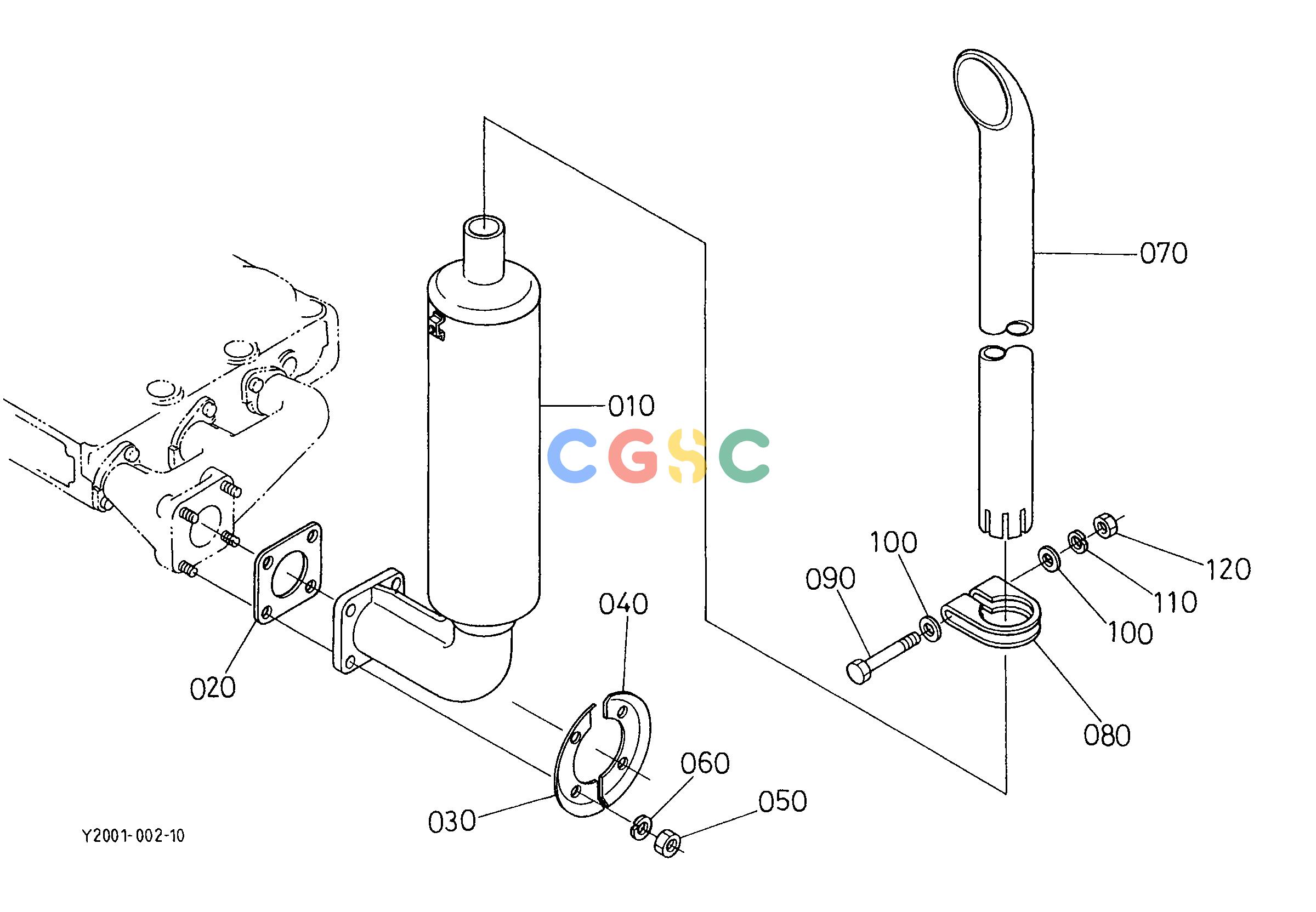

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1575112010
|
[1] |
COMP.MUFFLER
|
5.9400(lbs); 2.700
|
| 020. |
1526312370
|
[1] |
GASKET MUFFLER
|
0.0330(lbs); 0.015
|
| 030. |
6641654520
|
[1] |
COVER MUFFLER LH
|
0.0660(lbs); 0.030
|
| 040. |
6641654530
|
[1] |
COVER MUFFLER RH
|
0.0550(lbs); 0.025
|
| 050. |
0215650080
|
[4] |
NUT
|
0.0088(lbs); 0.004
|
| 060. |
0451250080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 070. |
6780053410
|
[1] |
PIPE MUFFLER
|
1.2540(lbs); 0.570
|
| 080. |
6780053420
|
[1] |
BAND PIPE
|
0.0880(lbs); 0.040
|
| 090. |
0115350865
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 100. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 110. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 120. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
