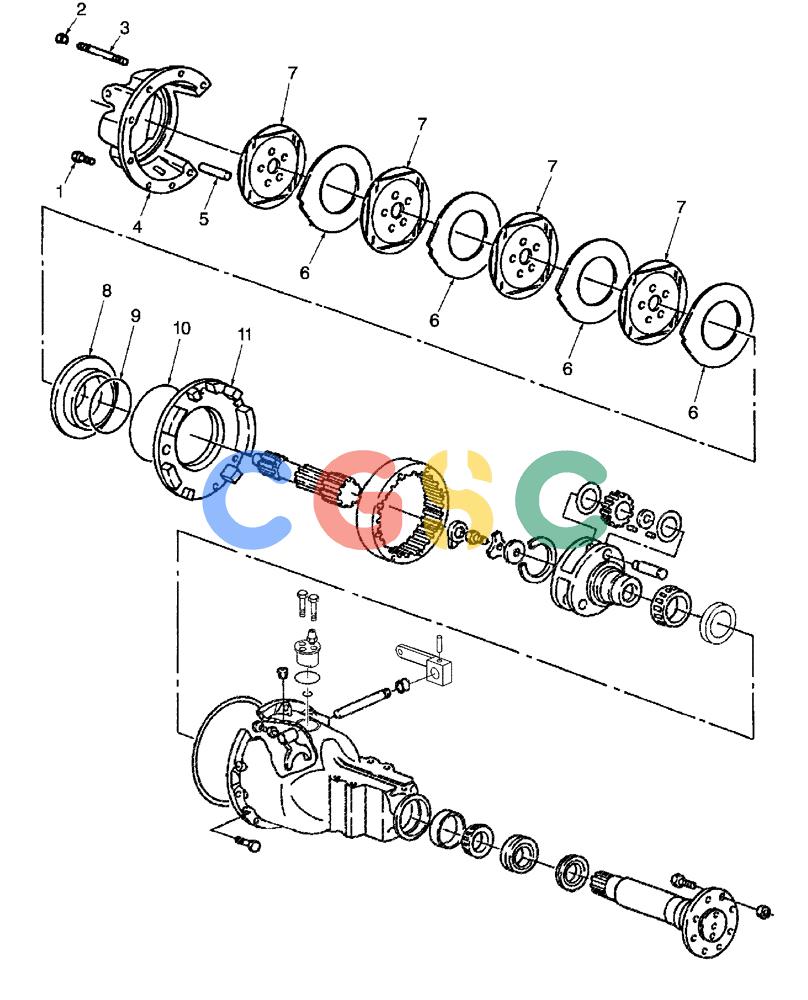

| 1. | 86513181 | [12] | SCREW,Hex, 1/2" - 13 x 4 3/4", Gr 8 | IMOCap, HH, G8, 1/2"-13 x 4-3/4", Years: -14-JAN-98 |
| 1. | 86539458 | [12] | BOLT,Hex, 9/16" - 12 x 5", Gr 8 | IMOCap, HH, G8, 9/16"-12 x 5", Start Year: 15-JAN-98 |
| 1. | 86597537 | [4] | BOLT | IMOCap, HH, G8, 0.56 x 7.25" |
| 2. | 86539262 | [4] | NUT,1/2"-20, Gr 8 | NH, Years: -14-JAN-98 |
| 2. | 86539263 | [4] | NUT,9/16"-18, G8 | IMOG8, 9/16"-18, Start Year: 15-JAN-98 |
| 3. | 377525S | [4] | STUD | FOR1/2" - 13 - 20 x 7.75", Years: -14-JAN-98 Superseded by part number: 83417087 |
| 3. | 86536748 | [4] | STUD | BAS9/16" -12 - 18 x 7.88", Start Year: 15-JAN-98 |
| 4. | 83955517 | [1] | HOUSING | FORBrake, Inner RH, Years: -14-JAN-98 |
| 4. | 83955518 | [1] | HOUSING | BASBrake, Inner LH, Years: -14-JAN-98 |
| 4. | 86536752 | [1] | HOUSING | BASBrake, Inner RH, Start Year: 15-JAN-98 Superseded by part number: 87367563 |
| 4. | 86536753 | [1] | HOUSING | BASBrake, Inner LH, Start Year: 15-JAN-98 Superseded by part number: 87367566 |
| 5. | 81802548 | [2] | PIN | BAS |
| 6. | 87308018 | [8] | BRAKE DISC,124mm ID x 210mm OD x 4.57mm Thk | IMODisc, Intermediate |
| 7. | 87305713 | [8] | BRAKE DISC,55.88mm ID x 204.75mm OD x 4.8mm Thk | IMODisc Assy., Kevlar |
| 8. | 82030231 | [2] | BRAKE DISC | IMOPiston, Rear Brake |
| 9. | 81875253 | [2] | SEAL,129.29mm ID x 145.3mm OD x 3.7mm Thk | FORSeal, Rear Brake |
| 10. | 87302761 | [2] | O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro | IMOSeal, Rear Brake, O-Ring -253, 7.484" ID x .139" Thk |
| 11. | 82030236 | [1] | HOLDER | IMOHousing, Rear Brake, Outer RH, Years: -14-JAN-98 |
| 11. | 81874466 | [1] | HOUSING | BASRear Brake, Outer LH, Years: -14-JAN-98 Superseded by part number: 82030235 |
| 11. | 82030235 | [1] | HOUSING | IMOHousing, Brake, Outer LH, Start Year: 15-JAN-98 |
