约翰迪尔零件查询600 - AMT MAIN WIRING HARNESSEPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览： 145 次

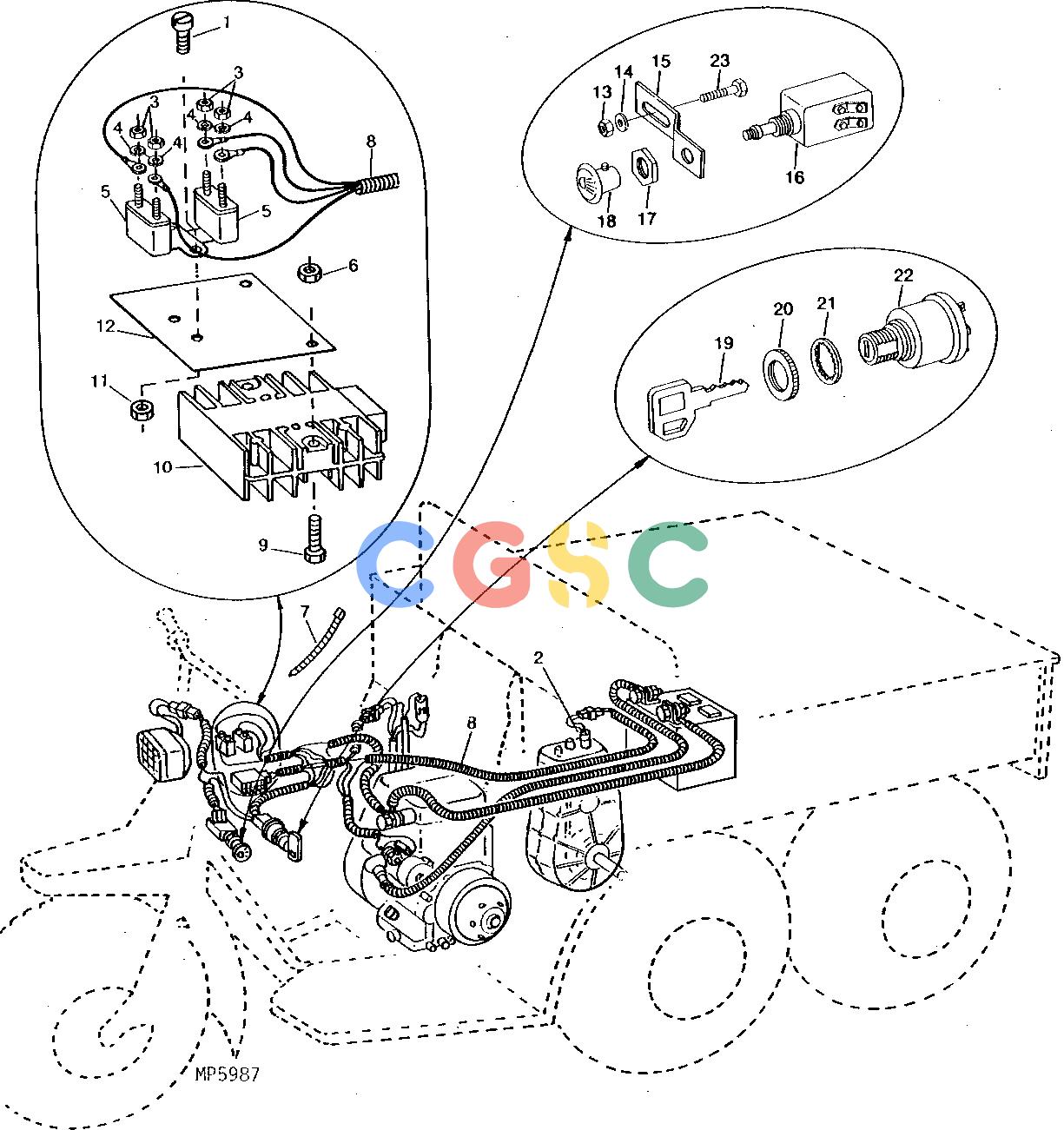

Pos.	Part No	Qty	Parts name	Comments
1.	19M8146	[2]	Screw	M5 X 16
2.	AM877735	[1]	Switch	(NEUTRAL START) (SUB FOR RE28083)
3.	14H631	[4]	Nut	0.190"
4.	12M7060	[4]	Washer	5.300 MM
5.	AR28403	[2]	Circuit Breaker	20 AMP
6.	14M7165	[2]	Lock Nut	M6
7.	R44302	[AR]	Tie Band	4.6 X 171 MM (0.18" X 6.75")
7.	H77698	[AR]	Tie Band	4.7 X 360 MM (0.18" X 14.2")
8.	RE28081	[1]	Wiring Harness
9.	19M7160	[2]	Cap Screw	M6 X 30
10.	M70121	[1]	Voltage Regulator	NLA; SUB FOR RE28144
11.	14M7360	[2]	Lock Nut	M5
12.	W40185	[1]	Bracket	(SUB FOR R90806)
13.	14M7166	[1]	Lock Nut	M8
14.	24M7207	[1]	Washer	8.400 X 24 X 2 MM
15.	R92345	[1]	Bracket
16.	AM101021	[1]	Switch
17.	M83733	[1]	Nut
18.	AM31210	[1]	Knob
19.	AM131841	[1]	Key	(SUB FOR AM101600)
20.	M110159	[2]	Nut	(SUB FOR M70699)
21.	M91167	[1]	Spring Washer
22.	AM101561	[1]	Switch	(AM107076 BOOT KIT IS AVAILABLE FOR SERVICE. INCLUDES CAP, BOOT, RIVETS AND IGNITION KEY.)
23.	19M7881	[1]	Screw	M8 X 20
