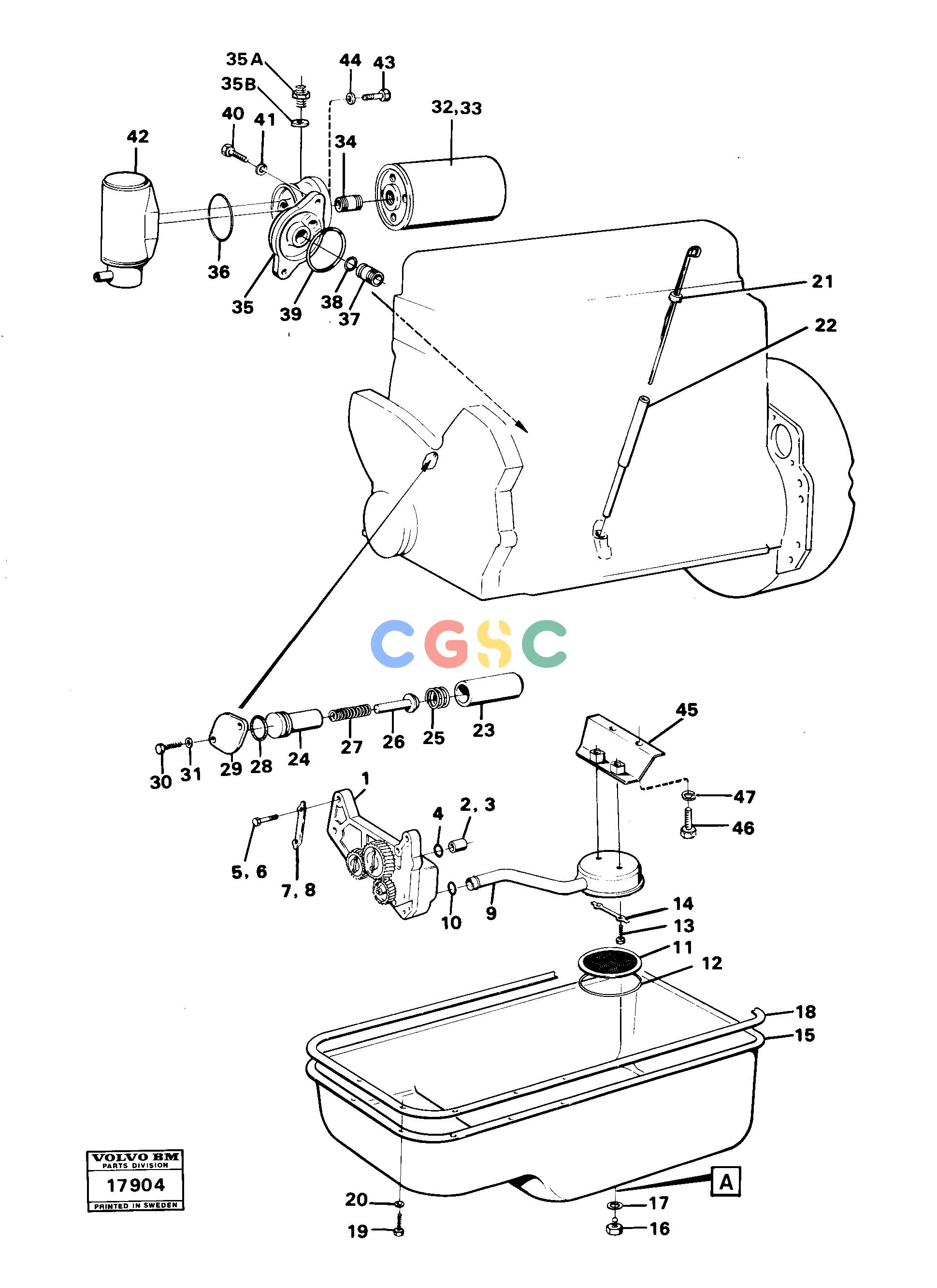

沃尔沃零件查询4300 Lubricating oil system4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
577 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
VOE785577
|
[0001] |
Guide sleeve
|
|
| 37. |
VOE785816
|
[0001] |
Nipple
|
|
| 38. |
VOE955976
|
[0001] |
O-ring
|
|
| 39. |
VOE926040
|
[0001] |
O-ring
|
|
| 40. |
VOE955535
|
[0002] |
Hexagon screw
|
|
| 41. |
VOE955950
|
[0002] |
Toothed washer
|
|
| 42. |
VOE787062
|
[0001] |
Oil Cooler
|
|
| 43. |
VOE959240
|
[0002] |
Hex. socket screw
|
MO-50560
|
| |
VOE4804519
|
[0002] |
Screw
|
MO 50561-
|
| 44. |
VOE13940109
|
[0002] |
Lock washer
|
|
| 45. |
VOE787476
|
[0001] |
Bracket
|
|
| 3. |
VOE785623
|
[0001] |
Guide sleeve
|
|
| 46. |
VOE940113
|
[0002] |
Hexagon screw
|
|
| 47. |
VOE7191268
|
[0001] |
Lock washer
|
|
| 4. |
VOE955993
|
[0001] |
O-ring
|
|
| 5. |
VOE940186
|
[0003] |
Hexagon screw
|
|
| 6. |
VOE955526
|
[0001] |
Hexagon screw
|
|
| 1. |
|
[0001] |
Oil pump
|
MO-53299
|
| 7. |
VOE7015176
|
[0001] |
Tab washer
|
|
| 8. |
VOE7015260
|
[0001] |
Lock washer
|
|
| 9. |
VOE787469
|
[0001] |
Suction pipe
|
|
| 10. |
VOE942089
|
[0001] |
O-ring
|
|
| 11. |
VOE414621
|
[0001] |
Wire gauze
|
|
| 12. |
VOE118125
|
[0001] |
Snap ring
|
|
| 13. |
VOE940113
|
[0002] |
Hexagon screw
|
|
| 14. |
VOE7191268
|
[0001] |
Lock washer
|
|
| 15. |
VOE787467
|
[0001] |
Oil pan
|
|
| 16. |
VOE192538
|
[0001] |
Magnetic plug
|
PROD NO 16100, 16106,
|
| |
|
|
None
|
16300, 16305, 16307
|
| |
|
|
None
|
|
| 17. |
VOE13947627
|
[0001] |
Plane gasket
|
PROD NO 16100, 16106,
|
| |
|
|
None
|
16300, 16305, 16307
|
| 18. |
VOE11030107
|
[0001] |
Gasket
|
|
| 19. |
VOE13940159
|
[0026] |
Screw
|
MO -37988
|
| |
VOE940186
|
[0026] |
Hexagon screw
|
MO 37989-
|
| 20. |
VOE13941907
|
[0026] |
Washer
|
|
| 21. |
VOE787477
|
[0001] |
Dipstick
|
|
| 22. |
VOE785606
|
[0001] |
Tube
|
|
| 23. |
VOE785792
|
[0001] |
Valve housing
|
|
| 24. |
VOE787068
|
[0001] |
Housing
|
|
| 25. |
VOE785794
|
[0001] |
Spring
|
|
| |
|
[0001] |
Oil pump
|
MO 53300-
|
| 26. |
VOE421125
|
[0001] |
Valve
|
|
| 27. |
VOE421126
|
[0001] |
Spring
|
|
| 28. |
VOE925059
|
[0001] |
O-ring
|
|
| 29. |
VOE787069
|
[0001] |
Thrust washer
|
|
| 30. |
VOE955513
|
[0002] |
Hexagon screw
|
|
| 31. |
VOE13941906
|
[0002] |
Washer
|
|
| 32. |
VOE4804651
|
[0001] |
Oil filter
|
MO - 59882
|
| 33. |
VOE6644207
|
[0001] |
Gasket
|
|
| |
VOE4804406
|
[0001] |
Oil filter
|
MO 59883 -
|
| |
|
|
None
|
|
| |
|
[0001] |
Gasket
|
|
| 34. |
VOE781732
|
[0001] |
Nipple
|
MO - 59882
|
| |
VOE4804518
|
[0001] |
Nipple
|
MO 59883 -
|
| 35. |
VOE785798
|
[0001] |
Bracket
|
MO - 50560
|
| |
VOE4804523
|
[0001] |
Bracket
|
MO 50561 -59882
|
| |
VOE4804521
|
[0001] |
Bracket
|
MO 59883-
|
| |
VOE960631
|
[0001] |
Plug
|
MO 50561 - 59882
|
| |
VOE957179
|
[0001] |
Gasket
|
MO 50561 - 59882
|
| 35A. |
VOE13963948
|
[0001] |
Nipple
|
MO 59883 -
|
| 35B. |
VOE957179
|
[0001] |
Gasket
|
MO 59883 -
|
| 36. |
VOE926039
|
[0001] |
O-ring
|
|
