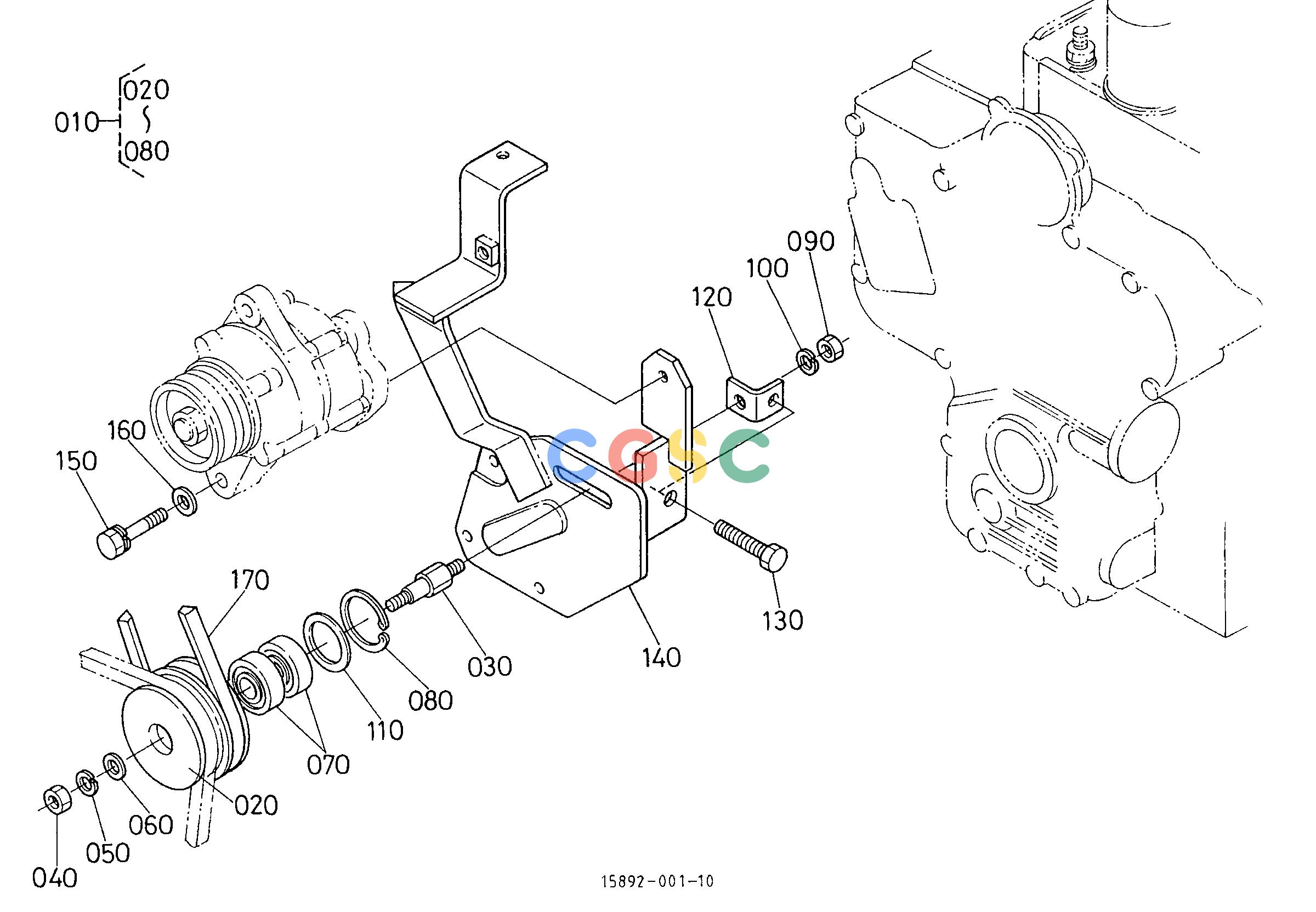

久保田零件查询T01800 TENSION PULLEY [CA] ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
794 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6782064100
|
[1] |
ASSY PULLEY TENSION
|
1.8700(lbs); 0.850
|
| 020. |
6782064113
|
[1] |
PULLEY TENSION
|
1.2760(lbs); 0.580
|
| 030. |
6782064125
|
[1] |
SHAFT PULLEY
|
0.2398(lbs); 0.109
|
| 040. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 050. |
0451260100
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 060. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 070. |
0814106301
|
[2] |
BEARING BALL
|
0.1100(lbs); 0.050
|
| 080. |
0461100370
|
[1] |
CIR CLIP INTERNAL
|
0.0088(lbs); 0.004
|
| 090. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 100. |
0451260100
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 110. |
6782064230
|
[1] |
COLLAR
|
0.0176(lbs); 0.008
|
| 120. |
6782064140
|
[1] |
RETAINER SPRING
|
0.1540(lbs); 0.070
|
| 130. |
6782064150
|
[1] |
BOLT ADJUSTING
|
0.0770(lbs); 0.035
|
| 140. |
6642664130
|
[1] |
STAY PULLEY
|
2.9480(lbs); 1.340
|
| 150. |
0113351045
|
[1] |
BOLT
|
0.0748(lbs); 0.034
|
| 160. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 170. |
6642664200
|
[1] |
V BELT
|
0.0880(lbs); 0.040
|
| 170. |
6642664202
|
[1] |
V BELT
|
0.1100(lbs); 0.050
|
