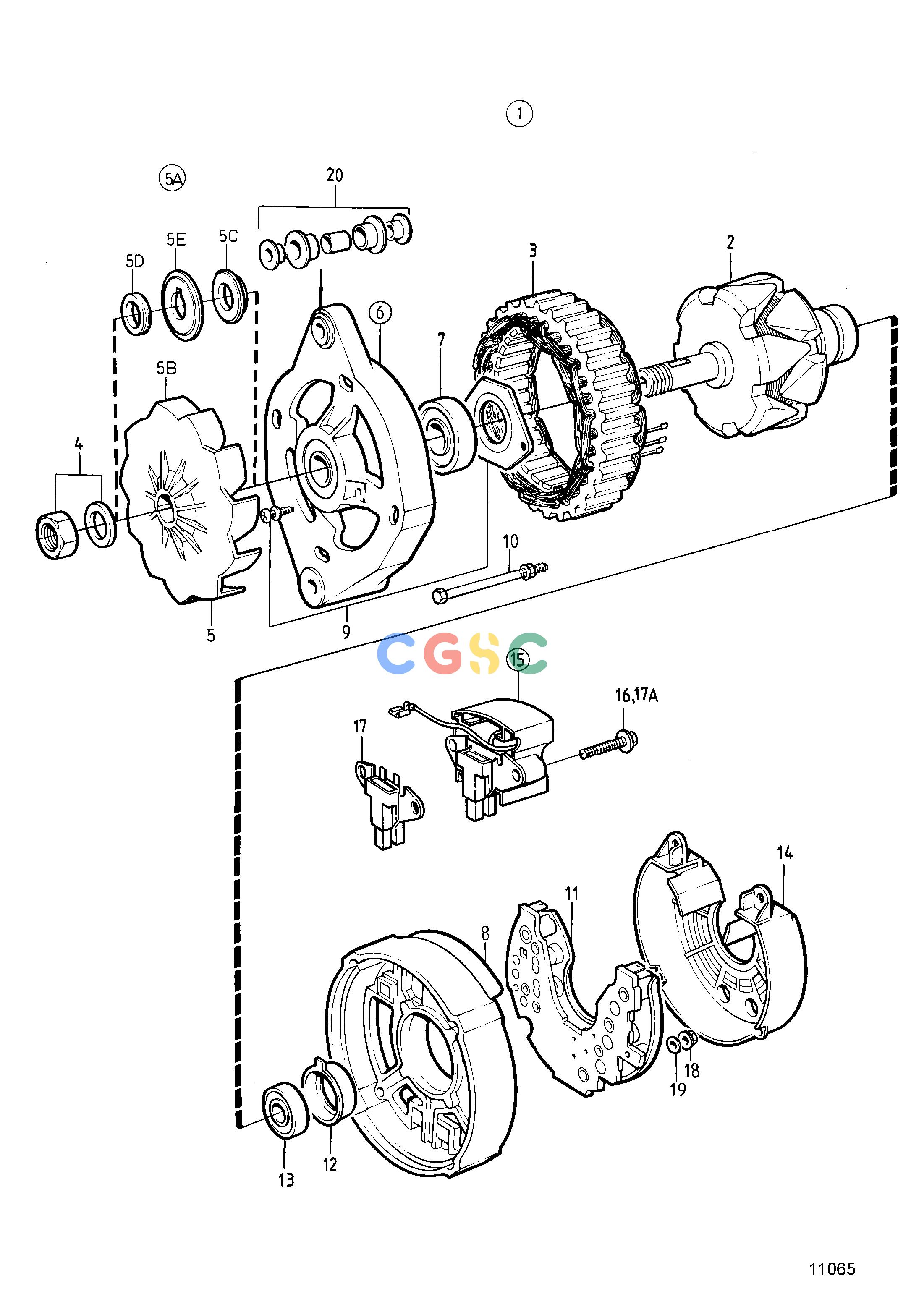

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemAlternator: 858838EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
768 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858838
|
[1] |
Alternator
|
For 12 voltage electric system., Also available as an exchange part., 14V 50A
|
| 2. |
|
|
|
|
| 3. |
859421
|
[1] |
Stator
|
|
| 4. |
6212688
|
[1] |
Mounting kit
|
|
| 5. |
840621
|
[1] |
Fan
|
Repl by 860281
|
| 5A. |
860281
|
[1] |
Fan kit
|
|
| 5B. |
|
|
|
|
| 5C. |
862897
|
[1] |
Spacer
|
|
| 5D. |
860284
|
[1] |
Spacer
|
|
| 5E. |
860283
|
[1] |
Washer
|
|
| 6. |
|
|
|
|
| 7. |
860432
|
[1] |
Ball bearing
|
|
| 8. |
|
|
|
|
| 9. |
840625
|
[1] |
Mounting kit
|
|
| 10. |
840626
|
[1] |
Screw kit
|
|
| 11. |
1698689
|
[1] |
Diode bridge
|
|
| 12. |
840629
|
[1] |
Bearing race
|
|
| 13. |
864351
|
[1] |
Ball bearing
|
|
| 14. |
840631
|
[1] |
Protecting casing
|
|
| 15. |
872367
|
[1] |
Regulator kit, governor with brush holder
|
(858840)
|
| 15. |
|
|
|
|
| 16. |
859312
|
[6] |
Screw
|
|
| 17. |
840632
|
[1] |
Brush retainer
|
|
| 17A. |
859312
|
[2] |
Screw
|
|
| 18. |
955779
|
[1] |
Hexagon nut
|
(M4) w
|
| 18. |
965483
|
[2] |
Flange nut
|
(M5) d+, B-
|
| 18. |
945407
|
[1] |
Flange nut
|
(M6) B+
|
| 19. |
941904
|
[1] |
Spring washer
|
(For M4) W
|
| 20. |
840634
|
[1] |
Guide
|
|
