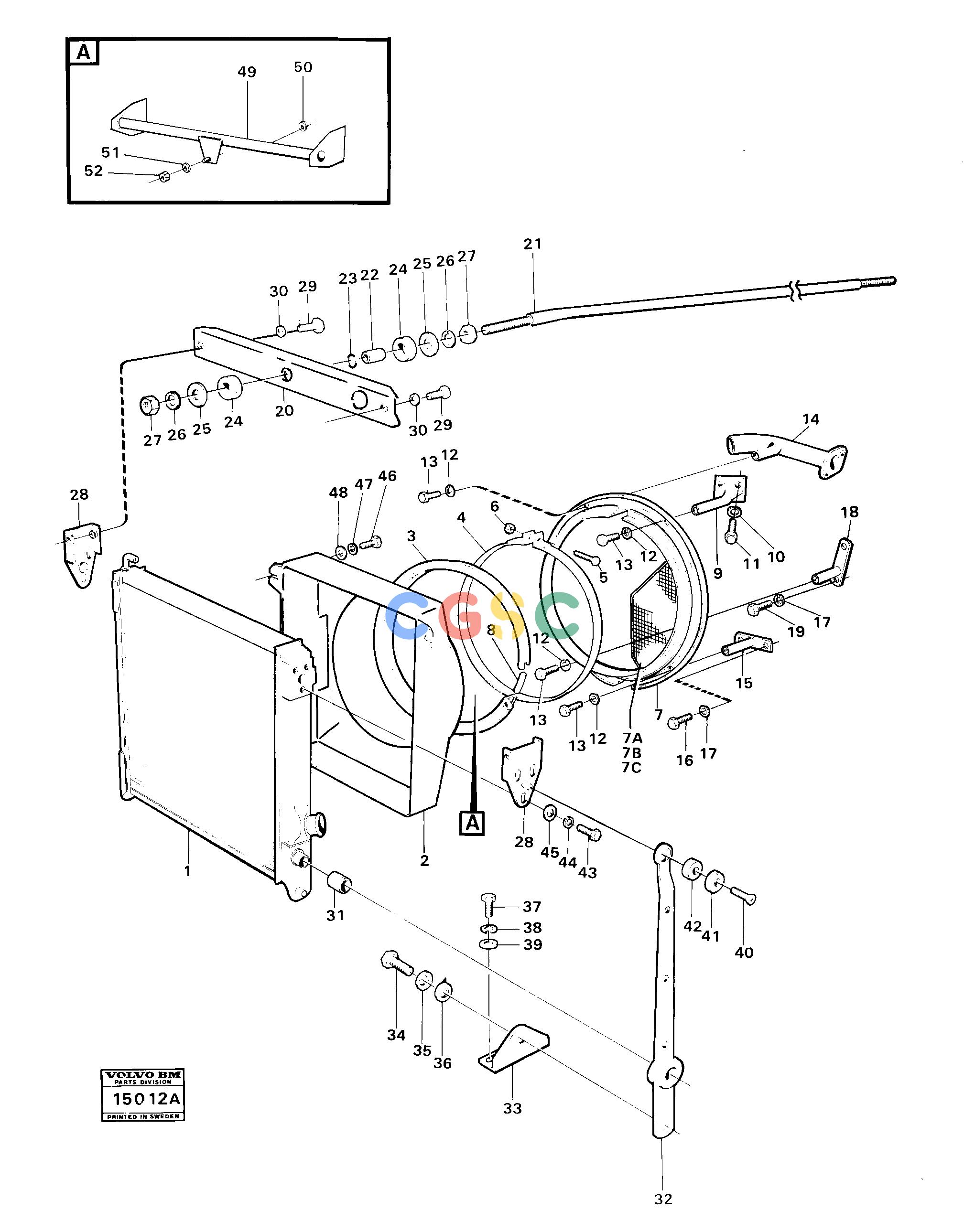

沃尔沃零件查询4300 Radiator4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
740 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE956086
|
[0001] |
Cross recessed screw
|
|
| |
|
|
None
|
|
| 50. |
VOE941262
|
[0001] |
Grommet
|
|
| 51. |
VOE13941904
|
[0001] |
Washer
|
|
| 52. |
VOE955797
|
[0001] |
Hexagon nut
|
|
| 6. |
VOE13963104
|
[0001] |
Lock nut
|
|
| 7. |
VOE4804507
|
[0001] |
Fan ring
|
SER NO -3060
|
| 7. |
VOE4947513
|
[0001] |
Fan ring
|
|
| |
|
|
None
|
SER NO - 4648
|
| |
VOE4947513
|
[0001] |
Fan ring
|
SER NO 4649 -
|
| 7A. |
VOE4947402
|
[0001] |
Protection
|
SER NO 4649 -
|
| 7B. |
VOE955270
|
[0003] |
Hexagon screw
|
SER NO 4649 -
|
| 7C. |
VOE60110304
|
[0003] |
Washer
|
SER NO 4649 -
|
| 8. |
VOE475450
|
[0001] |
Connector
|
|
| 9. |
VOE787906
|
[0001] |
Anchorage
|
SER NO -2451
|
| |
VOE4804490
|
[0001] |
Fan ring attachment
|
SER NO 2452-
|
| 10. |
VOE13942336
|
[0002] |
Spring washer
|
SER NO -2451
|
| |
VOE941908
|
[0002] |
Spring washer
|
SER NO 2452-
|
| 11. |
VOE13940114
|
[0002] |
Screw
|
SER NO -2451
|
| |
VOE13970957
|
[0002] |
Hexagon screw
|
SER NO 2452-
|
| 12. |
VOE13960141
|
[0004] |
Washer
|
|
| 1. |
VOE4804234
|
[0001] |
Radiator
|
|
| 13. |
VOE955293
|
[0004] |
Hexagon screw
|
|
| 14. |
|
[0001] |
Pipe
|
|
| 15. |
VOE787908
|
[0001] |
Anchorage
|
|
| 16. |
VOE13940114
|
[0002] |
Screw
|
|
| 17. |
VOE13942336
|
[0004] |
Spring washer
|
|
| 18. |
VOE787675
|
[0001] |
Anchorage
|
|
| 19. |
VOE955536
|
[0002] |
Hexagon screw
|
|
| 2. |
VOE787858
|
[0001] |
Fan shroud
|
|
| 20. |
VOE787669
|
[0001] |
Cross member
|
|
| 21. |
VOE4925779
|
[0001] |
Link rod
|
PROD NO 33100, 33105
|
| |
VOE4929482
|
[0001] |
Link rod
|
PROD NO 33106, 33107
|
| 22. |
VOE252202
|
[0002] |
Spacer tube
|
|
| 23. |
VOE925059
|
[0002] |
O-ring
|
|
| 24. |
VOE252203
|
[0004] |
Washer
|
|
| |
VOE787858
|
[0001] |
Fan shroud
|
|
| 25. |
VOE191940
|
[0004] |
Washer
|
|
| 26. |
VOE941912
|
[0004] |
Spring washer
|
|
| 27. |
VOE955785
|
[0004] |
Hexagon nut
|
|
| 28. |
VOE787654
|
[0002] |
Retainer
|
|
| 29. |
VOE946471
|
[0002] |
Flange screw
|
|
| 3. |
VOE475449
|
[0001] |
Sealing strip
|
|
| 30. |
VOE941908
|
[0002] |
Spring washer
|
|
| 31. |
VOE363345
|
[0002] |
Rubber cushion
|
|
| 32. |
VOE787890
|
[0002] |
Attaching arm
|
|
| 33. |
VOE787784
|
[2] |
Anchorage
|
|
| 34. |
VOE13970991
|
[2] |
Hexagon screw
|
|
| 35. |
VOE961390
|
[2] |
Disc spring
|
|
| 36. |
VOE930844
|
[2] |
Plain washer
|
|
| 37. |
VOE970945
|
[4] |
Hexagon screw
|
|
| 38. |
VOE941908
|
[6] |
Spring washer
|
|
| 39. |
VOE13960143
|
[4] |
Washer
|
|
| 4. |
VOE1544654
|
[0001] |
Tensioning band
|
|
| 40. |
VOE956209
|
[2] |
Cross recessed sunk screw
|
|
| 41. |
VOE787889
|
[2] |
Washer
|
|
| 42. |
VOE787653
|
[2] |
Rubber bushing
|
|
| 43. |
VOE13955294
|
[6] |
Screw
|
|
| 44. |
VOE13941907
|
[6] |
Washer
|
|
| 45. |
VOE13960141
|
[6] |
Washer
|
|
| 46. |
VOE955293
|
[2] |
Hexagon screw
|
|
| 47. |
VOE13941907
|
[0002] |
Washer
|
|
| 48. |
VOE13960141
|
[0002] |
Washer
|
|
| 49. |
|
[0001] |
Stay
|
|
