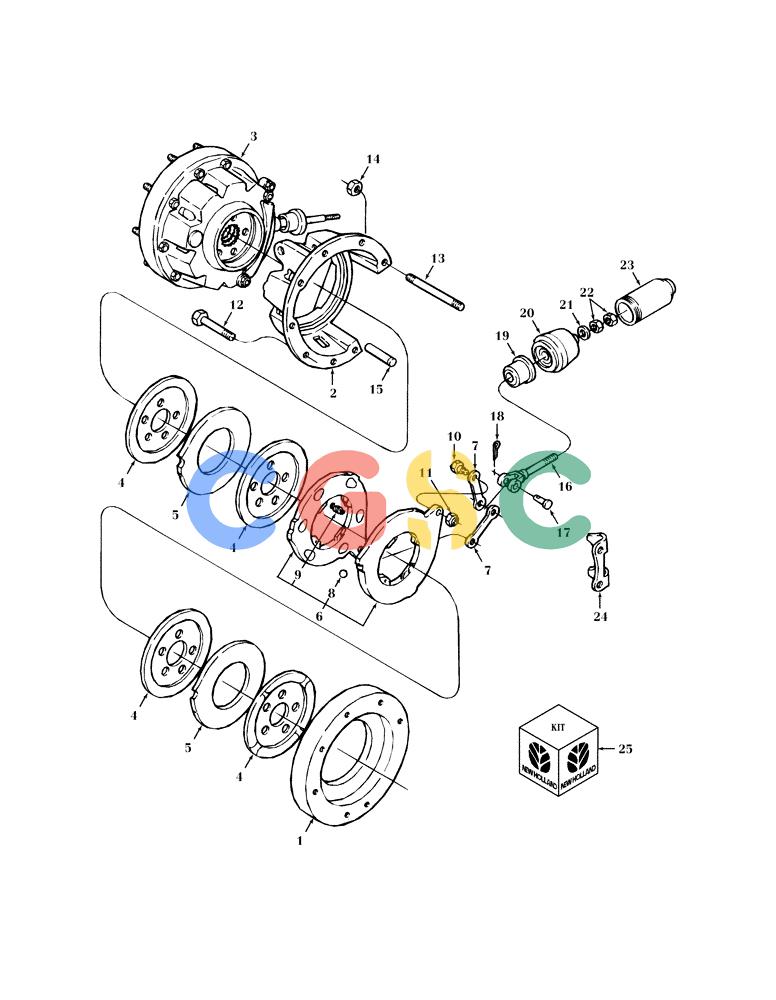

| 1. | 83964342 | [2] | HOUSING | BASRear Brake, Outer, 4 & 5 Plate |
| 1. | E4NN2A098CA | [2] | HOUSING | FORRear Brake, Outer, 3 Plate Superseded by part number: D9NN2A098AA, 83955519 |
| 2. | 83955514 | [1] | HOUSING | FORRear Brake, R.H., Inner, 3 & 4 Plate |
| 2. | E8NN2N099AA | [1] | HOUSING | FORRear Brake, R.H., Inner, 5 Plate Superseded by part number: 83977190 |
| 3. | E4NN2N100CA | [1] | HOUSING | FORRear Brake, L.H., Inner, 3 & 4 Plate Superseded by part number: 83955515, D9NN2N100AA |
| 3. | E8NN2N100AA | [1] | HOUSING | FORRear Brake, L.H., Inner, 5 Plate Superseded by part number: 83977191 |
| 4. | 83959626 | [6-10] | DISC,53.34mm ID x 224mm OD x 4.9mm Thk | BASAssy., Rear Brake, SM17WP, RECOMMENDED |
| 4. | E9NN2A097BA | [6-10] | BRAKE DISC | BASDisc Assy., Rear Brake, Gempco Superseded by part number: 87518036 |
| 5. | 83956598 | [1/2] | DISC,145.8mm ID x 230.1mm OD x 2.7mm Thk | BASBrake Intermediate, 3 & 4 Plate Brakes. |
| 5. | 82014455 | [3] | DISC | BASBrake Intermediate, 5 Plate Brakes. |
| 6. | 83956597 | [2] | ACTUATOR | BASDisc Assy, 3 & 4 Plate, Includes Ref. 7 thru 10øø |
| 6. | E8NN2N317BA | [2] | BRAKE ASSY. | FORDisc Assy., Actuating, 5 Plate Brakes, Includes: Ref 7 thru 10 Superseded by part number: 83977189 |
| 7. | 81818856 | [4] | LINK | FORBrake, Actuating Disc |
| 8. | 82979987 | [12] | BALL,7/8" | CURBrake, Actuating Disc 7/8" |
| 9. | 84814903 | [8] | SPRING | FORBrake, Actuating Disc Return |
| 10. | 81818828 | [4] | BOLT | FORPIN, PIVOT, Brake Actuating Disc |
| 11. | 80087309 | [2] | NUT | IMOJam, G2, 1/2"-20 Superseded by part number: 87309 |
| 12. | 87996 | [6] | BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5 | WIN |
| 13. | 83417087 | [2] | STUD,1/2"-13-20 x 7 3/4" | BAS |
| 14. | 280963 | [2] | NUT,Nut, 1/2-20 GR 5 ZND | NHG5, 1/2"-20 |
| 15. | 81802547 | [1] | PIN | FORTorque, Rear Brake |
| 16. | 81877008 | [2] | ROD | BASBrake Control, Concentric |
| 17. | 80755 | [1] | COTTER PIN,1/8" OD x 1" OAL | NHPIN, SPLIT (COTTER), 1/8" x 1" L |
| 18. | 83928668 | [1] | CLEVIS PIN,15.88mm OD x 34.92mm L | APIN, CLEVIS, 5/8" x 1-3/8" L |
| 19. | 82037652 | [2] | SEAL | FARDirt, Brake Slave Cylinder, Concentric |
| 20. | 81871294 | [2] | BRAKE CYLINDER | BASCylinder, Brake, Concentric |
| 21. | PL | [2] | PROCURE LOCALLY | BASWasher, 3/8" |
| 22. | 9706685 | [4] | NUT,M12 x 1.75, Cl 8 | NH |
| 23. | C5NN726A | [2] | COVER | FORCap Superseded by part number: 81801856 |
| 24. | 83992724 | [2] | RETAINER | FORBrake Actuator, Concentric |
| 25. | 83991346 | [2] | KIT | BASRepair, Brake Cylinder, Concentric |
