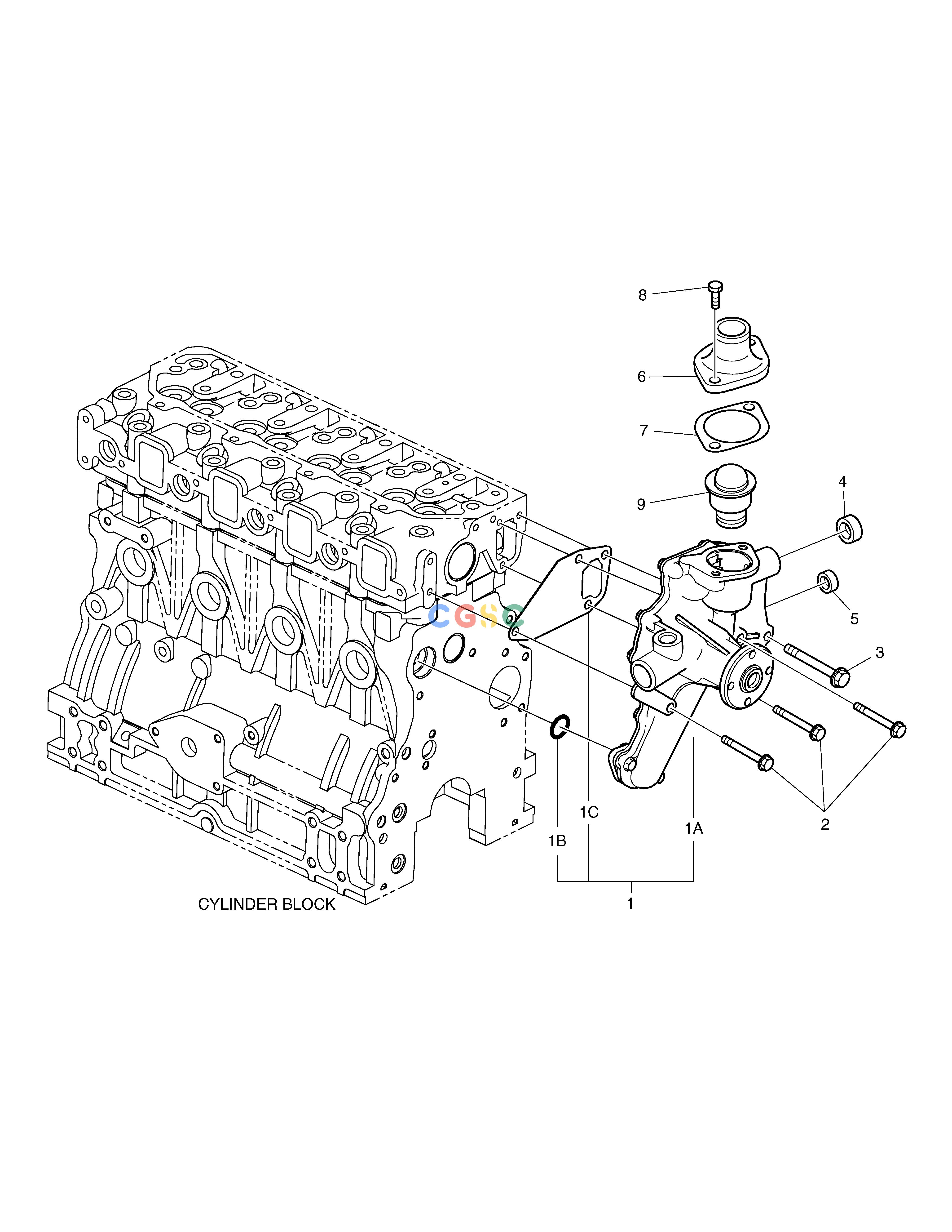

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1019347 | [-] | WATER PUMP | |
| 1. | K1019348 | [1] | KIT;WATER PUMP | |
| 1A. | K1019349 | [1] | PUMP;WATER | |
| 1B. | K1019350 | [1] | SEAL;O-RING | |
| 1C. | K1019351 | [1] | GASKET;WATER PUMP | |
| 2. | K1019352 | [3] | SCREW | |
| 3. | K1019234 | [1] | SCREW | |
| 4. | K1019353 | [3] | PLUG;PIPE | |
| 5. | K1019354 | [1] | PLUG;PIPE | |
| 6. | K1019345 | [1] | PIPE;WATER OUTLET | |
| 7. | K1019404 | [1] | GASKET;THERMOSTAT | |
| 8. | K1019346 | [2] | SCREW | |
| 9. | K1019181 | [1] | THERMOSTAT |
