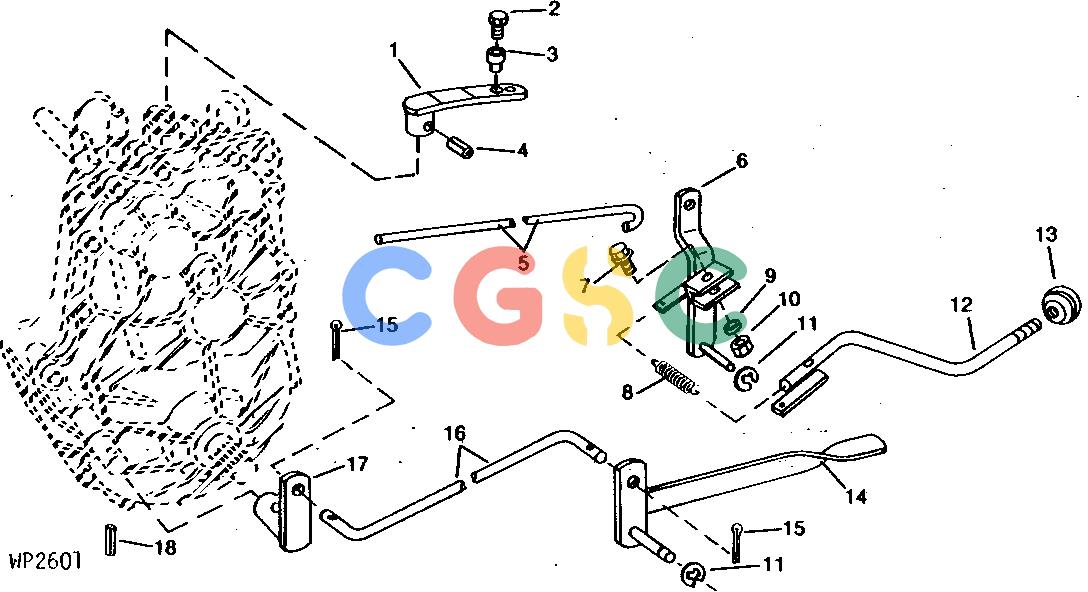

约翰迪尔零件查询600 - AMT SHIFT AND DIFFERENTIAL LOCK LINKAGE (AMT WIDTH 1290 MM)EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
598 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AW26976
|
[1] |
Lever
|
|
| 2. |
19M8425
|
[1] |
Cap Screw
|
|
| 3. |
W39957
|
[1] |
Bushing
|
|
| 4. |
34H314
|
[1] |
Spring Pin
|
|
| 5. |
W39958
|
[1] |
Linkage
|
|
| 6. |
RE28479
|
[1] |
Arm
|
|
| 7. |
19M7160
|
[1] |
Cap Screw
|
|
| 8. |
T17443
|
[1] |
Spring
|
|
| 9. |
24H1287
|
[1] |
Washer
|
|
| 10. |
14M7165
|
[1] |
Lock Nut
|
|
| 11. |
R30437
|
[2] |
Snap Ring
|
|
| 12. |
AM108561
|
[1] |
Lever
|
|
| 13. |
AL58296
|
[1] |
Knob
|
|
| 14. |
RE28872
|
[1] |
Pedal
|
|
| 15. |
11M7082
|
[2] |
Cotter Pin
|
|
| 16. |
R89684
|
[1] |
Linkage
|
|
| 17. |
AW27184
|
[1] |
Arm
|
|
| 18. |
34H331
|
[1] |
Spring Pin
|
|
