沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemElectrical Box and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
502 次

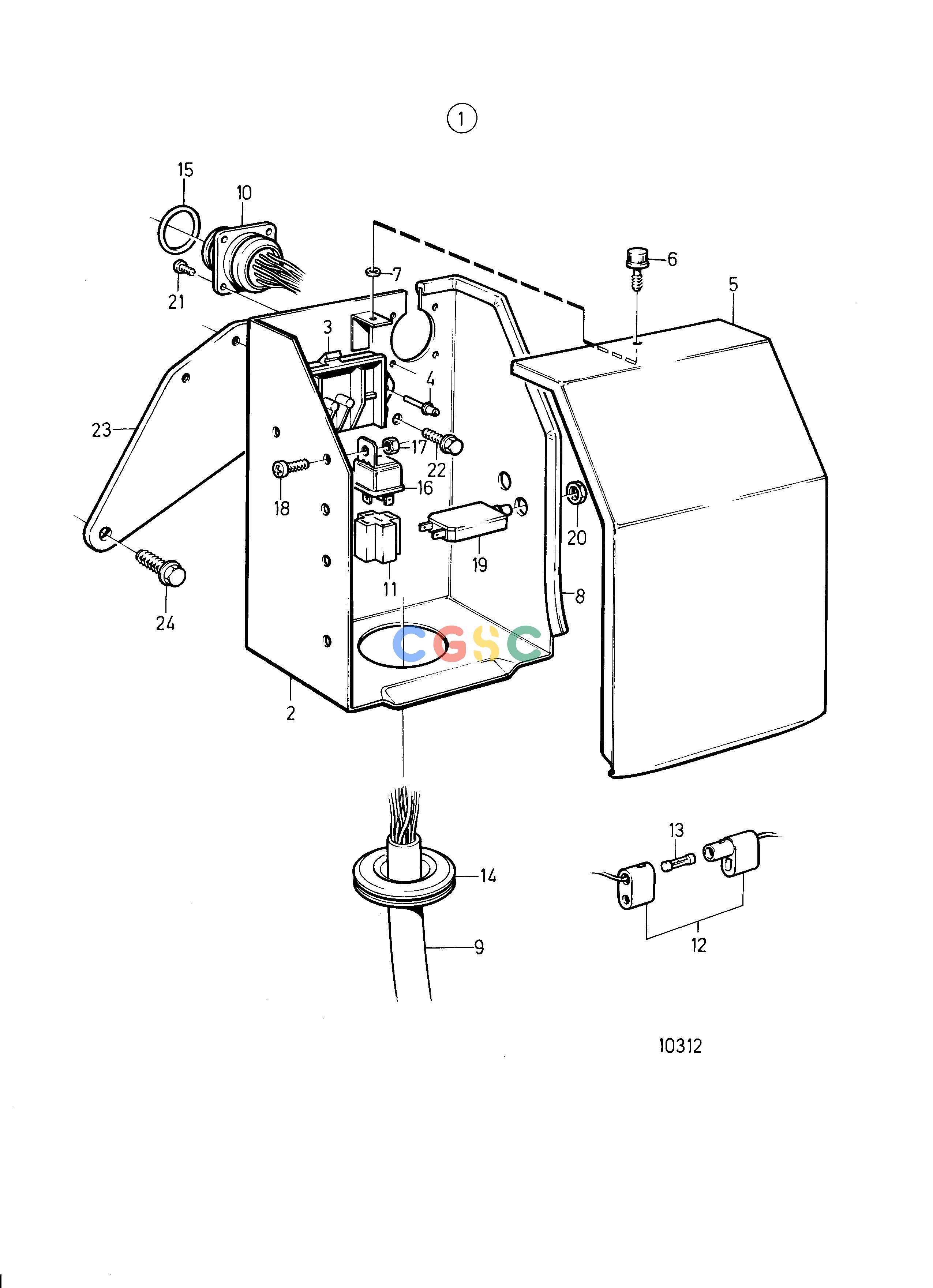

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
3825254
|
[1] |
Electrical distribut
|
|
| 3. |
1234048
|
[1] |
Bottom section
|
|
| 4. |
942670
|
[2] |
Blind rivet
|
|
| 5. |
846662
|
[1] |
Cap
|
|
| 6. |
846736
|
[1] |
Lock screw
|
|
| 7. |
925051
|
[1] |
O-ring
|
|
| 8. |
1214306
|
[1] |
Stop dog
|
|
| 9. |
860144
|
[1] |
Cable harness
|
|
| 10. |
846611
|
[1] |
Housing
|
|
| 11. |
1214948
|
[2] |
Housing
|
|
| 12. |
966334
|
[1] |
Fuse holder
|
|
| 13. |
11433
|
[1] |
Fuse
|
8A
|
| 14. |
943920
|
[1] |
Plug
|
|
| 15. |
846615
|
[1] |
Sealing ring
|
|
| 16. |
841177
|
[2] |
Relay
|
12V/40A
|
| 17. |
965483
|
[2] |
Flange nut
|
|
| 18. |
956074
|
[2] |
Cross recessed screw
|
|
| 19. |
966689
|
[2] |
Fuse
|
8A
|
| 20. |
|
|
|
|
| 21. |
955119
|
[4] |
Cross recessed screw
|
|
| 22. |
945358
|
[2] |
Flange screw
|
|
| 23. |
860192
|
[1] |
Bracket
|
|
| 24. |
946440
|
[2] |
Flange screw
|
|
