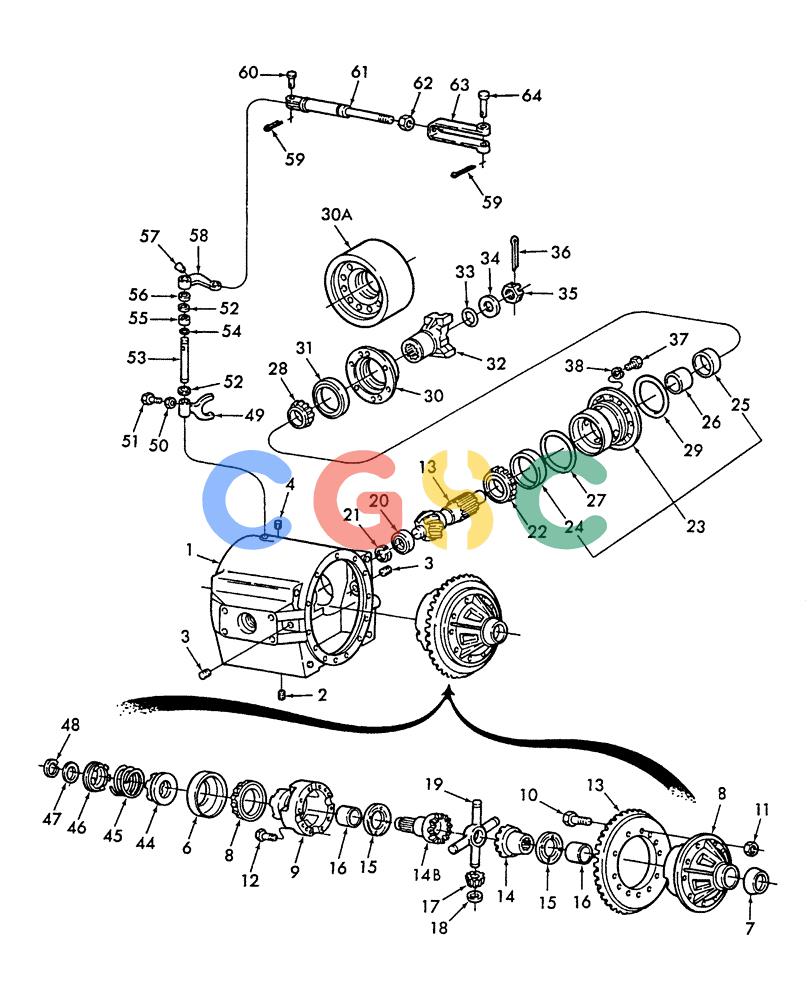

| 1. | 82959791 | [1] | SUMP | BASHousing Assy., Axle Differential, Center, Standard, Includes: Ref. 2 thru 6 |
| 1. | 82959782 | [1] | WOBBLE BOX | BASHousing Assy., Axle Differential, Center, D60CHD2, Includes: Ref. 2 thru 6 |
| 2. | 263136 | [1] | MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF | NHPLUG, MAGNETIC, , Drain, Transmission Sq. Soc, 3/4"-14 NPTF |
| 3. | 83909107 | [2] | DRAIN PLUG,Hdls Sq Skt, 3/4" - 14 | WINPLUG, DRAIN, , Standard 3/4"-14 |
| 4. | 21T4022 | [1] | BREATHER | GIVent, Axle Differential Housing |
| 6. | 81803420 | [1] | BEARING CUP,158.75mm OD x 15.88mm W | BASCup, Axle, Differential, R.H. |
| 7. | 510884 | [1] | ROLLER BEARING,66.69mm ID x 30.05mm W | WINCup & Cone Assy., Bearing, Axle Differential, R.H. |
| 8. | 81803413 | [1] | ROLLER BEARING,107.95mm ID x 21.44mm W | WINBEARING, ROLLER, TAPERED, Assy, Cone & Roller, Rear Axle, Differential |
| 9. | 81816247 | [1] | HOUSING | FORAssy, Gear, Axle Differential, 5.286:1 Ratio |
| 9. | 81816246 | [1] | HOUSING | BASCase Assy., Gear, Axle Differential 4.625:1 & 3.500:1 Ratio |
| 10. | 83417169 | [12] | NUT,1/2"-20, GA | BASNUT, LOCK, 1/2"-20, GA |
| 11. | 83957533 | [12] | SCREW,Pan HD, 1/2" - 20 x 1-5/8", Gr 8 | WINBOLT, HH, G8, 1/2"-20 x 1.62" |
| 12. | 83994579 | [8] | LOCK BOLT,1/2" - 13 x 2-7/8", Gr 8 | BASBOLT, LOCK, Hex, 1/2"-13 x 2 7/8", G8 |
| 13. | 81834053 | [1] | GEAR SET | FORMatched, 5.286:1, Counter Clockwise |
| 13. | D3NN3222A | [1] | GEAR SET | WINMatched, 5.286:1, Clockwise Superseded by part number: 81834018 |
| 13. | E2NN4209DA | [1] | GEAR SET | BASMatched, 4.625:1, Clockwise Superseded by part number: 83937179 |
| 13. | 81847145 | [1] | GEAR SET | FORMatched, 3.500:1, Clockwise |
| 14. | 81803445 | [2] | GEAR,38 Teeth | BASDifferential Side, Differential, 38 Teeth |
| 14B. | 81803451 | [1] | GEAR,27 Teeth | BASDifferential Lock Side, Differential Lock Models 27 Teeth |
| 15. | 81803424 | [2] | THRUST WASHER,76.2mm ID x 101.6mm OD x 1.58mm Thk | BASWasher, Gear, Thrust R.H., Differential |
| 16. | 81800471 | [2] | BUSHING,72.08mm ID x 75.21mm OD x 31.75mm L | WINGear Case R.H., Differential |
| 17. | 81728114 | [4] | PINION,9 Teeth | BASDifferential 9 Teeth |
| 18. | 83989915 | [4] | THRUST WASHER,1" x 2" x .060" Thk | WINWASHER, THRUST, , Axle Pinion, Differential 1" x 2" x .060" Thk |
| 19. | 81876885 | [1] | SPIDER,28.4mm Cap Dia, 179.3mm L | WINAxle, Differential |
| 20. | 81824478 | [1] | BEARING ASSY,30mm ID x 62mm OD x 19.05mm W | WINBearing Assy, Drive Pinion Pilot |
| 21. | 81803542 | [1] | RING,1.186" ID | BASDrive, Pinion Pilot Bearing 1.186" ID |
| 22. | 83992835 | [1] | BEARING ASSY | BASBEARING, ROLLER, TAPERED, Cup, Drive Pinion Gear, D60CHD2 Superseded by part number: 1968296C1 |
| 23. | D8NN4614DA | [1] | RETAINER | FORAssy., Standard, Includes: Ref. 24 & 25 Superseded by part number: 83949212 |
| 23. | D8NN4614CA | [1] | RETAINER | WINAssy., Oscillating/Concentric, Includes: Ref. 24 & 25 Superseded by part number: 83916752 |
| 24. | 86017029 | [1] | BEARING CUP,111.13mm OD x 20.64mm W | WINCup, Drive Pinion, Rear, Standard |
| 25. | 81812385 | [1] | BEARING ASSY,88.92mm OD x 23.07mm W | PABEARING, CUP, Tapered Roller, Front, Standard |
| 26. | 83914106 | [1] | SPACER | WINBearing, Drive Pinion, 1.3281/1.3286 (Replaces D8NN4662FA) |
| 26. | D8NN4662GA | [1] | SPACER | FORBearing, Drive Pinion, 1.3289/1.3294 Superseded by part number: 83914107 |
| 26. | D8NN4662HA | [1] | SPACER | FORBearing, Drive Pinion, 1.3297/1.3302 |
| 26. | D8NN4662JA | [1] | SPACER | FORBearing, Drive Pinion, 1.3305/1.3310 Superseded by part number: 83914109 |
| 26. | D8NN4662KA | [1] | SPACER | FORBearing, Drive Pinion, 1.3313/1.3318 Superseded by part number: 83914110 |
| 26. | D8NN4662LA | [1] | SPACER | FORBearing, Drive Pinion, 1.3321/1.3326 Superseded by part number: 83914111 |
| 26. | D8NN4662MA | [1] | SPACER | FORBearing, Drive Pinion, 1.3329/1.3340 Superseded by part number: 83914112 |
| 26. | D8NN4662NA | [1] | SPACER | FORBearing, Drive Pinion, 1.3337/1.3342 Superseded by part number: 83914113 |
| 26. | D8NN4662PA | [1] | SPACER | FORBearing, Drive Pinion, 1.3345/1.3350 Superseded by part number: 83914114 |
| 26. | D8NN4662SA | [1] | SPACER | FORBearing, Drive Pinion, 1.3353/1.3358 Superseded by part number: 83914115 |
| 26. | D8NN4662TA | [1] | SPACER | FORBearing, Drive Pinion, 1.3361/1.3366 Superseded by part number: 83914116 |
| 26. | D8NN4662UA | [1] | SPACER | FORBearing, Drive Pinion, 1.3369/1.3374 Superseded by part number: 83914117 |
| 26. | D8NN4662VA | [1] | SPACER | WINBearing, Drive Pinion, 1.3377/1.3382 Superseded by part number: 83914119 |
| 26. | D8NN4662XA | [1] | SPACER | FORBearing, Drive Pinion, 1.3385/1.3390 Superseded by part number: 83914120 |
| 27. | 81827354 | [1] | O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro | BAS4 5/8" ID x .139" Thk |
| 28. | 81845711 | [1] | BEARING ASSY | BASBEARING, CONE, & Roller Assy, Axle Pinion, Standard Superseded by part number: 298194R91 |
| 29. | 81845713 | [1] | SEAL | WINDrive Pinion Bearing Retainer, Standard |
| 30. | 83912246 | [1] | RETAINER | FORDrive Pinion |
| 30A. | 81844542 | [1] | HUB | WINAxle Pivot, Oscillating |
| 31. | 81834073 | [1] | OIL SEAL,66.67mm ID x 89.03mm OD x 11mm Thk | WINSeal Assy., Oil, Drive Pinion, Standard |
| 32. | 83949810 | [1] | FLANGE | WINU-Joint, 1410 with Tapped Holes |
| 32. | 81845729 | [1] | FLANGE | FORU-Joint, 1410 (Replaces D1NN4858A) Superseded by part number: 83949810 |
| 32. | E7NN4858AA | [1] | FLANGE | BASU-Joint, 1480 |
| 32. | E3NN4858AA | [1] | FLANGE | FORU-Joint, EG2150 (4C) |
| 32. | E9NN4858AA | [1] | FLANGE | FORU-Joint, 1480 |
| 33. | 81845714 | [1] | SEAL | WINDrive Pinion, Standard |
| 34. | D1NN4N118A | [1] | WASHER | FORPinion, Flange, Standard Superseded by part number: 81847144 |
| 35. | 83949812 | [1] | SLOTTED NUT | WINHex, Slotted, 1-1/4"-18, Standard |
| 36. | PL | [1] | PROCURE LOCALLY | BASPin, Cotter, 3/16" x 2-1/8", Standard |
| 37. | 88702 | [10] | BOLT,Hex, 9/16" x 1 1/2", Gr 5, Full Thd | PAHH, 9/16"-12 x 1", Standard |
| 37. | 304920S36 | [10] | SCREW | WINCap, HH, G5, 9/16"-12 x 3", Oscillating Superseded by part number: 81838640 |
| 38. | 80280248 | [10] | LOCK WASHER | IMOWASHER, LOCK, 9/16", Oscillating |
| 44. | 81800472 | [1] | ADAPTER | BASDifferential Lock Gear Case |
| 45. | 81800474 | [1] | SPRING | FORDifferential Lock Coupler |
| 46. | 81812261 | [1] | ADAPTER | BASCoupling, Axle, Differential Lock Superseded by part number: 81871527 |
| 47. | 81800475 | [1] | WASHER,64.64mm ID x 78.74mm OD x 3.25mm Thk | FORDifferential Lock, Coupler Stop 2.54" x 3.10" x .128" Thk |
| 48. | 81803474 | [1] | SNAP RING,2.37" ID | BASRING, SNAP, , Bull, Pinion Bearing Lock 2.37" ID |
| 49. | 83959618 | [1] | FORK | AAxle, Differential Lock |
| 50. | 80087308 | [1] | NUT | BASJam, G2, 3/8"-24 Superseded by part number: 86509310 |
| 51. | 81804978 | [1] | SET SCREW,Hex Hd, 3/8"-24 x .97", Cone Pt | BAS |
| 52. | 390791S36 | [2] | WASHER,24.13mm ID x 36.58mm OD x 3.3mm Thk | BASFlat, Steel Hd., 95" x 1.44" x .13" |
| 53. | E6NN4N079AA | [1] | HALF SHAFT | BASShaft, Rear Axle Differential Lock Lever Superseded by part number: 83959619 |
| 54. | C5NN4N095A | [1] | OIL SEAL | FORAssy., Differential Lock, Shaft Oil Seal Superseded by part number: 81803349 |
| 55. | 81803348 | [1] | SHIELD,24.03mm ID x 34.62mm OD x 1.52mm Thk | FORDifferential Lock, Shaft Seal |
| 56. | 137286 | [1] | SNAP RING,#87, Ext | WINRing, Snap, #87, Ext |
| 57. | C7NN2N059A | [1] | PIN | FORShackle, Differential Lock Superseded by part number: 81816595 |
| 58. | 81802560 | [1] | LEVER | BASDifferential Lock |
| 59. | 80756 | [1] | COTTER PIN,1/8" x 3/4" | NHPIN, SPLIT (COTTER), 1/8" x 3/4" |
| 60. | 73931S36 | [1] | PIN,6.3mm OD x 23.81mm L | FORClevis, 5/16" x 63/64" |
| 61. | 83949838 | [1] | ROD | BAS& Clevis Assy. |
| 62. | 80087307 | [1] | NUT | IMOJam, G2, 5/16"-24 Superseded by part number: 87307 |
| 63. | 83952932 | [1] | CLEVIS | BASPin, Clevis, 5/16"-24 x 1-35/64" |
| 64. | 73933S36 | [1] | PIN,6.3mm OD x 23.81mm L | FORClevis, 5/16" x 17/64" |
