约翰迪尔零件查询600 - AMT DIFFERENTIAL GEARS AND LOCKEPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览： 450 次

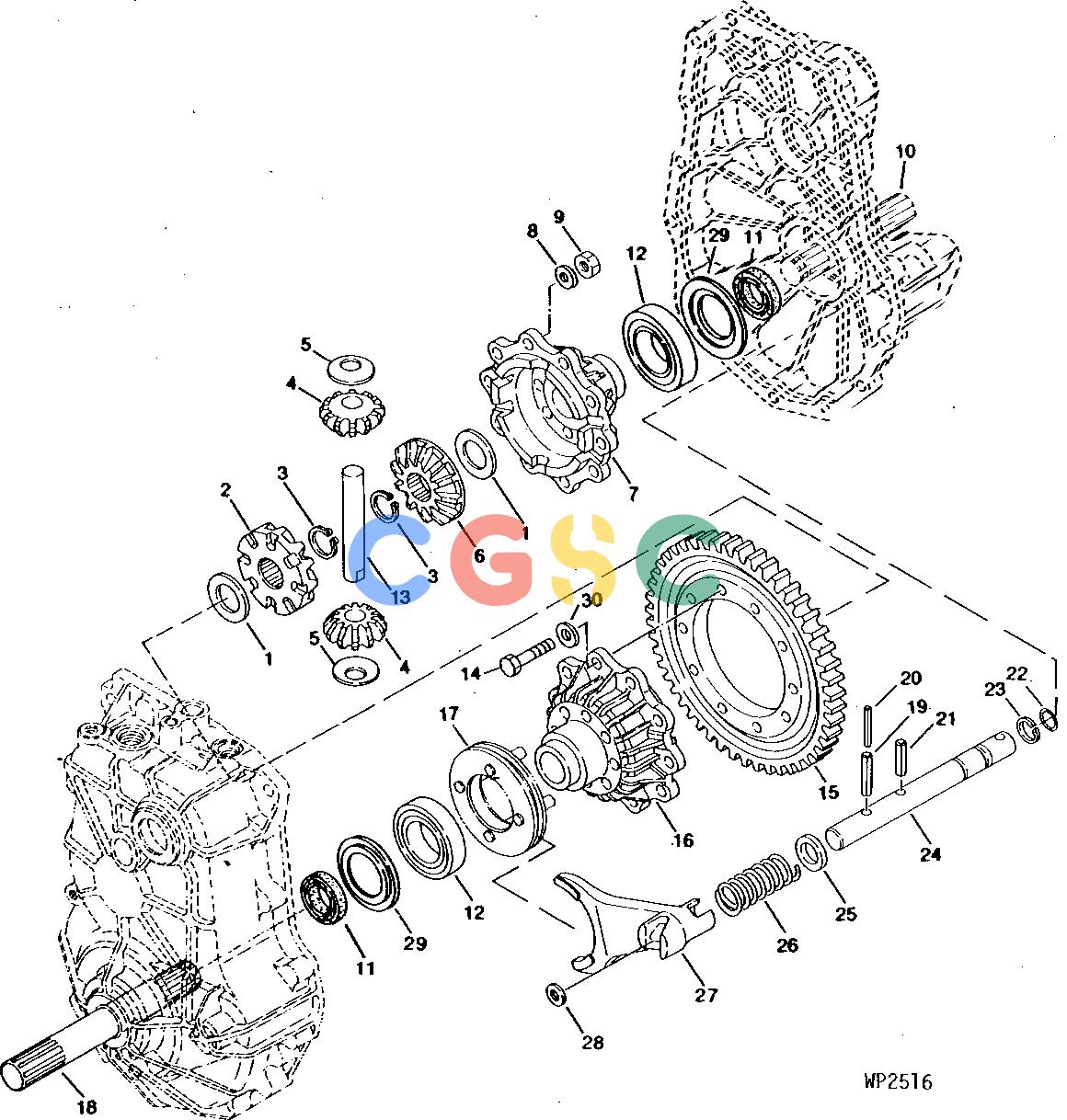

Pos.	Part No	Qty	Parts name	Comments
1.	R91149	[2]	Washer
2.	M805273	[1]	Gear	(SUB FOR R91146 OR W40357)
3.	CH13486	[2]	Snap Ring
4.	R91272	[2]	Pin
5.	M800576	[2]	Washer
6.	R91147	[1]	Gear
7.	R92289	[1]	Cover	RH
8.	24M7095	[10]	Washer	8.400 X 15 X 1.600 MM
9.	14M7273	[10]	Nut	M8
10.	R91158	[1]	Axle
11.	R91130	[2]	Seal
12.	CH13506	[2]	Ball Bearing
13.	R91148	[1]	Pinion Shaft	(SUB M805273, M805274, M805275 AND M805276)
13.	M805274	[1]	Pinion Shaft
14.	19M7378	[10]	Cap Screw	M8 X 45
15.	R91145	[1]	Gear
16.	W40358	[1]	Case	LH, (SUB FOR R92290) (SUB M805273, M805274, M805275 AND M805276)
16.	M805275	[1]	Case	LH
17.	R91152	[1]	Shift Collar	(SUB M805273, M805274, M805275 AND M805276)
17.	M805276	[1]	Differential Lock
18.	R91157	[1]	Pin
19.	34M7047	[1]	Spring Pin	8 X 40 MM
20.	34M7035	[1]	Spring Pin	5 X 40 MM
21.	CH13851	[1]	Pin Fastener
22.	CH10570	[1]	O-Ring
23.	M800606	[1]	Ring
24.	R91154	[1]	Shaft
25.	CH15024	[1]	Washer
26.	R91156	[1]	Spring
27.	R92291	[1]	Fork
28.	R91155	[1]	Washer
29.	R92211	[2]	Thrust Washer
30.	24M7095	[10]	Washer	8.400 X 15 X 1.600 MM
...	AM108491	[1]	Transmission	COMPLETE, (SUB FOR RE28536)
