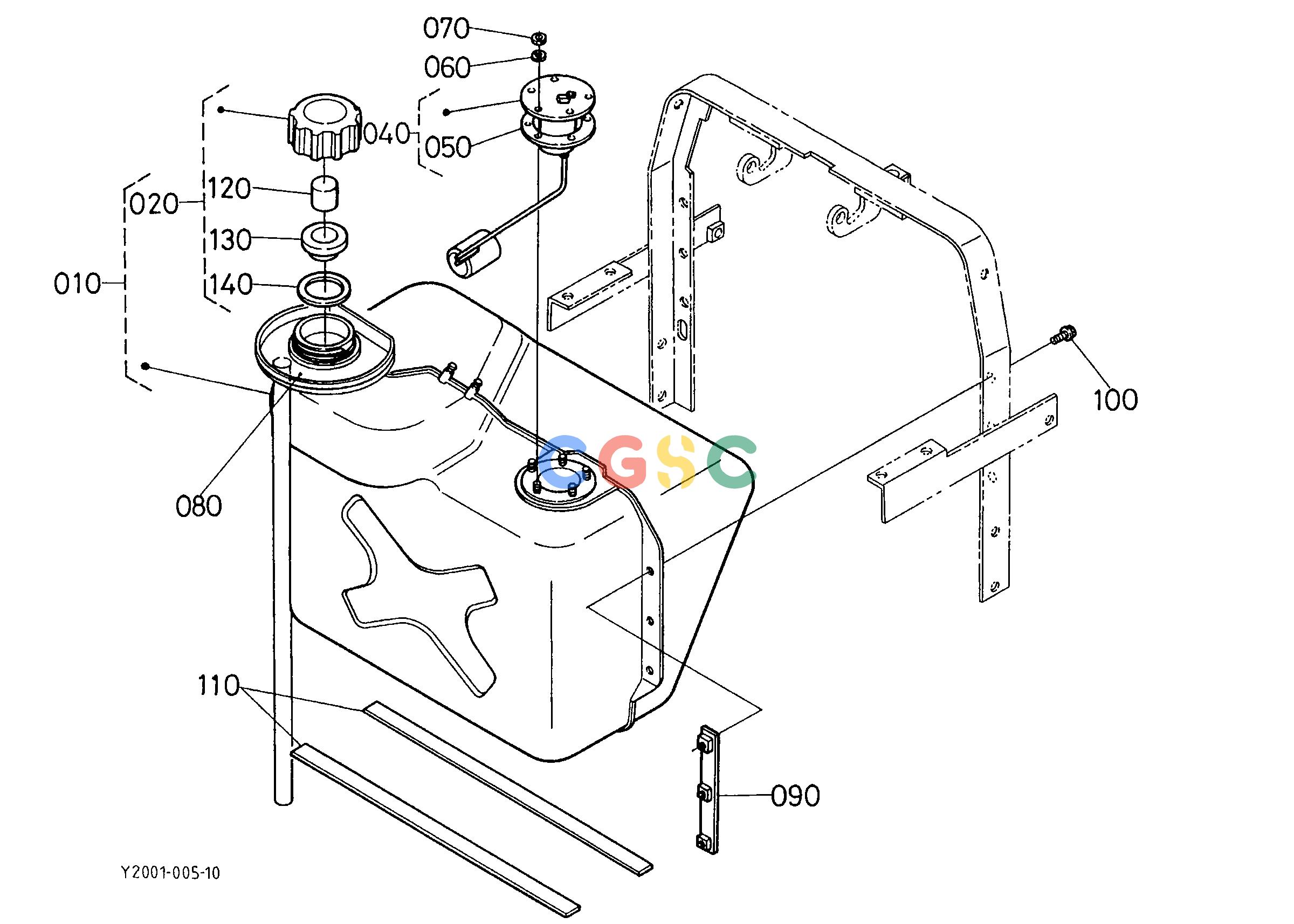

久保田零件查询T03000 FUEL TANK FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
713 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641654700
|
[1] |
ASSY TANK FUEL
|
4.5100(lbs); 2.050
|
| 020. |
3824035200
|
[1] |
ASSY CAP FUEL TANK
|
0.1430(lbs); 0.065
|
| 040. |
6641654730
|
[1] |
UNIT FUEL
|
0.5060(lbs); 0.230
|
| 050. |
6740154740
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 060. |
0401350050
|
[5] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 070. |
0205450050
|
[5] |
NUT
|
0.0044(lbs); 0.002
|
| 080. |
6641654742
|
[1] |
DISH FUEL
|
0.1540(lbs); 0.070
|
| 090. |
6641654750
|
[2] |
PLATE
|
0.1496(lbs); 0.068
|
| 100. |
0102550620
|
[6] |
BOLT
|
0.0440(lbs); 0.020
|
| 110. |
6641654760
|
[2] |
CUSHION TANK
|
0.0440(lbs); 0.020
|
| 120. |
3415035240
|
[1] |
SPONGE
|
0.0022(lbs); 0.001
|
| 130. |
3415035230
|
[1] |
GASKET
|
0.0220(lbs); 0.010
|
| 140. |
3415035180
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
