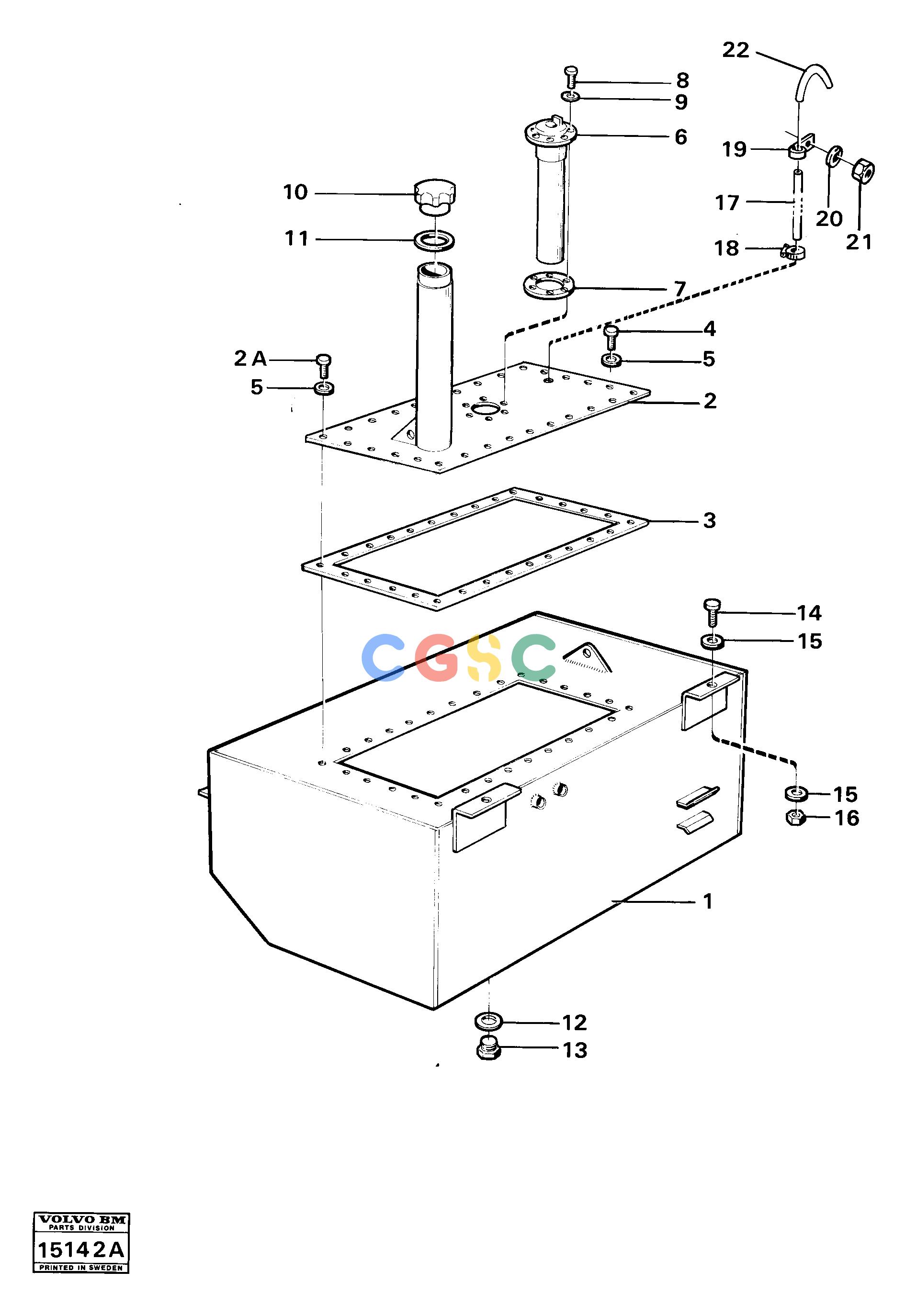

沃尔沃零件查询4300 Fuel tank prod no 33100, 33105.4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
869 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE13946173
|
[24] |
Screw
|
|
| 5. |
VOE4929461
|
[28] |
Washer
|
|
| 6. |
VOE4740537
|
[1] |
Tank unit
|
|
| 7. |
VOE4708245
|
[1] |
Gasket
|
|
| 1. |
VOE4928990
|
[1] |
Fuel tank
|
|
| 8. |
VOE956094
|
[6] |
Cross recessed screw
|
|
| 9. |
VOE957170
|
[6] |
Gasket
|
|
| 10. |
VOE739846
|
[1] |
Cover
|
SER NO -1692
|
| |
VOE421753
|
[1] |
Filler cap
|
|
| |
|
|
None
|
SER NO 1693-
|
| 11. |
VOE1275379
|
[0001] |
Gasket
|
|
| 12. |
VOE957184
|
[0001] |
Gasket
|
|
| 13. |
VOE914392
|
[0001] |
Plug
|
|
| 14. |
VOE13970973
|
[0004] |
Hexagon screw
|
|
| 15. |
VOE13960145
|
[0008] |
Washer
|
|
| 16. |
VOE13971090
|
[0004] |
Lock nut
|
|
| 17. |
VOE941507
|
[REQ] |
Hose
|
SER NO 1693-
|
| 2. |
VOE4926965
|
[1] |
Cap
|
TILLV.NR-1692
|
| 18. |
VOE943470
|
[0001] |
Hose clamp
|
SER NO 1693-
|
| 19. |
VOE952629
|
[REQ] |
Clamp
|
SER NO 1693-
|
| 20. |
VOE13941906
|
[REQ] |
Washer
|
SER NO 1693-
|
| |
VOE4928985
|
[1] |
Cap
|
SER NO 1693-
|
| 21. |
VOE13955781
|
[REQ] |
Nut
|
SER NO 1693-
|
| 22. |
VOE4709589
|
[0001] |
Air vent pipe
|
SER NO 1901-
|
| 2A. |
VOE13955295
|
[4] |
Screw
|
|
| 3. |
VOE4929460
|
[1] |
Gasket
|
|
