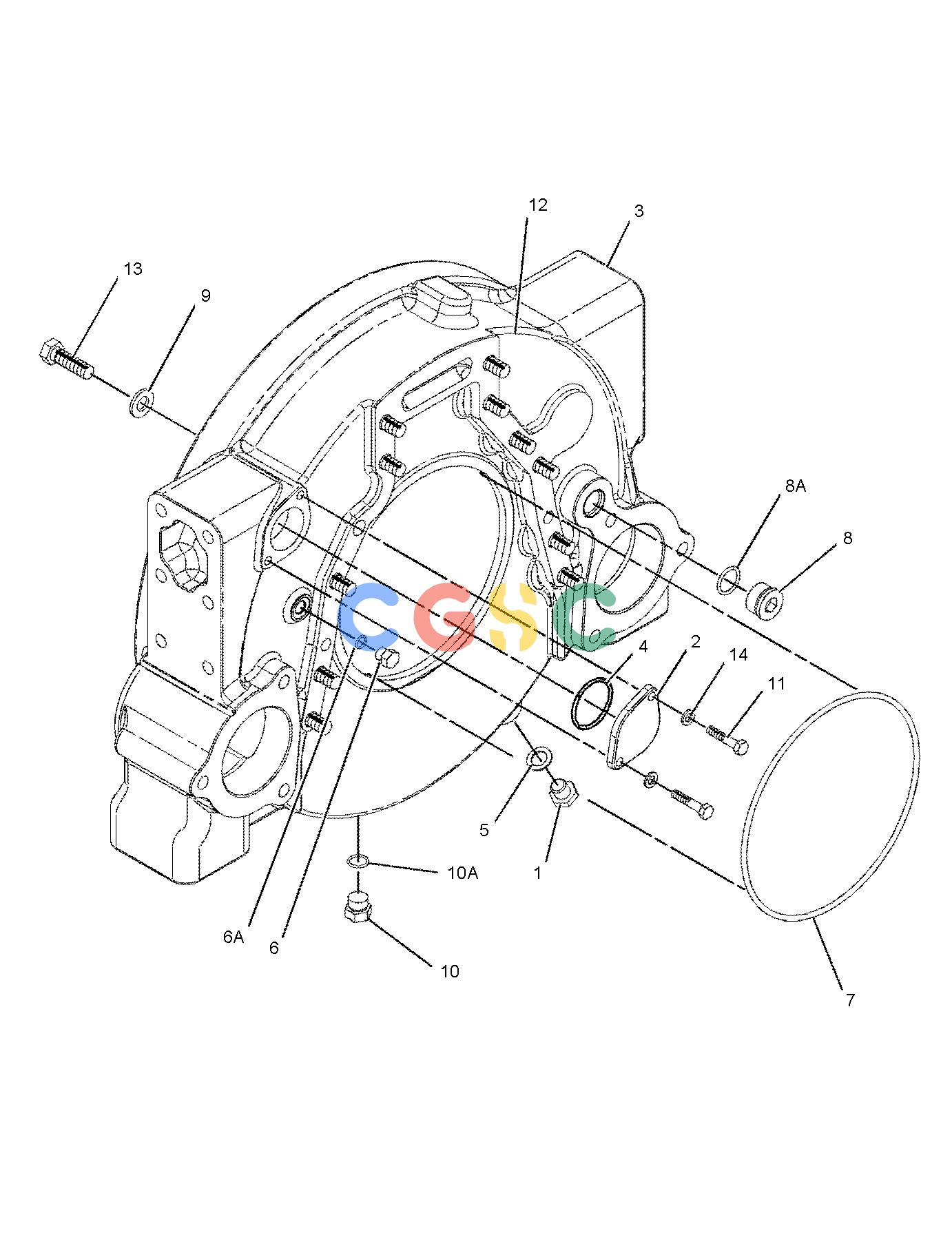

卡特零件查询（725） 230-1103: HOUSING GP-FLYWHEEL
广数供应链运营团队, 14 02月, 2025，浏览：
963 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5F-0304 | [1] | PLUG(FLYWHEEL HOUSING) | |
| 2. | 7C-1445 | [1] | COVER | |
| 3. | 231-4543 | [1] | HOUSING-FLYWHEEL | |
| 4. | 061-9455 | [1] | SEAL-O-RING | |
| 5. | 2A-1162 | [1] | GASKET | |
| 6. | 321-8642 | [1] | PLUG AS | |
| | 9S-8003 | [1] | PLUG(1/2-20-THD) | |
| 6A. | 214-7567 | [1] | SEAL-O-RING | |
| 7. | 5D-9344 | [1] | SEAL-O-RING | |
| 8. | 315-9859 | [1] | PLUG AS | |
| | 9S-8008 | [1] | PLUG(1-1/16-12-THD) | |
| 8A. | 238-5082 | [1] | SEAL-O-RING | |
| 9. | 5P-8246 | [12] | WASHER-HARD(15.5X29X3-MM THK) | |
| 10. | 307-2673 | [1] | PLUG AS | |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| 10A. | 238-5080 | [1] | SEAL-O-RING | |
| 11. | 6V-5219M | [2] | BOLT(M8X1.25X40-MM) | |
| 12. | 1U-8846B | | SEALANT-GASKET | |
| 13. | 8T-0226M | [12] | BOLT(M14X2X45-MM) | |
| 14. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
