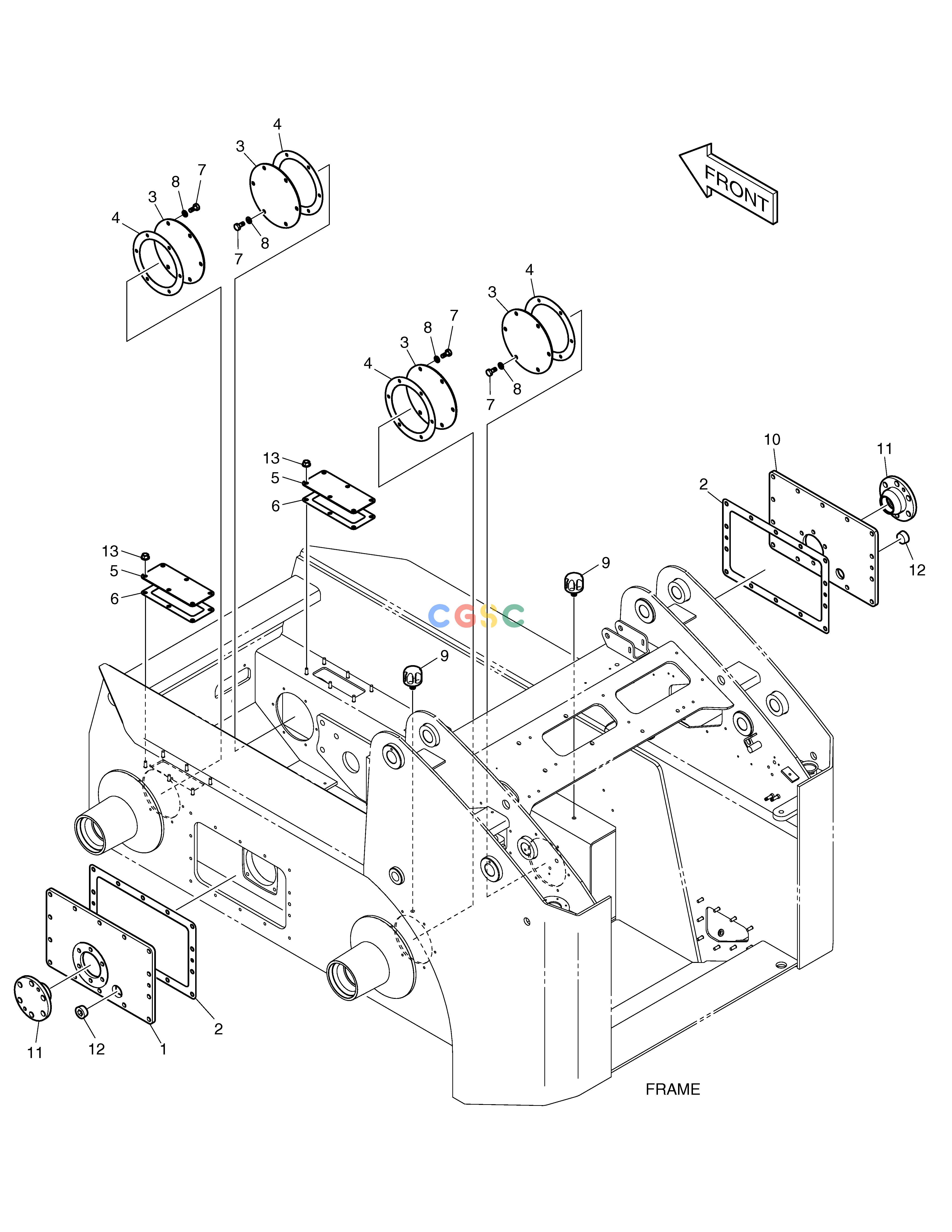

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1020418 | [-] | CASE COVER ASS'Y | |
| 1. | K1021726 | [1] | COVER(L.H) | |
| 10. | K1021727 | [1] | COVER(R.H) | |
| 11. | K1021676 | [2] | HOUSING | |
| 12. | K1022316 | [2] | PLUG;MAGNET | |
| 13. | K1020165 | [12] | NUT | |
| 2. | K1020747 | [2] | GASKET | |
| 3. | K1021691 | [4] | COVER | |
| 4. | K1021688 | [4] | GASKET | |
| 5. | K1020499 | [2] | COVER | |
| 6. | K1020500 | [2] | GASKET | |
| 7. | S0508663 | [24] | BOLT | |
| 8. | S5000513 | [24] | . WASHER;PLAIN | |
| 9. | K1020006 | [2] | BREATHER;AIR |
