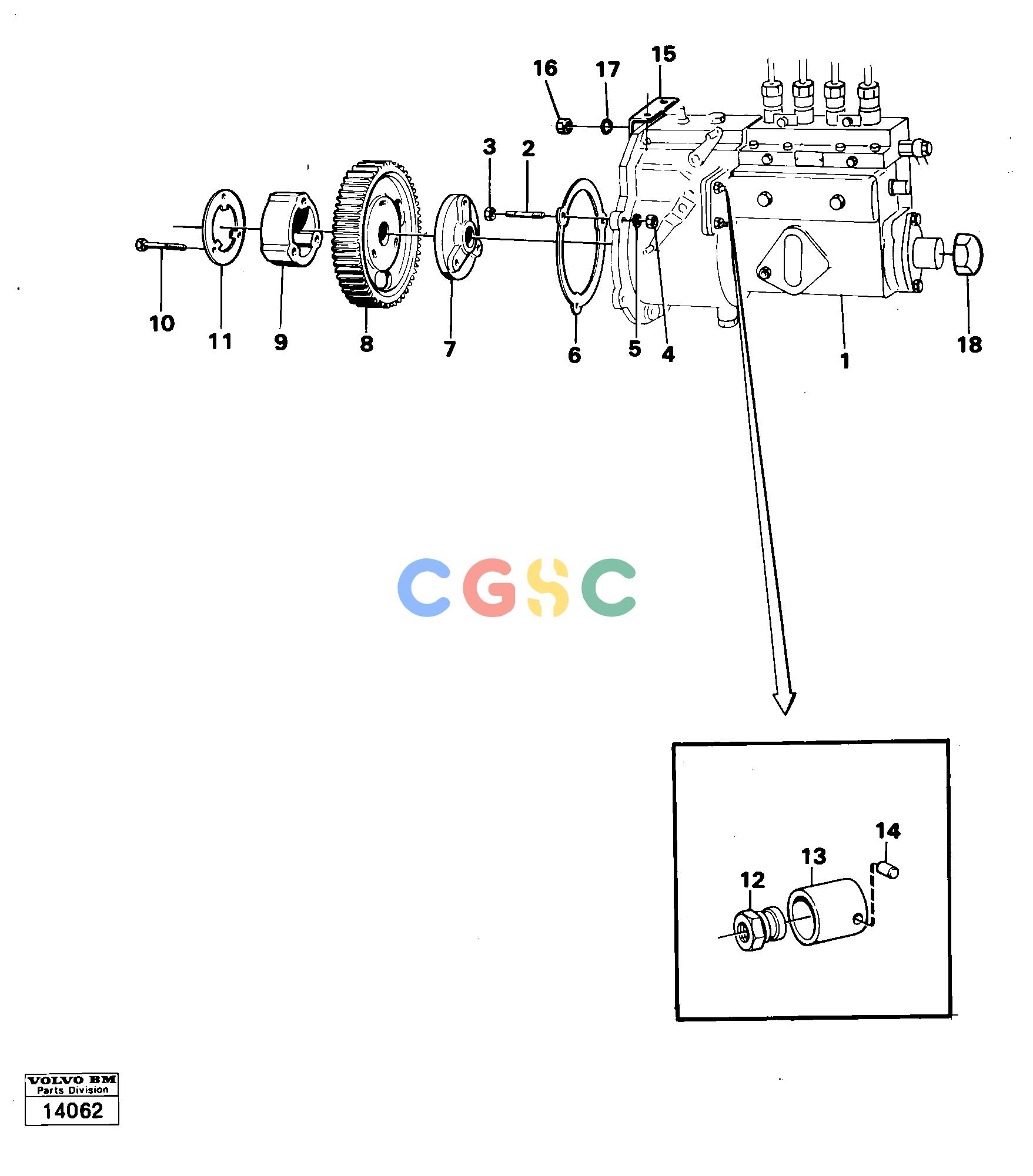

沃尔沃零件查询4300 Fuel injection pump with fitting parts Mo -598824300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
288 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13941907
|
[0003] |
Washer
|
|
| 6. |
VOE11030014
|
[0001] |
Gasket
|
|
| 7. |
VOE785599
|
[0001] |
Hub
|
PROD 16100,16106
|
| |
VOE4804679
|
[0001] |
Hub
|
|
| |
|
|
None
|
PROD NO 16300,16305
|
| |
VOE4804680
|
[0001] |
Washer
|
PROD NO 16300,16305
|
| 8. |
VOE4804556
|
[0001] |
Gear
|
|
| 9. |
VOE11030075
|
[0001] |
Spacer ring
|
|
| 1. |
VOE4786803
|
[0001] |
Injection Pump
|
|
| 10. |
VOE955538
|
[0003] |
Hexagon screw
|
TILLV.NR-3100
|
| |
|
|
None
|
|
| |
VOE13970954
|
[0003] |
Hexagon screw
|
SER NO 3101-
|
| 11. |
VOE4804632
|
[0001] |
Lock washer
|
|
| 12. |
VOE780580
|
[0001] |
Nut
|
|
| |
VOE4880090
|
[0001] |
Injection pump
|
|
| |
|
|
None
|
|
| 13. |
VOE787146
|
[0001] |
Cover
|
|
| 14. |
VOE780582
|
[0001] |
Pin
|
|
| |
VOE4880612
|
[0001] |
Injection pump
|
|
| 15. |
VOE4929131
|
[0001] |
Bracket
|
SER NO -2451
|
| |
|
|
None
|
|
| |
VOE4929880
|
[0001] |
Bracket
|
SER NO 2452-
|
| 16. |
VOE13955846
|
[0002] |
Nut
|
|
| 17. |
VOE13941906
|
[0002] |
Washer
|
|
| |
VOE4880263
|
[0001] |
Injection Pump
|
ERS AV 4881022
|
| |
|
|
None
|
|
| 18. |
VOE784418
|
[0001] |
Protecting sleeve
|
|
| |
VOE4881022
|
[0001] |
Injection pump
|
|
| |
|
|
None
|
|
| 2. |
VOE953243
|
[0003] |
Stud
|
|
| 3. |
VOE13955834
|
[0003] |
Nut
|
|
| 4. |
VOE955826
|
[0003] |
Hexagon nut
|
|
