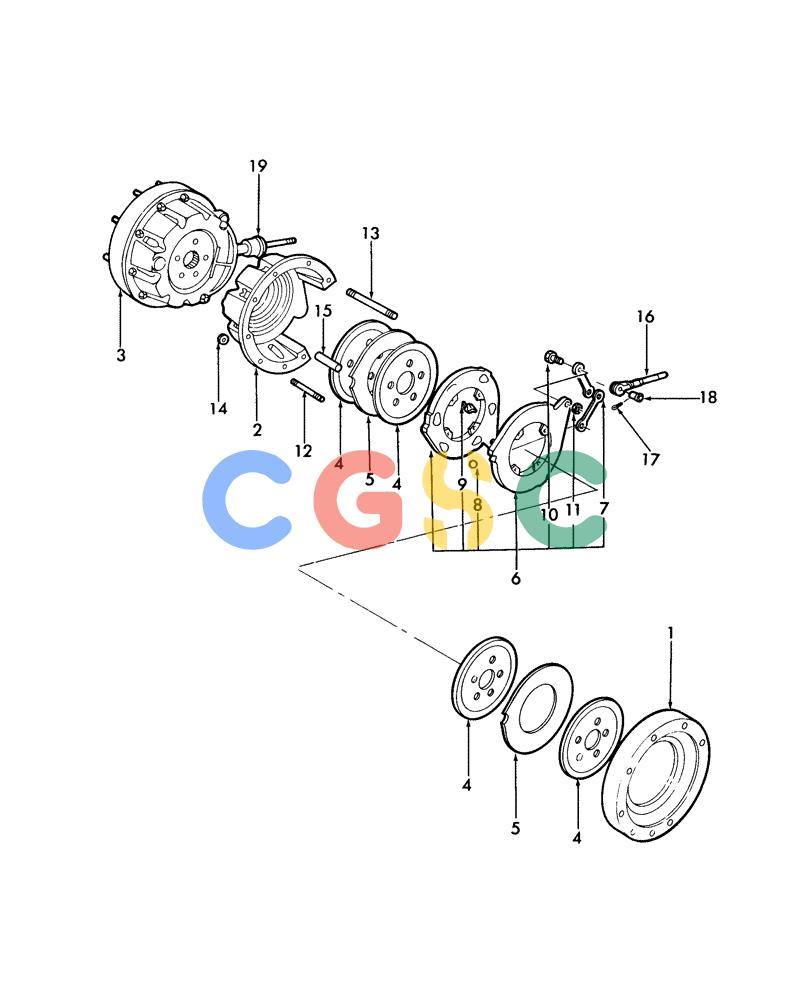

纽荷兰零件查询(D60) - DRIVE AXLE (1/91-) (003) - BRAKES & BRAKE CONTROLS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
857 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | D7NN2A098A | [2] | HOUSING | FOROuter Superseded by part number: E4NN2A098CA |
| 2. | 83955514 | [1] | HOUSING | FORR.H., Inner |
| 3. | D4NN2N100A | [1] | HOUSING | FORL.H., Inner Superseded by part number: E4NN2N100CA |
| 4. | E9NN2A097BA | [6/8] | BRAKE DISC | BAS Superseded by part number: 87518036 |
| 5. | 83956598 | [4/6] | DISC,145.8mm ID x 230.1mm OD x 2.7mm Thk | BAS |
| 6. | C7NN2N317A | [2] | DISC | FORIncludes: Ref. 7 thru 11 |
| 7. | 81818856 | [4] | LINK | FOR |
| 8. | 82979987 | [12] | BALL,7/8" | CUR |
| 9. | 84814903 | [8] | SPRING | FOR |
| 10. | 81802546 | [4] | PIN | FOR |
| 11. | 87309 | [4] | JAM NUT,Jam, 1/2"-20, G2 | NHNut, Jam, G2, 1/2"-20 |
| 12. | 382414S | [12] | STUD | FOR Superseded by part number: 81817112 |
| 13. | 377525S | [4] | STUD | FOR Superseded by part number: 83417087 |
| 14. | 352596S | [16] | NUT | FOR Superseded by part number: 380134S36 |
| 15. | 81802547 | [4] | PIN | FOR |
| 16. | C7NN2466B | [2] | ROD | FOR Superseded by part number: 81818792 |
| 17. | 80755 | [2] | COTTER PIN,1/8" OD x 1" OAL | NH |
| 18. | 76260S36 | [2] | CLEVIS PIN,5/8" x 1 3/8" L | BAS Superseded by part number: 83928668 |
| 19. | 82037652 | [2] | SEAL | FAR |
