| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

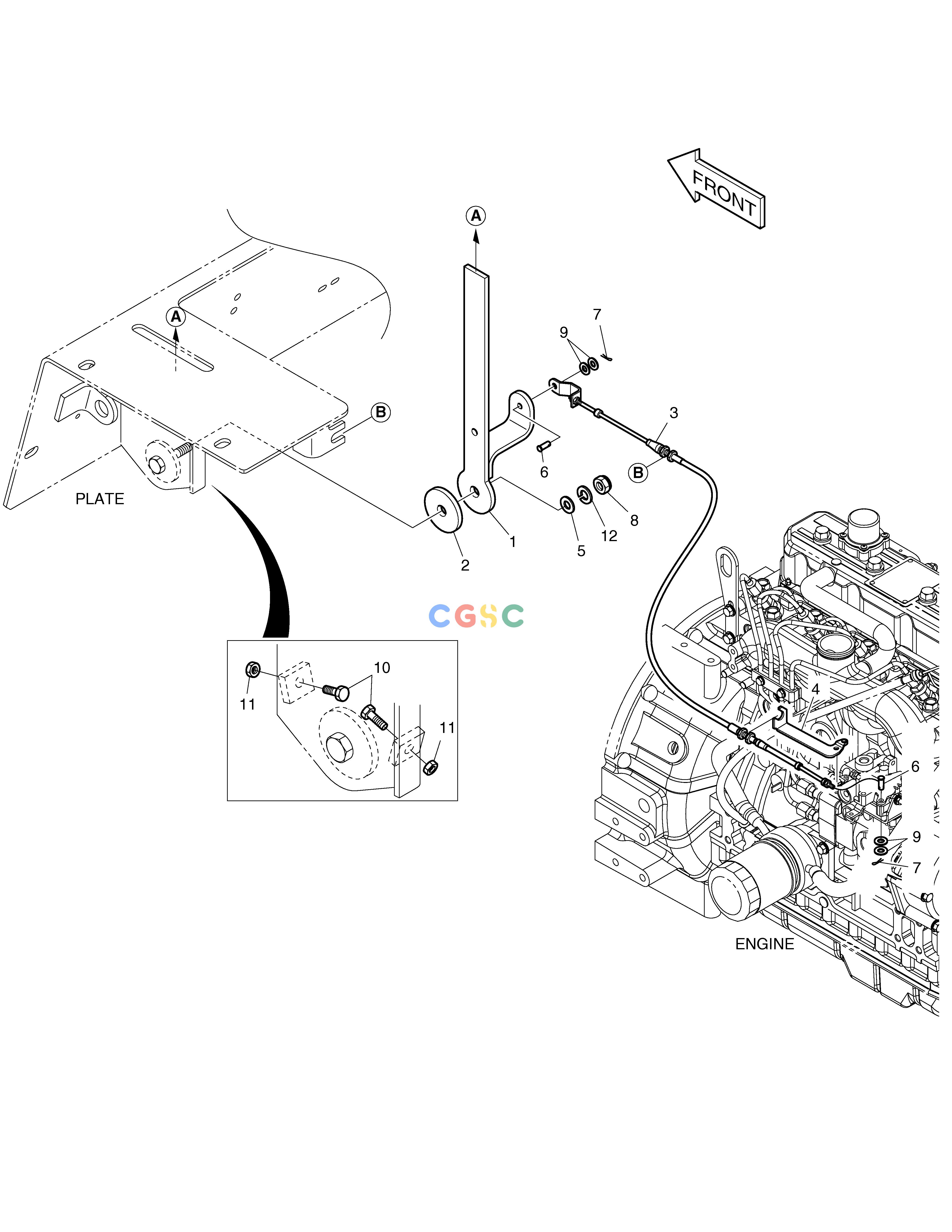

| -. | K1021259 | [-] | THROTTLE CONTROL | |
| 1. | K1021587 | [1] | LEVER | |
| 10. | S0512263 | [2] | BOLT | |
| 11. | S4016633 | [2] | NUT | |
| 12. | K1023131 | [1] | WASHER;SPRING | |
| 2. | K1022285 | [1] | SPACER | |
| 3. | K1021260 | [1] | CABLE;ENGINE-THROTTLE | |
| 4. | K1021261 | [1] | BRACKET | |
| 5. | K1023140 | [1] | WASHER | |
| 6. | S5760111 | [2] | PIN;COTTER | |
| 7. | S180333H | [2] | PIN | |
| 8. | K1023118 | [1] | NUT;LOCK | |
| 9. | K1023146 | [4] | WASHER;HARDENED |
