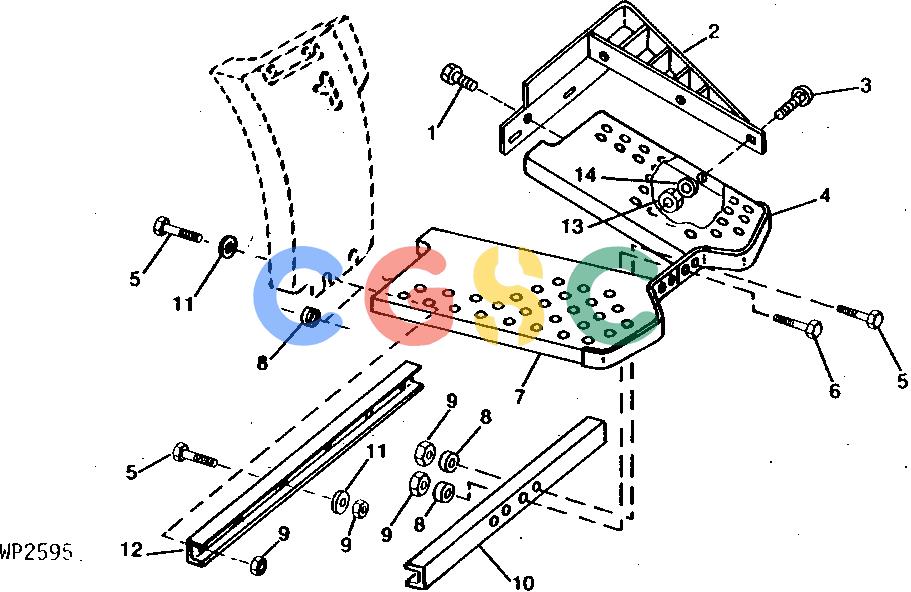

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 37M7464 | [2] | Screw | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) M10 X 20 |
| 2. | AM108557 | [1] | Bracket | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) LH |
| 2. | AM108556 | [1] | Bracket | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) RH |
| 3. | 03M7184 | [10] | Bolt | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) M8 X 20 |
| 3. | 03M7184 | [8] | Bolt | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) M8 X 20 |
| 4. | RE28851 | [1] | Platform | LH, (SUB AW26587) |
| 4. | AW26587 | [1] | Footrest | LH |
| 5. | 19M7513 | [8] | Cap Screw | M8 X 30 |
| 6. | 19M7323 | [2] | Cap Screw | M8 X 40 |
| 7. | RE28850 | [1] | Platform | RH, (SUB AW26586) |
| 7. | AW26586 | [1] | Footrest | RH |
| 8. | 28H1511 | [4] | Washer | 0.364" X 0.540" X 1/4" |
| 9. | 14M7166 | [10] | Lock Nut | M8 |
| 10. | R89488 | [1] | Support | (FRONT) |
| 11. | 24M7207 | [6] | Washer | 8.400 X 24 X 2 MM |
| 12. | R89489 | [1] | Support | (REAR) |
| 13. | 14M7166 | [10] | Lock Nut | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) M8 |
| 13. | 14M7166 | [8] | Lock Nut | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) M8 |
| 14. | 24H1289 | [10] | Washer | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) 21/64" X 5/8" X 0.049" |
| 14. | 24H1289 | [8] | Washer | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) 21/64" X 5/8" X 0.049" |
