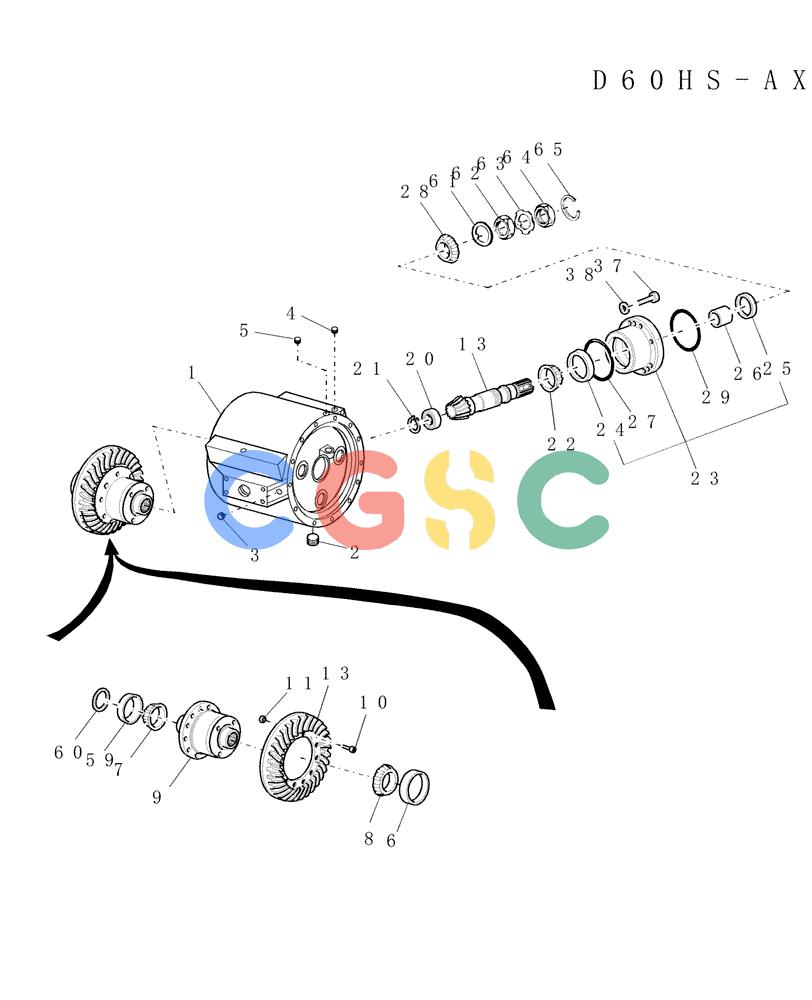

| 1. | E7NN4032LA | [1] | WOBBLE BOX | BASHousing Assy., Differential, CW, Incl. Ref.2-6 Superseded by part number: 82959782 |
| 2. | 263136 | [1] | MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF | NHPLUG, MAGNETIC, Sq. Soc, 3/4"-14 NPTF |
| 3. | 87811S36 | [2] | DRAIN PLUG,3/4"-14 | BASPLUG, DRAIN, , Standard 3/4"-14 Superseded by part number: 83909107 |
| 4. | 21T4022 | [1] | BREATHER | GIDifferential Housing Vent |
| 5. | D0NN4N206A | [1] | PLUG | BASCenter Housing, No Spin |
| 6. | 957E4222 | [1] | BEARING ASSY,107.975 mm ID x 158.775 mm OD x 23.02 mm | BASCup, Differential, R.H. Superseded by part number: 81803420 |
| 7. | 510884 | [1] | ROLLER BEARING,66.69mm ID x 30.05mm W | WINBeaing, Cone & Roller, Differential, L.H. |
| 8. | 957E4221 | [1] | BEARING ASSY,107.975 mm ID x 158.775 mm OD x 23.02 mm | BASBearing Assy, Cone & Roller, Rear Axel, Differential, RH Superseded by part number: 81803413 |
| 9. | 86550057 | [1] | REAR AXLE | BASDifferential Assy., Truetrac |
| 10. | 83957533 | [12] | SCREW,Pan HD, 1/2" - 20 x 1-5/8", Gr 8 | WINBOLT, 1/2"-20 x 1.62" |
| 11. | 380135S43 | [12] | LOCK NUT,1/2"-20, GA | FORNUT, LOCK, 1/2"-20, GA Superseded by part number: 83417169 |
| 13. | E7NN4209BA | [1] | GEAR SET | FORMatched, 5.28, Hydrostatic Superseded by part number: 83991525 |
| 20. | 81824478 | [1] | BEARING ASSY,30mm ID x 62mm OD x 19.05mm W | WINBearing Assy., Pinion Pilot |
| 21. | 960E4627 | [1] | CIRCLIP | FORRing, Drive, Pinion Pilot Bearing Superseded by part number: 81803542 |
| 22. | E3NN4630AA | [1] | TAPERED ROLLER BEARING | BASBEARING, ROLLER, TAPERED, Cone Superseded by part number: 83992835 |
| 23. | D8NN4614CA | [1] | RETAINER | WINAssy., Incl. Ref.24&25 Superseded by part number: 83916752 |
| 24. | 86017029 | [1] | BEARING CUP,111.13mm OD x 20.64mm W | WINBearing, Cup, Drive Pinion, Rear, Std. |
| 25. | NCA4616A | [1] | BEARING ASSY,1.7505" ID x 3.501" OD x 1.1955" | GIBEARING, CUP, Tapered Roller, Front, Standard Superseded by part number: 81812385 |
| 26. | 83914106 | [1] | SPACER | WINPinion Bearing, 1.3281/1.3286 (Replaces D8NN4662FA) |
| 26. | D8NN4662GA | [1] | SPACER | FORPinion Bearing, 1.3289/1.3294 Superseded by part number: 83914107 |
| 26. | D8NN4662HA | [1] | SPACER | FORPinion Bearing, 1.3297/1.3302 |
| 26. | D8NN4662JA | [1] | SPACER | FORPinion Bearing, 1.3305/1.3310 Superseded by part number: 83914109 |
| 26. | D8NN4662KA | [1] | SPACER | FORPinion Bearing, 1.3313/1.3318 Superseded by part number: 83914110 |
| 26. | D8NN4662LA | [1] | SPACER | FORPinion Bearing, 1.3321/1.3326 Superseded by part number: 83914111 |
| 26. | D8NN4662MA | [1] | SPACER | FORPinion Bearing, 1.3329/1.3340 Superseded by part number: 83914112 |
| 26. | D8NN4662NA | [1] | SPACER | FORPinion Bearing, 1.3337/1.3342 Superseded by part number: 83914113 |
| 26. | D8NN4662PA | [1] | SPACER | FORPinion Bearing, 1.3345/1.3350 Superseded by part number: 83914114 |
| 26. | D8NN4662SA | [1] | SPACER | FORPinion Bearing, 1.3353/1.3358 Superseded by part number: 83914115 |
| 26. | D8NN4662TA | [1] | SPACER | FORPinion Bearing, 1.3361/1.3366 Superseded by part number: 83914116 |
| 26. | D8NN4662UA | [1] | SPACER | FORPinion Bearing, 1.3369/1.3374 Superseded by part number: 83914117 |
| 26. | D8NN4662VA | [1] | SPACER | WINPinion Bearing, 1.3377/1.3382 Superseded by part number: 83914119 |
| 26. | D8NN4662XA | [1] | SPACER | FORPinion Bearing, 1.3385/1.3390 Superseded by part number: 83914120 |
| 27. | 87090S94 | [1] | O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro | BAS Superseded by part number: 81827354 |
| 28. | 81845711 | [1] | BEARING ASSY | BASBEARING, CONE, & Roller, Pinion, Std, Front Superseded by part number: 298194R91 |
| 37. | 88702 | [6] | BOLT,Hex, 9/16" x 1 1/2", Gr 5, Full Thd | PAScrew, Cap, HH, G5, 9/16"-12 x 1-1/2" |
| 38. | 280248 | [6] | LOCK WASHER,9/16" | NHWasher, Lock, 9/16" Superseded by part number: 80280248 |
| 59. | 510892 | [1] | BEARING CUP,112.71mm OD x 23.81mm W | GICup, Bearing, Differential, L.H. |
| 60. | 81803515 | [1] | SHIM,96.52mm ID x 111.76mm OD x 1.02mm Thk | BASDiff. Gear Bearing (1.016mm) 3.80" x 4.40" x .038/.040" Thk |
| 60. | C5NN4548B | [1] | SHIM,3.80" ID x 4.40" OD x 0.046" Thk | FOR3.80" x 4.40" x .044/.046" Thk (1.118/1.168 mm), Differential Gear Bearing Superseded by part number: 81803516 |
| 60. | 81803517 | [1] | SHIM,96.52mm ID x 111.76mm OD x 1.32mm Thk | BAS(1.270/1.321 mm), Differential Gear Bearing 3.80" x 4.40" x .050/.052" Thk |
| 60. | C5NN4548D | [1] | SHIM,3.80" ID x 4.40" OD x 0.058" Thk | FOR3.80" x 4.40" x .056/.058" Thk (1.422/1.473 mm), Differential Gear Bearing Superseded by part number: 81803518 |
| 60. | C5NN4548E | [1] | SHIM,3.80" ID x 4.40" OD x 0.064" Thk | FOR3.80" x 4.40" x .062/.064" Thk (1.575/1.626 mm) Superseded by part number: 81803519 |
| 60. | C5NN4548F | [1] | SHIM,3.80" ID x 4.40" OD x 0.070" Thk | FOR3.80" x 4.40" x .068"/.070" Thk (1.727/1.778 mm), Differential Gear Bearing Superseded by part number: 81803520 |
| 60. | C5NN4548G | [1] | SHIM,3.80" x 4.40" x .074/.076" Thk | FOR(1.880/1.930 mm), Differential Gear Bearing 3.80" x 4.40" x .074/.076" Thk Superseded by part number: 81803521 |
| 60. | C5NN4548H | [1] | SHIM,3.80" x 4.40" x .080/.082" Thk | FOR(2.032/2.083 mm), Differential Gear Bearing 3.80" x 4.40" x .080/.082" Thk Superseded by part number: 81803522 |
| 61. | C5NN4667B | [1] | BEARING WASHER | FORWasher Superseded by part number: 81815991 |
| 62. | 960E4634 | [1] | BEARING LOCK NUT | FORLock Superseded by part number: 81803547 |
| 63. | 960E4636 | [1] | LOCK WASHER | FORWASHER, LOCK Superseded by part number: 81803550 |
| 64. | 86520144 | [1] | NUT | BASHydrostatic, with Speed Pick Up |
| 65. | 133066 | [1] | SNAP RING,#150, Ext | WINRing, Snap, #150, Ext |
