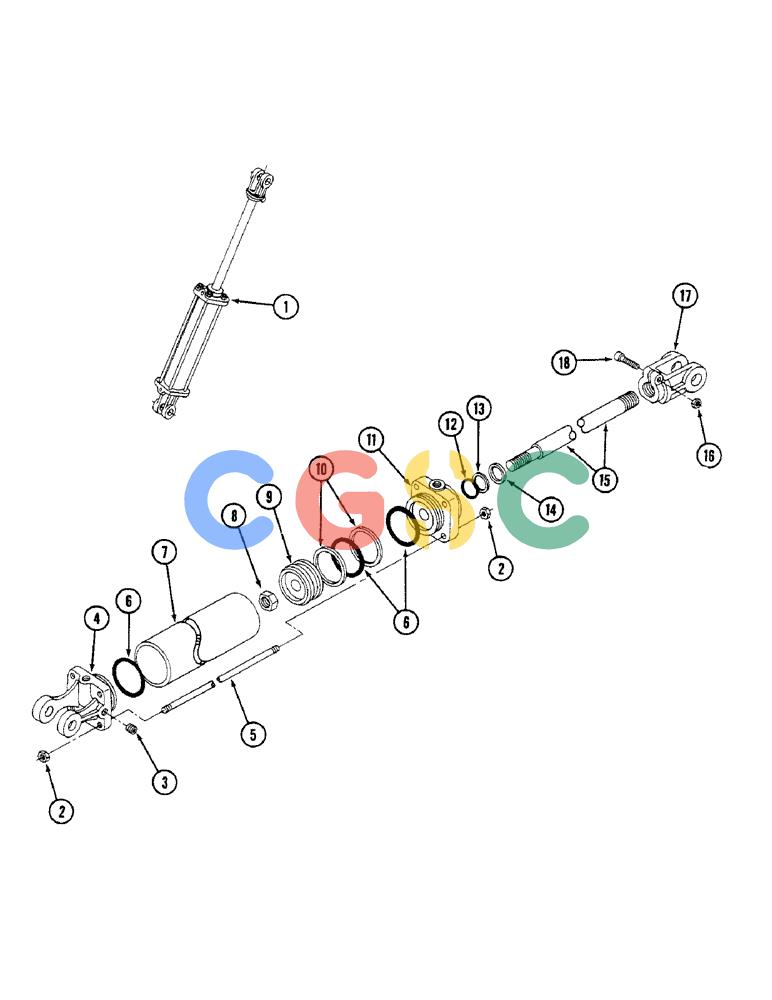

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (14) - HYDRAULIC LATCH CYLINDER, 3 INCH BORE (76 MM) X 16 INCH STROKE (406 MM) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
363 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZA104773
|
[1] |
CYLINDER
|
IH
ASSEMBLY - hydraulic
|
| 2. |
120378
|
[8] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 3. |
444660
|
[1] |
DRAIN PLUG,Sq Soc, 3/8"-18 NPTF
|
IH
PLUG - square head automotive pipe, 3/8 inch
|
| 4. |
ZA104995
|
[1] |
BASE
|
IH
- cylinder
|
| 5. |
ZA104997
|
[4] |
ROD
|
IH
- tie
|
| 6. |
NSS
|
[3] |
NOT SOLD SEPARAT
|
CON
O-RING
|
| 8. |
851124C1
|
[1] |
NUT
|
IH
- hex lock, 3/4 inch NC Superseded by part number: 131-909
|
| 9. |
812169C1
|
[1] |
PISTON
|
IH
Superseded by part number: B17274
|
| 11. |
ZA104996
|
[1] |
HEAT-EXCHANGER
|
IH
HEAD
|
| 15. |
ZA104998
|
[1] |
ROD
|
IH
- piston
|
| 16. |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 17. |
812266C1
|
[1] |
CLEVIS
|
IH
Superseded by part number: T55022
|
| 18. |
61-33828
|
[1] |
HEX SOC SCREW,3/8"-16 x 1 3/4"
|
CAS
SCREW - hex socket head, 3/8 NC x 1-3/4 inch Superseded by part number: 86511683
|
| . . |
812173C1
|
[1] |
SEAL KIT
|
IH
KIT - O-RING AND SEAL, Includes: ref. nos. 6, 10, 12, 13, 14 Superseded by part number: B17231
|
