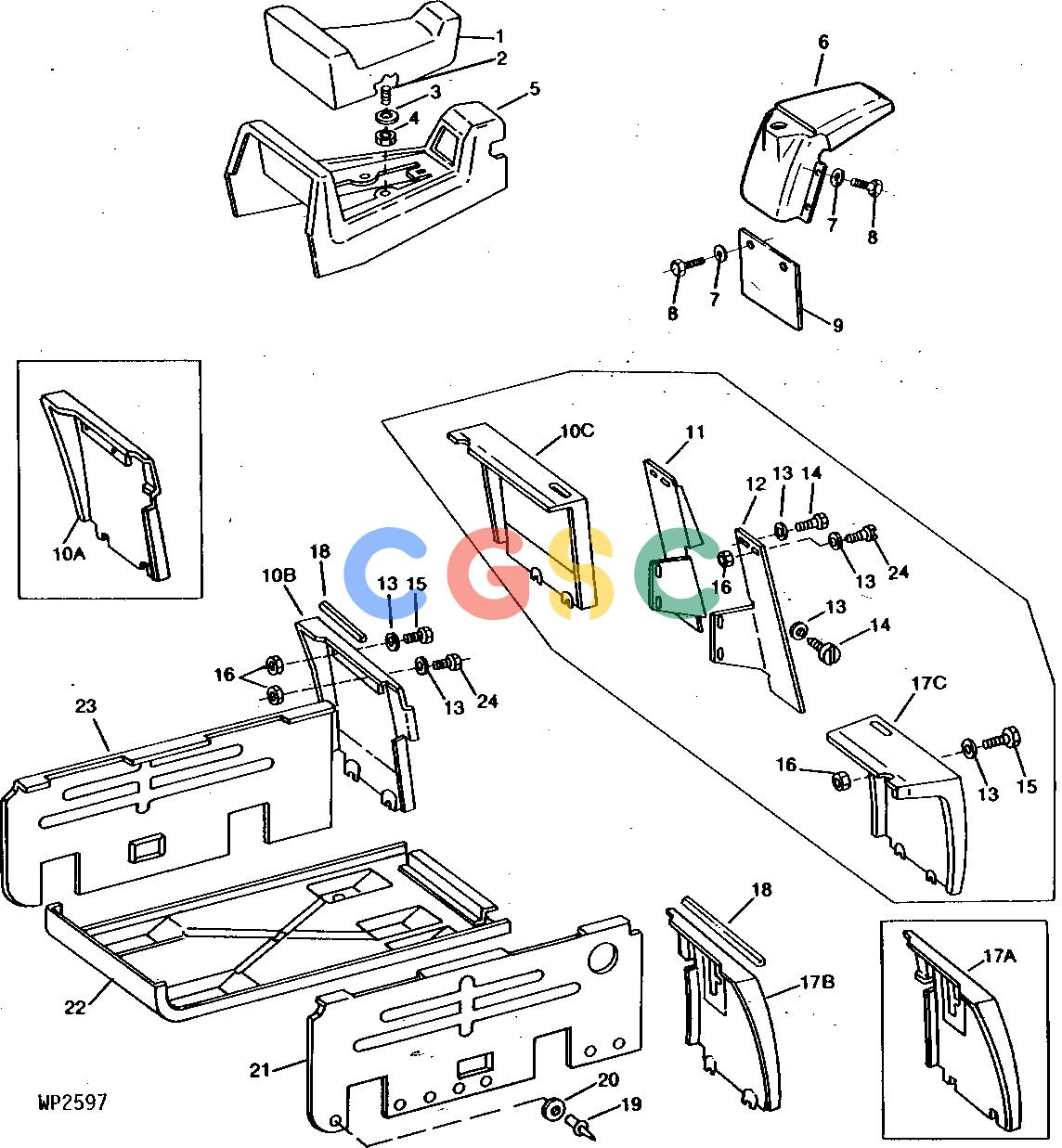

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | RE27427 | [1] | Seat | |
| 2. | 19M7163 | [2] | Cap Screw | M8 X 25 |
| 3. | 24M7207 | [2] | Washer | 8.400 X 24 X 2 MM |
| 4. | 14M7166 | [2] | Lock Nut | M8 |
| 5. | R88561 | [1] | Shroud | |
| 6. | R88562 | [1] | Fender | |
| 7. | 24H1284 | [6] | Washer | 7/32" X 7/8" X 0.065" |
| 8. | 37H129 | [4] | Screw | |
| 9. | R89782 | [1] | Splash Guards | |
| 10A. | R88563 | [1] | Fender | (AMT WITH 930 MM (37") CENTER TO CENTER TREAD WIDTH.) LH, (SUB R93205) |
| 10B. | R93205 | [1] | Fender | (AMT WITH 930 MM (37") CENTER TO CENTER TREAD WIDTH.) LH |
| 10C. | W40535 | [1] | Fender | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) LH |
| 11. | M96661 | [1] | Panel | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) |
| 12. | M96660 | [1] | Panel | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) |
| 13. | 24H1287 | [4] | Washer | (AMT WITH 930 MM (37") CENTER TO CENTER TREAD WIDTH.) 9/32" X 5/8" X 0.065" |
| 13. | 24H1287 | [10] | Washer | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) 9/32" X 5/8" X 0.065" |
| 14. | 37H24 | [6] | Screw | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) 1/4" X 3/4" NLA |
| 15. | 19M7374 | [2] | Cap Screw | (AMT WITH 930 MM (37") CENTER TO CENTER TREAD WIDTH.) M6 X 40 |
| 15. | 19M7374 | [6] | Cap Screw | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) M6 X 40 |
| 16. | 14M7165 | [4] | Lock Nut | (AMT WITH 930 MM (37") CENTER TO CENTER TREAD WIDTH.) M6 |
| 16. | 14M7165 | [8] | Lock Nut | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) M6 |
| 17A. | R88564 | [1] | Fender | (AMT WITH 930 MM (37") CENTER TO CENTER TREAD WIDTH.) RH, (SUB R93204) |
| 17B. | R93204 | [1] | Fender | (AMT WITH 930 MM (37") CENTER TO CENTER TREAD WIDTH.) RH |
| 17C. | W40558 | [1] | Fender | (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) RH |
| 18. | ........ | [1] | Foam Pad | (CUT FROM RW23240) |
| 19. | R55326 | [AR] | Rivet | 0.188" X 0.664" (SIDE PANEL TO BOTTOM) |
| 19. | R68332 | [AR] | Rivet | 0.188" X 0.976" |
| 20. | 24H1283 | [AR] | Washer | 7/32" X 1/2" X 0.049" (SIDE PANEL TO BOTTOM) |
| 21. | R88502 | [1] | Panel | RH, (SUB W39770) |
| 22. | R88503 | [1] | Panel | (SUB W39768, W39769 AND W39770) |
| 23. | R88501 | [1] | Panel | LH, (SUB W39769) |
| 24. | 19M7547 | [2] | Cap Screw | M6 X 55 |
