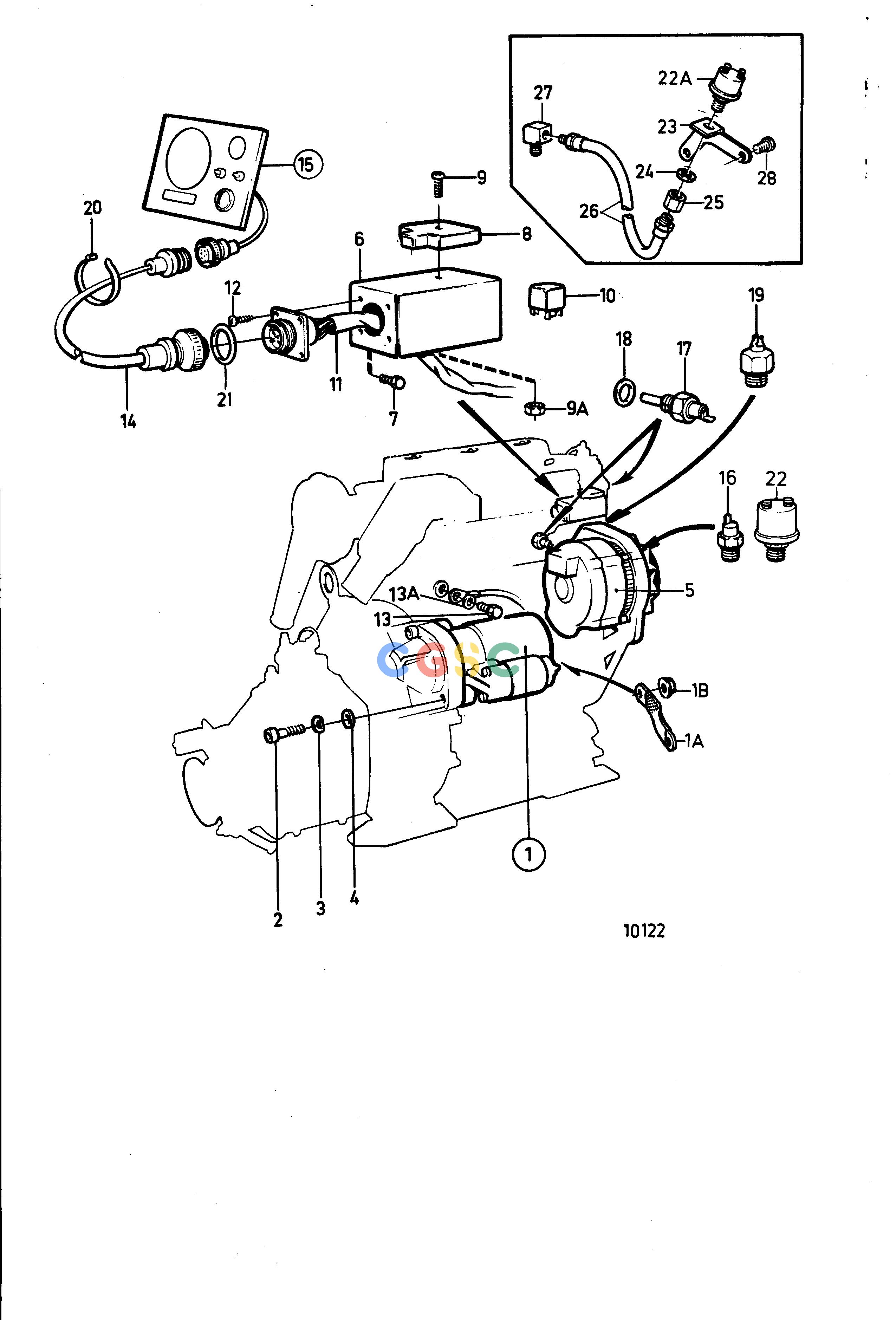

| 1. |
840808
|
[1] |
Starter motor, starter motor
|
Replaced by starter 859553 + ground cable 968048 + plate 945408., Also available as an exchange part
|
| 1. |
859553
|
[1] |
Starter motor, starter motor
|
Replaced by 1-pole starter motor 872241.Ground cable 968048 should not be used when 1-pole starter m
|
| 1. |
872241
|
[1] |
Starter motor, starter motor
|
Also available as an exchange part., 1-pole
|
| 1A. |
968048
|
[1] |
Chassis ground cable
|
For 859553
|
| 1B. |
945408
|
[1] |
Flange nut
|
For 859553
|
| 2. |
959257
|
[2] |
Hex. socket screw
|
L=40mm
|
| 3. |
940280
|
[2] |
Spring washer
|
|
| 4. |
943194
|
[2] |
Washer
|
|
| 5. |
7726000_226
|
|
alternator and installation comps
|
|
| 6. |
840672
|
[1] |
Attaching plate
|
|
| 7. |
941793
|
[2] |
Hex. socket screw
|
L=12mm
|
| 8. |
873566
|
[1] |
Fuse box
|
|
| 9. |
969408
|
[1] |
Six point socket scr
|
L=20mm
|
| 9A. |
955780
|
[1] |
Hexagon nut
|
|
| 10. |
876037
|
[1] |
Relay kit
|
12V/30A
|
| 11. |
858126
|
[1] |
Cable block
|
Productno.867814,867815,867816,868030,868091,868109 868110, For W
|
| 11. |
858524
|
[1] |
Cable block, cable unit
|
Productno.868014,868099., Productno.868226, For W
|
| 11. |
7726000_255
|
|
cables and terminals
|
|
| 12. |
955119
|
[4] |
Cross recessed screw
|
|
| 13. |
970945
|
[1] |
Hexagon screw
|
|
| 13A. |
940109
|
[1] |
Toothed washer
|
|
| 14. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 14. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 14. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 15. |
858127
|
[1] |
Instrument panel
|
Productno.867814,867815,867816., Repl by 858871
|
| 15. |
858238
|
[1] |
Instrument panel
|
Productno.868014, Repl by 859059
|
| 15. |
859058
|
[1] |
Instrument panel
|
Productno.868091,868109,868110
|
| 15. |
859059
|
[1] |
Instrument panel
|
Productno.868099, SN-2300042503
|
| 15. |
864038
|
[1] |
Instrument panel
|
Productno.868099, Productno.868226, SN2300042504-
|
| 16. |
1324750
|
[1] |
Oil pressure sensor
|
|
| 17. |
833927
|
[1] |
Thermo monitor
|
|
| 17. |
840345
|
[1] |
Temperature sensor
|
Productno.868014,868099., Productno.868226, De luxe
|
| 18. |
947624
|
[1] |
Gasket
|
|
| 19. |
1502028
|
[1] |
Tachometer sensor
|
Early type
|
| 20. |
948211
|
[1] |
Cable tie
|
|
| 21. |
846615
|
[1] |
Sealing ring
|
|
| 22. |
366906
|
[1] |
Pressure sensor
|
Productno.868014,868099., De luxe
|
| 23. |
858858
|
[1] |
Bracket
|
Productno.868014,868099., De luxe
|
| 24. |
976945
|
[1] |
Washer
|
Productno.868014,868099., De luxe
|
| 25. |
828805
|
[1] |
Nipple
|
Productno.868014,868099., De luxe
|
| 26. |
344624
|
[1] |
Hose assembly
|
Productno.868014,868099., De luxe
|
| 27. |
180110
|
[1] |
Elbow nipple
|
Productno.868014,868099., De luxe
|
| 28. |
955301
|
[2] |
Hexagon screw
|
Productno.868014,868099., De luxe
|
