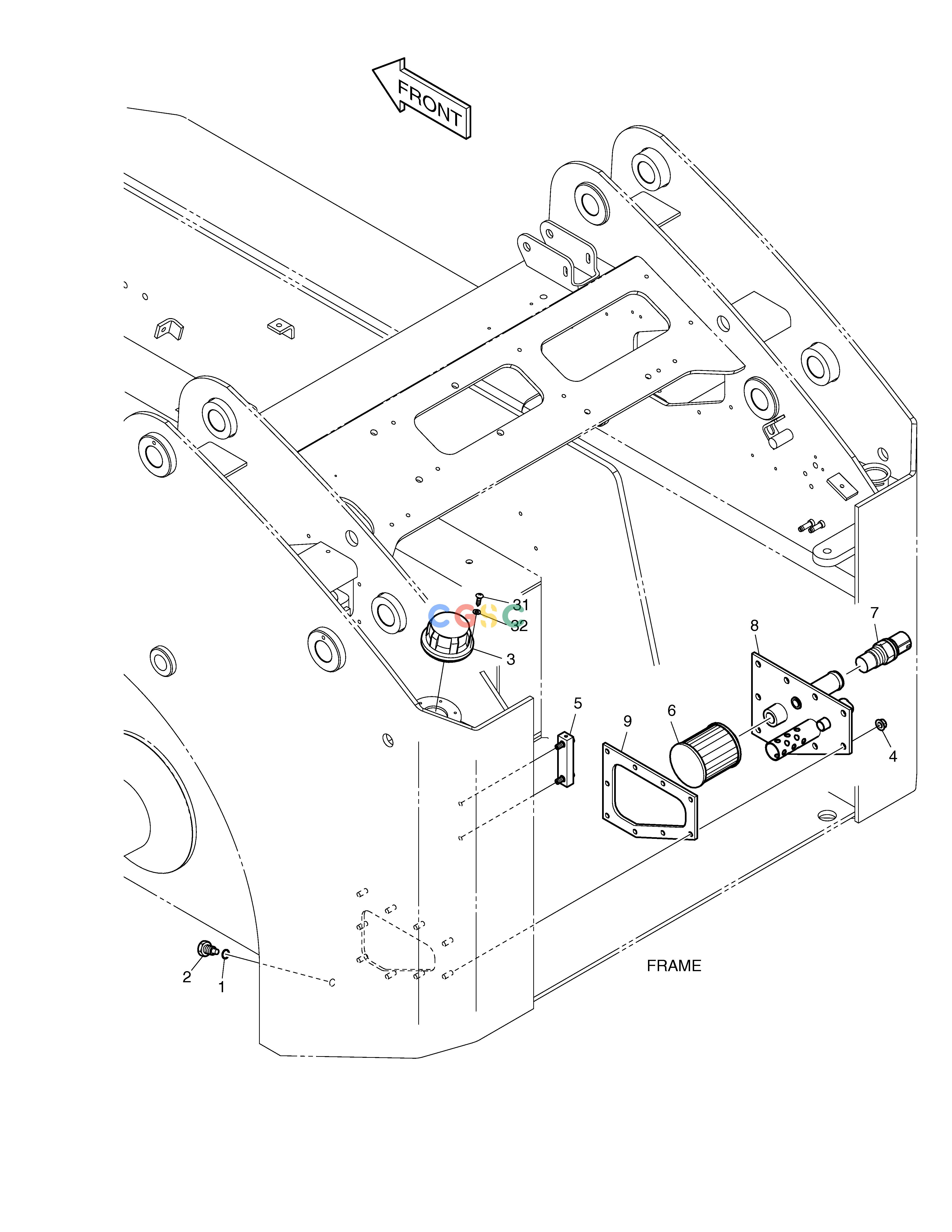

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1020667 | [-] | OIL TANK | |
| 1. | S8040061 | [1] | O-RING | |
| 2. | K1023098 | [1] | PLUG;MAGNETIC | |
| 3. | K1020978 | [1] | BREATHER;AIR | |
| 31. | S3456813 | [6] | SCREW | |
| 32. | S5020203 | [6] | WASHER;PLAIN M5 | |
| 4. | K1020165 | [9] | NUT | |
| 5. | K1019708 | [1] | GAUGE;LEVEL | |
| 6. | K1022514 | [1] | FILTER | |
| 7. | K1023004 | [1] | SWITCH;TEMPERATURE | |
| 8. | K1020750 | [1] | COVER | |
| 9. | K1020752 | [1] | GASKET |
