沃尔沃零件查询4300 Smoke limiter4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1024 次

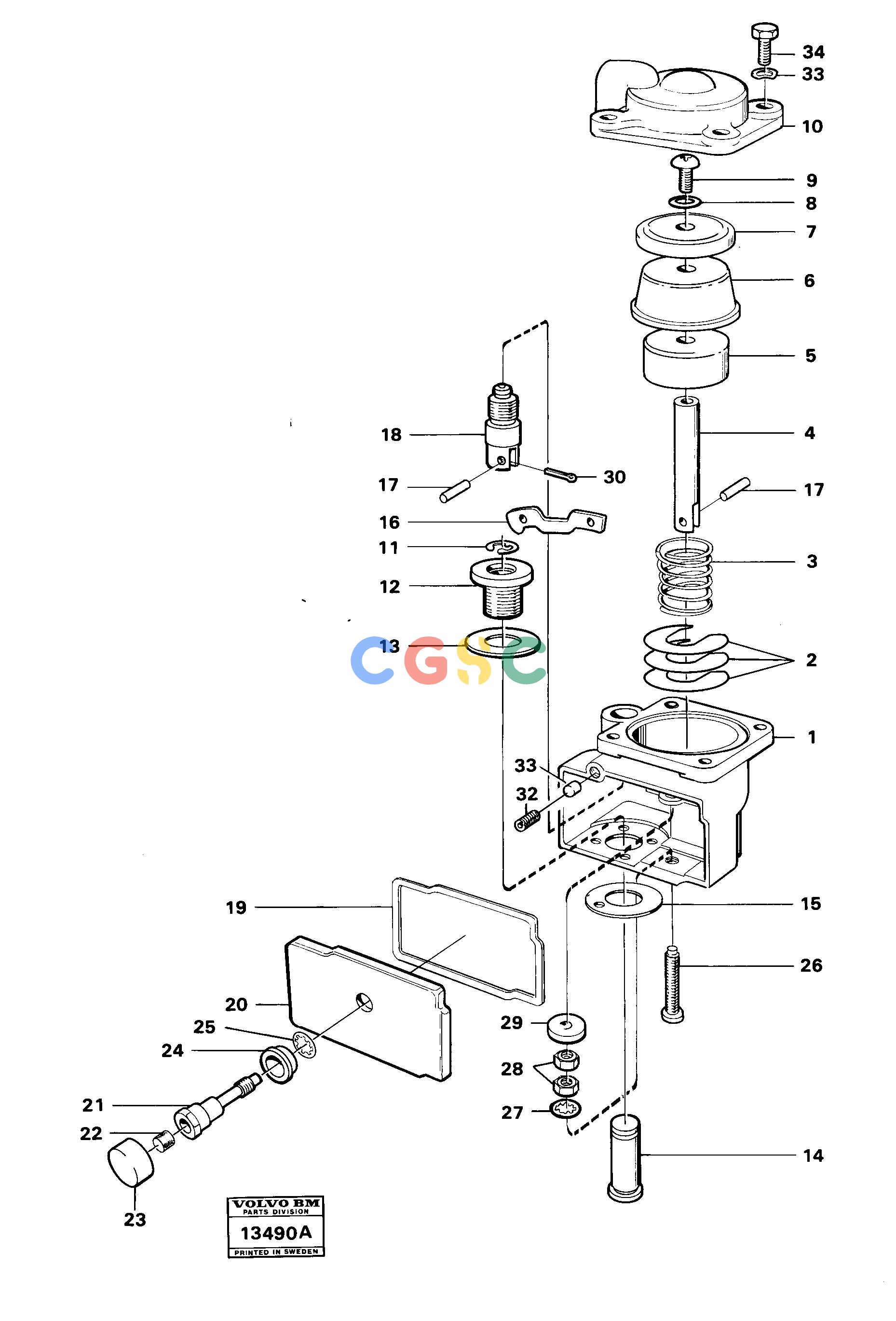

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE11992223
|
[1] |
Push Rod
|
|
| 5. |
VOE11992223
|
[1] |
Push Rod
|
|
| 6. |
VOE6643604
|
[1] |
Diaphragm
|
|
| 7. |
VOE6643605
|
[1] |
Plate
|
|
| 8. |
VOE7480156
|
[1] |
Washer
|
|
| |
VOE6643598
|
|
Smoke limiter
|
|
| 9. |
VOE956092
|
[1] |
Cross recessed screw
|
|
| 10. |
VOE6643606
|
[1] |
Cap
|
|
| 11. |
VOE6643607
|
[1] |
Retaining ring
|
|
| 12. |
VOE6643608
|
[1] |
Sleeve
|
|
| 13. |
VOE6643609
|
[1] |
Washer
|
|
| 14. |
VOE6643610
|
[0001] |
Bolt
|
|
| 15. |
VOE6643611
|
[0001] |
Gasket
|
|
| 16. |
VOE6643612
|
[0001] |
Guide plate
|
|
| 17. |
VOE6643613
|
[0002] |
Bolt
|
|
| 18. |
VOE6643614
|
[0001] |
Screw
|
|
| 1. |
VOE6643599
|
[1] |
Housing
|
|
| 19. |
VOE6643615
|
[0001] |
Gasket
|
|
| 20. |
VOE6643616
|
[0001] |
Cap
|
|
| 21. |
VOE6211944
|
[0001] |
Connector
|
|
| 22. |
VOE4880100
|
[0001] |
Filter cartridge
|
|
| 23. |
VOE6643619
|
[0001] |
Casing
|
|
| 24. |
VOE6643620
|
[0001] |
Ring
|
|
| 25. |
|
[0001] |
Washer
|
|
| 26. |
VOE6643621
|
[0001] |
Bolt
|
|
| 27. |
|
[0001] |
Washer
|
|
| 28. |
|
[0002] |
Nut
|
|
| 2. |
VOE6643600
|
[REQ] |
Shim
|
|
| 29. |
VOE6643622
|
[0001] |
Wheel
|
|
| 30. |
|
[0001] |
Split pin
|
|
| 31. |
VOE6643623
|
[0001] |
Absorber
|
|
| 32. |
VOE7480175
|
[0001] |
Screw
|
|
| 33. |
VOE941905
|
[0004] |
Spring washer
|
|
| 34. |
VOE955245
|
[0004] |
Hexagon screw
|
|
| |
VOE6643624
|
[0001] |
Gasket
|
|
| |
VOE6643625
|
[0001] |
Pin
|
|
| |
VOE6643626
|
[0001] |
Spring
|
|
| |
VOE6643627
|
[0001] |
Snap ring
|
|
| 3. |
VOE6643601
|
[1] |
Spring
|
|
| |
VOE7350508
|
[0001] |
O-ring
|
|
