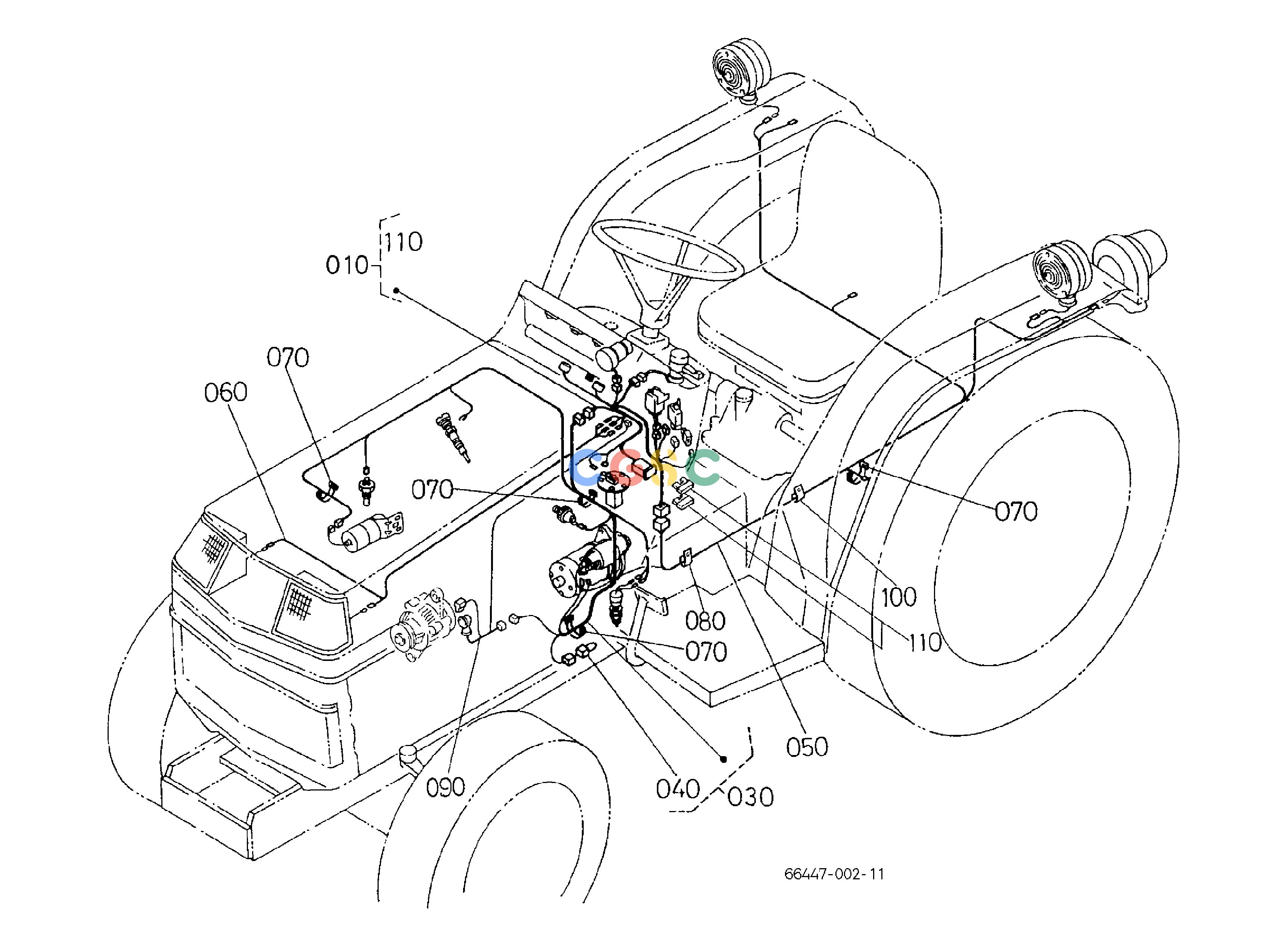

久保田零件查询T04402 WIRE HARNESS [CA] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
656 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641655153
|
[1] |
WIRE HARNESS
|
0.8800(lbs); 0.400
|
| 030. |
6641655160
|
[1] |
WIRE HARNESS
|
0.5060(lbs); 0.230
|
| 040. |
6711155190
|
[1] |
RING FUSIBLE
|
0.0110(lbs); 0.005
|
| 050. |
6641655210
|
[1] |
WIRE HARNESS
|
0.5720(lbs); 0.260
|
| 060. |
6641855150
|
[1] |
WIRE HARNESS
|
0.1540(lbs); 0.070
|
| 070. |
5358164150
|
[4] |
BAND CORD
|
0.0044(lbs); 0.002
|
| 080. |
3534029380
|
[1] |
CLAMP CORD
|
0.0220(lbs); 0.010
|
| 090. |
6644655250
|
[1] |
WIRE HARNESS
|
0.0440(lbs); 0.020
|
| 100. |
1223467580
|
[1] |
CLAMP CORD
|
0.0264(lbs); 0.012
|
| 110. |
3582075560
|
[2] |
FUSE
|
0.0044(lbs); 0.002
|
