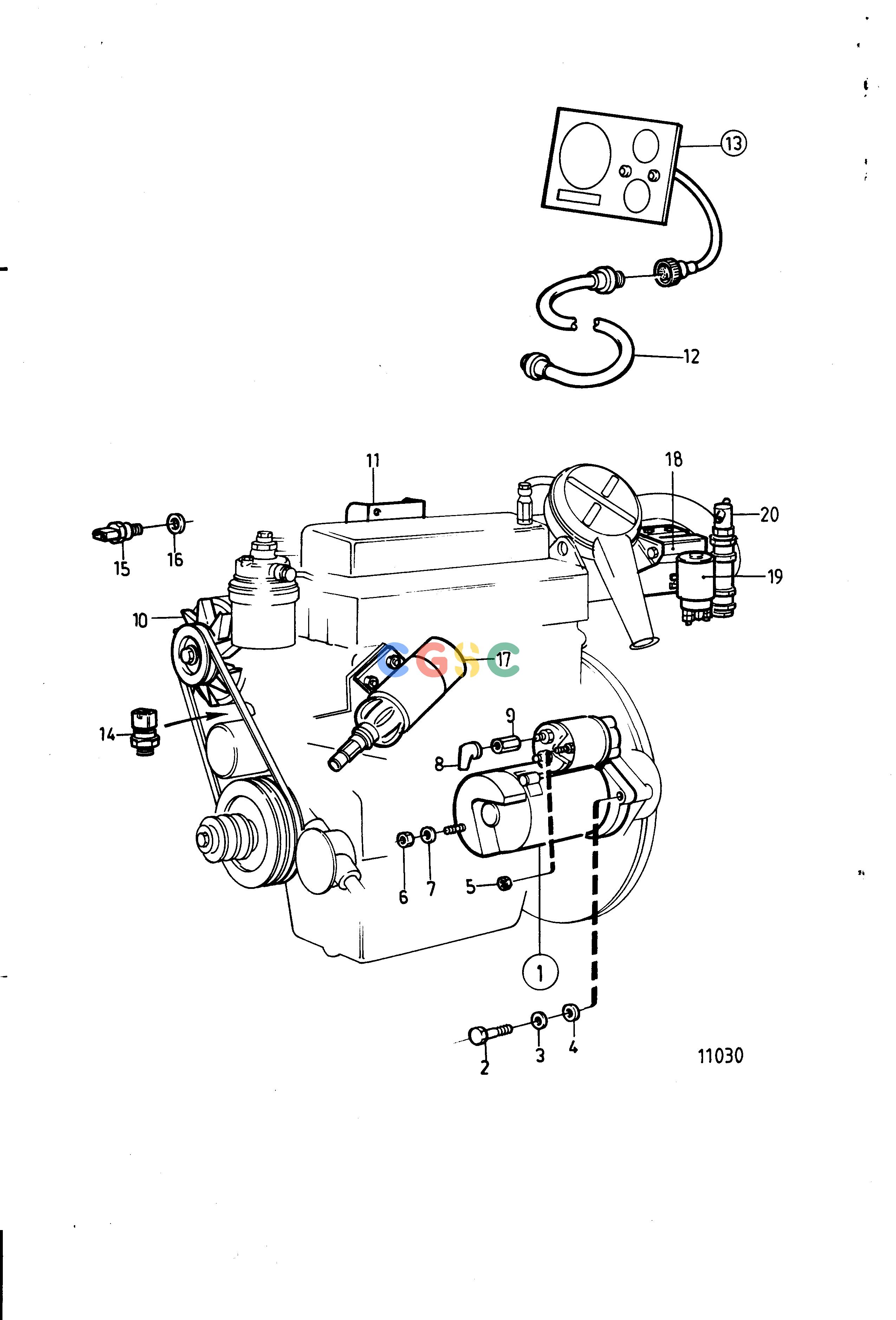

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemElectrical System and Instruments 2-pole Electrical SystemEPC Volvo Penta Parts catal
广数供应链运营团队, 14 02月, 2025，浏览：
550 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859252
|
[1] |
Starter motor
|
Also available as an exchange part.
|
| 2. |
959239
|
[3] |
Hex. socket screw
|
|
| 3. |
941908
|
[3] |
Spring washer
|
|
| 4. |
942551
|
[3] |
Washer
|
|
| 5. |
965483
|
[1] |
Flange nut
|
M5
|
| 6. |
968862
|
[1] |
Nut
|
M8
|
| 7. |
941907
|
[1] |
Spring washer
|
|
| 8. |
855798
|
[1] |
Protecting sleeve
|
|
| 9. |
855314
|
[1] |
Spacer nut
|
|
| 10. |
|
|
|
12V
|
| 11. |
7726000_240
|
|
electrical box and installation comps
|
|
| 12. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 12. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 12. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 13. |
864039
|
[1] |
Instrument panel
|
|
| 14. |
863169
|
[1] |
Pressure monitor
|
|
| 15. |
858229
|
[1] |
Thermo monitor
|
|
| 16. |
947624
|
[1] |
Gasket
|
|
| 17. |
|
|
|
See group 2D
|
| 18. |
7726000_243
|
|
start element
|
|
| 19. |
7726000_243
|
|
start element relay with install. comps
|
|
| 20. |
7726000_241
|
|
tilt switch
|
|
