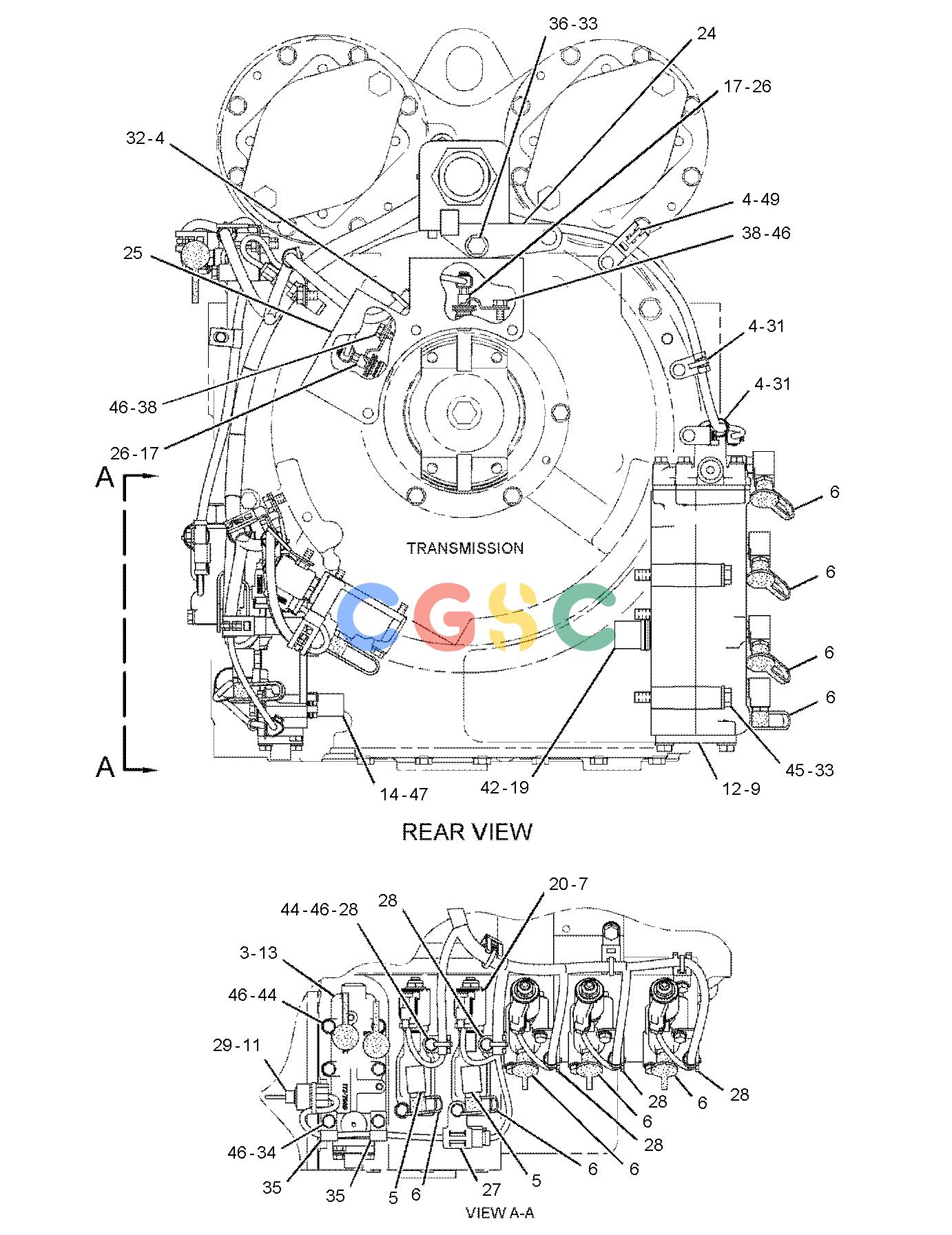

卡特零件查询（725） 234-2974: CONTROL GP-TRANSMISSION HYD
广数供应链运营团队, 14 02月, 2025，浏览：
169 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1V-6341 | [2] | SEAL | |
| 2. | 2H-6184 | [1] | SEAL-O-RING | |
| 3. | 2P-1692 | [1] | SEAL-O-RING | |
| 4. | 3S-2093 | [22] | STRAP-CABLE | |
| 5. | 315-9835 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-0484 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 6. | 6V-0852 | [10] | CAP-DUST | |
| 7. | 6D-7889 | [6] | SEAL-O-RING | |
| 8. | 8T-7000 | [1] | SEAL | |
| 9. | 9M-9545 | [1] | SEAL-O-RING | |
| 10. | 124-9401 | [1] | CLIP(TAB) | |
| 11. | 134-2252Y | [1] | SENSOR GP-TEMPERATURE(8-VOLT)(TRANSMISSION OIL) | |
| 12. | 149-0978Y | [1] | VALVE GP-RETARDER HYD CONTROL | |
| 13. | 172-7970Y | [1] | VALVE GP-RELIEF(TRANSMISSION HYDRAULIC CONTROL) | |
| 14. | 180-3178 | [1] | VALVE GP-RELIEF(TORQUE CONVERTER INLET) | |
| 15. | 183-9358 | [1] | PLATE | |
| 16. | 189-5746Y | [1] | SENSOR GP-SPEED(TORQUE CONVERTER OUTPUT) | |
| 17. | 191-8305 | [2] | SENSOR GP-SPEED(TRANSMISSION OUTPUT) | |
| | | | (EACH INCLUDES) |
| | 137-6645 | [1] | PAD-CONNECTOR | |
| 18. | 193-0421Y | [1] | SENSOR GP-SPEED(ENGINE) | |
| 19. | 230-3166 | [1] | VALVE GP-RELIEF(TORQUE CONVERTER OUTLET) | |
| 20. | 244-3114Y | [6] | VALVE GP-MODULATING(24-VOLT)(TRANSMISSION CLUTCH) | |
| 21. | 209-6632Y | [1] | VALVE GP-BYPASS(POWER TRAIN OIL FILTER) | |
| 22. | 245-1158 | [1] | HARNESS AS-TRANSMISSION | |
| | 7G-7917 | [15] | PLUG-SEAL | |
| | 8N-1513 | [1] | RECEPTACLE AS-CONNECTOR(37-PIN) | |
| | 8N-1521 | [1] | BELL AS-END | |
| | 8N-1523 | [1] | LOCKWASHER | |
| | 8T-8730 | [23] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-6772 | [1] | STRAP-CABLE | |
| | 9X-6856 | [22] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 114-8843E | | SLEEVE-PLASTIC(260-CM) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(10-CM) | |
| | 155-2270 | [12] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEGDE & INTERFACE SEAL) |
| | 180-9340 | [4] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 23. | 245-1159 | [1] | BRACKET | |
| 24. | 246-2584 | [1] | BRACKET AS | |
| 25. | 171-1526 | [1] | GUARD | |
| 26. | 117-1385 | [2] | SEAL-O-RING | |
| 27. | 130-5300 | [2] | CLIP | |
| 28. | 132-5789 | [9] | CLIP(LADDER) | |
| 29. | 214-7568 | [1] | SEAL-O-RING | |
| 30. | 4B-1226 | [1] | SCREW-MACHINE(10-24X6.35-MM) | |
| 31. | 4P-7429 | [2] | CLIP(LADDER) | |
| 32. | 4P-7581 | [6] | CLIP(LADDER) | |
| 33. | 5P-8245 | [5] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 34. | 5P-8347M | [8] | BOLT(M8X1.25X70-MM) | |
| 35. | 5P-9085 | [3] | CLIP(LOOP) | |
| 36. | 6A-5591M | [1] | BOLT(M12X1.75X25-MM) | |
| 37. | 6V-3940M | [1] | BOLT(M8X1.25X25-MM) | |
| 38. | 6V-5215M | [5] | BOLT(M8X1.25X16-MM) | |
| 39. | 6V-5839 | [7] | WASHER(11X21X2.5-MM THK) | |
| 41. | 6V-8455M | [7] | BOLT(M10X1.5X16-MM) | |
| 42. | 8M-1112 | [1] | SEAL-O-RING | |
| 44. | 8T-0100M | [14] | BOLT(M8X1.25X60-MM) | |
| 45. | 8T-0106M | [4] | BOLT(M12X1.75X100-MM) | |
| 46. | 9M-1974 | [28] | WASHER-HARD(8.8X16X2-MM THK) | |
| 47. | 9X-4609 | [1] | SEAL-O-RING | |
| 48. | 9X-8268 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| 49. | 4P-7428 | [1] | CLIP(LADDER) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
