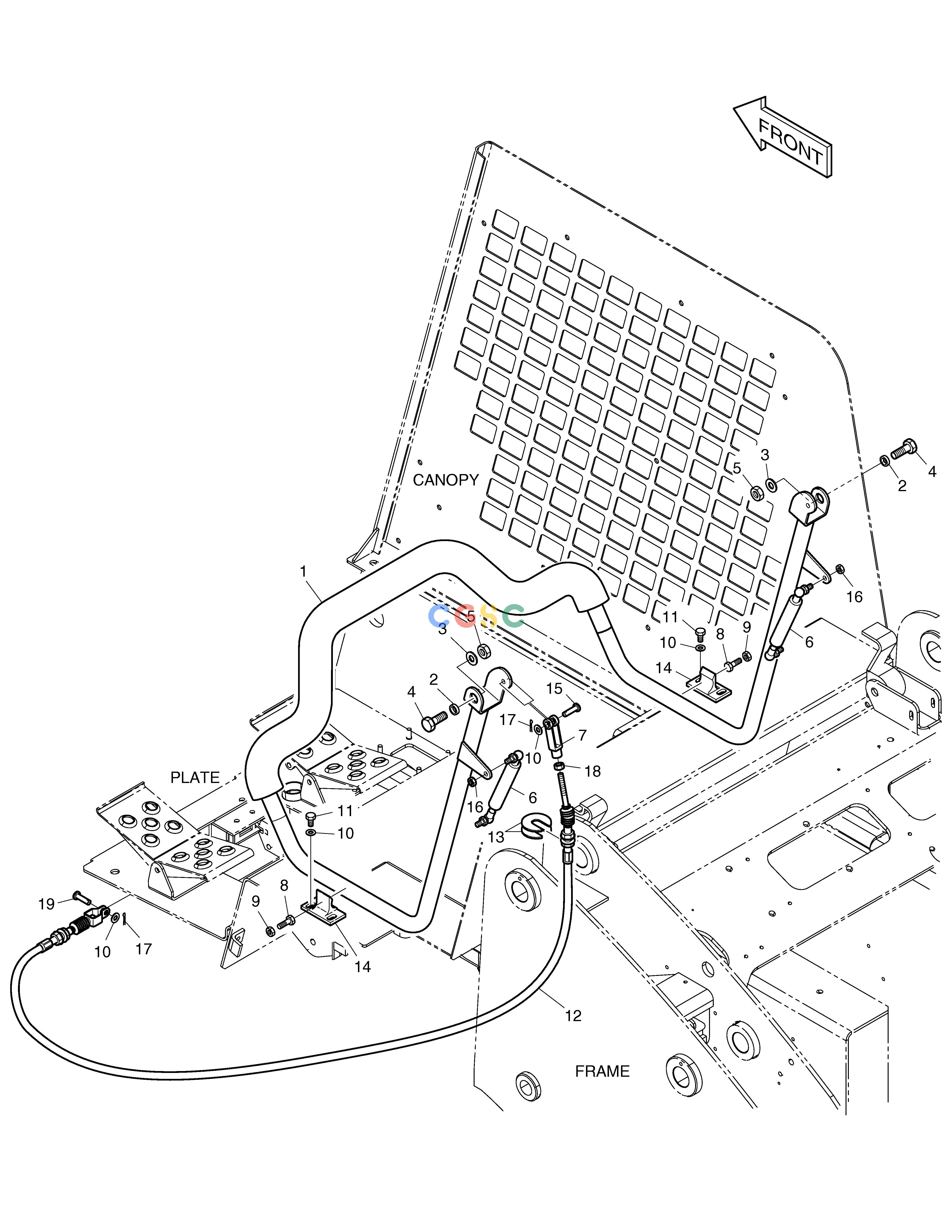

斗山零件查询SEAT BAR 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1051 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1020488
|
[-] |
SEAT BAR ASS'Y
|
|
| 1. |
K1019985
|
[1] |
BAR;SEAT
|
|
| 10. |
K1023146
|
[6] |
WASHER;HARDENED
|
|
| 11. |
S0508663
|
[4] |
BOLT
|
|
| 12. |
K1020130
|
[1] |
CABLE
|
|
| 13. |
K1020099
|
[2] |
SPACER
|
|
| 14. |
K1019769
|
[2] |
BLOCK
|
|
| 15. |
S5760212
|
[1] |
PIN;CLEVIS
|
|
| 16. |
K1023115
|
[4] |
NUT;LOCK
|
|
| 17. |
S180333H
|
[2] |
PIN
|
|
| 18. |
S4016333
|
[1] |
NUT
|
|
| 19. |
S5760192
|
[1] |
PIN
|
|
| 2. |
K1022280
|
[2] |
SPACER
|
|
| 3. |
S5000713
|
[2] |
WASHER;PLAIN
|
|
| 4. |
S0560463
|
[2] |
BOLT
|
|
| 5. |
S4016743
|
[2] |
NUT
|
|
| 6. |
K1022290
|
[2] |
CYLINDER;GAS
|
|
| 7. |
K1019640
|
[1] |
YOKE
|
|
| 8. |
S0509063
|
[2] |
BOLT M8X1.25X25
|
|
| 9. |
S4016543
|
[2] |
NUT
|
|
