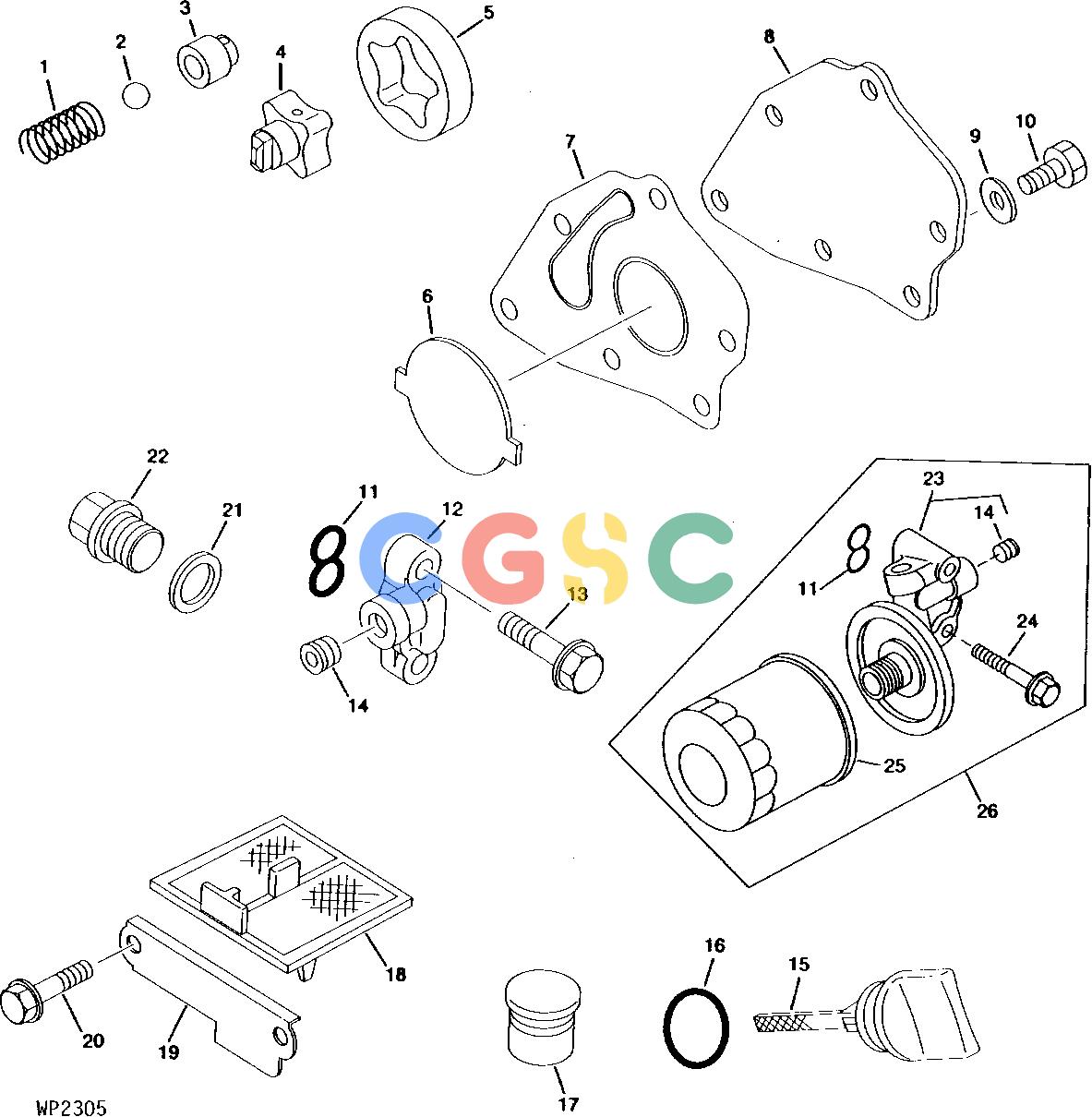

约翰迪尔零件查询622 - AMT OIL PUMP POMPE A HUILE OELPUMPE POMPA DELL'OLIO BOMBA DE ACEITE OLJEPUMP [A20]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
697 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
W40440
|
[1] |
Spring
|
|
| 2. |
M88526
|
[1] |
Ball
|
|
| 3. |
W40431
|
[1] |
VALVE SEAT INSERT
|
|
| 4. |
AW26836
|
[1] |
OIL PUMP
|
|
| 5. |
M76141
|
[1] |
Rotor
|
|
| 6. |
W40434
|
[1] |
Plate
|
|
| 7. |
W40432
|
[1] |
Gasket
|
|
| 8. |
W40437
|
[1] |
Cover
|
|
| 9. |
24M7054
|
[6] |
Washer
|
|
| 10. |
21M7246
|
[6] |
Screw
|
|
| 11. |
M88472
|
[1] |
O-Ring
|
|
| 12. |
W40435
|
[1] |
Cover
|
|
| 13. |
19M7862
|
[2] |
Screw
|
|
| 14. |
M97250
|
[2] |
Cover
|
|
| 15. |
W40436
|
[1] |
Filler Cap
|
|
| 16. |
PT12198
|
[1] |
O-Ring
|
|
| 17. |
W40439
|
[1] |
Plug
|
|
| 18. |
AW26837
|
[1] |
OIL FILTER
|
|
| 19. |
W40433
|
[1] |
Plate
|
|
| 20. |
M88525
|
[2] |
Bolt
|
|
| 21. |
M88476
|
[2] |
Gasket
|
|
| 22. |
M119144
|
[2] |
Drain Plug
|
|
| 23. |
W40392
|
[1] |
Bracket
|
|
| 24. |
19M7320
|
[2] |
CAP SCREW
|
|
| 25. |
AM107423
|
[1] |
OIL FILTER
|
|
| 26. |
AW26806
|
[1] |
Bracket Kit
|
|
| ... |
AM124808
|
[1] |
Gasket Kit
|
|
