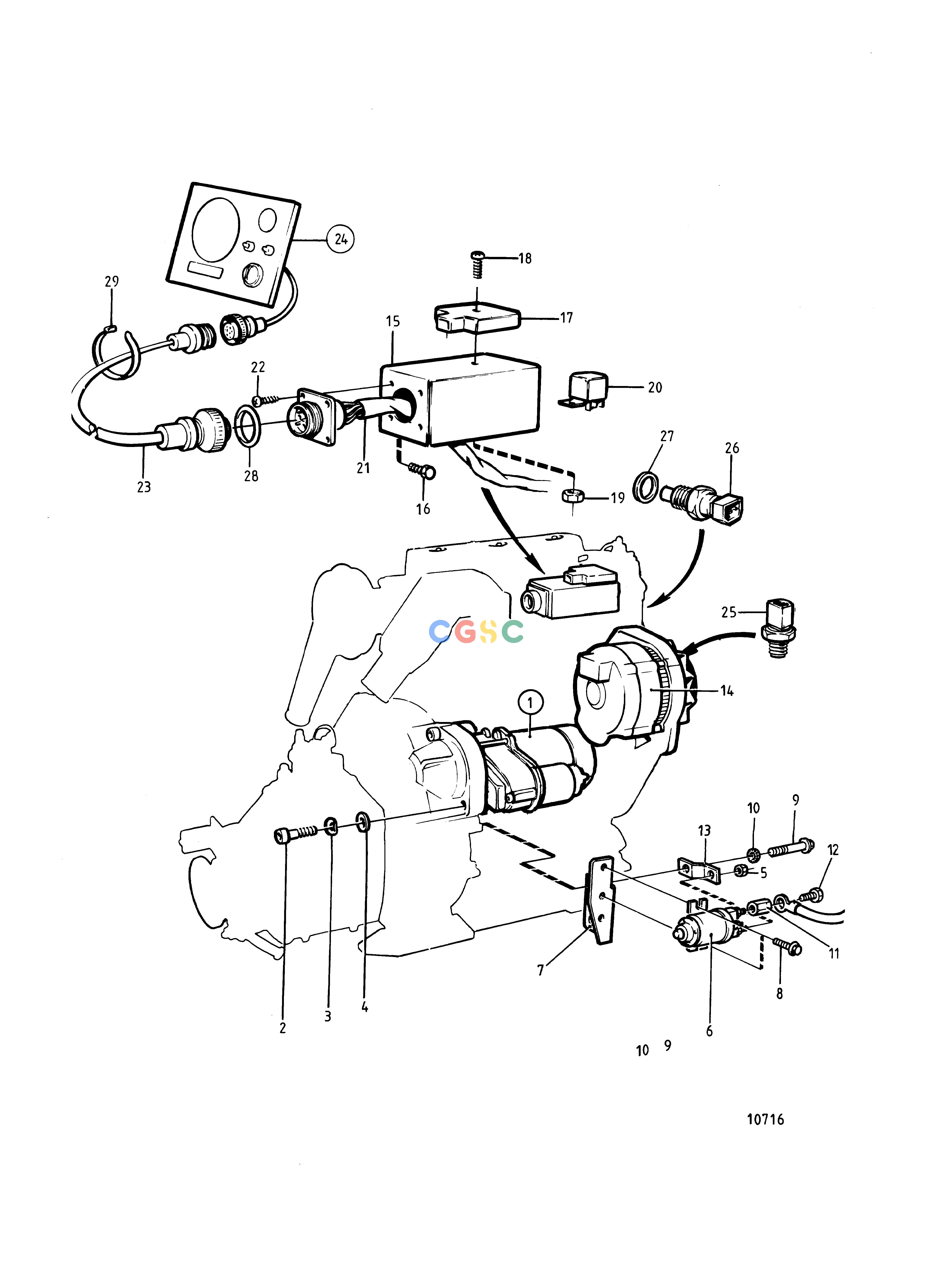

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemElectrical System and Instruments 2-pole Electrical System: BEPC Volvo Penta Parts ca
广数供应链运营团队, 14 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859553
|
[1] |
Starter motor
|
Replaced by 1-pole starter motor 872241 and mounting kit 872381, Also available as an exchange part.
|
| 1. |
872241
|
[1] |
Starter motor, starter motor
|
Also available as an exchange part., 1-pole
|
| 2. |
959257
|
[2] |
Hex. socket screw
|
|
| 3. |
940280
|
[2] |
Spring washer
|
|
| 4. |
943194
|
[2] |
Washer
|
|
| 5. |
955782
|
[1] |
Hexagon nut
|
|
| 6. |
872242
|
[1] |
Relay
|
Included in mounting kit 872381 for changing from 2-pole to 1-pole starter motor., SN2300052118-
|
| 7. |
22101934
|
[1] |
Bracket
|
Included in mounting kit 872381 for changing from 2-pole to 1-pole starter motor., SN2300052118-
|
| 8. |
965198
|
[2] |
Flange screw
|
Included in mounting kit 872381 for changing from 2-pole to 1-pole starter motor., SN2300052118-
|
| 9. |
946441
|
[2] |
Flange screw
|
Included in mounting kit 872381 for changing from 2-pole to 1-pole starter motor., SN2300052118-
|
| 10. |
945987
|
[1] |
Toothed washer
|
Included in mounting kit 872381 for changing from 2-pole to 1-pole starter motor., SN2300052118-
|
| 11. |
855314
|
[1] |
Spacer nut
|
Included in mounting kit 872381 for changing from 2-pole to 1-pole starter motor., SN2300052118-
|
| 12. |
946440
|
[1] |
Flange screw
|
Included in mounting kit 872381 for changing from 2-pole to 1-pole starter motor., SN2300052118-
|
| 13. |
860878
|
[1] |
Ground connection
|
Included in mounting kit 872381 for changing from 2-pole to 1-pole starter motor., SN2300052118-
|
| 14. |
858838
|
[1] |
Alternator, alternator and installation comps
|
|
| 14. |
|
|
|
|
| 15. |
840672
|
[1] |
Attaching plate
|
|
| 16. |
941793
|
[2] |
Hex. socket screw
|
|
| 17. |
824823
|
[1] |
Fuse box
|
|
| 18. |
955247
|
[1] |
Hexagon screw
|
|
| 19. |
955780
|
[1] |
Hexagon nut
|
|
| 20. |
876037
|
[1] |
Relay kit
|
12V/30A
|
| 21. |
860143
|
[1] |
Cable harness
|
|
| 22. |
955119
|
[4] |
Cross recessed screw
|
|
| 23. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 23. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 23. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 24. |
859058
|
[1] |
Instrument panel
|
|
| 25. |
863169
|
[1] |
Pressure monitor
|
|
| 26. |
858229
|
[1] |
Thermo monitor
|
|
| 27. |
947624
|
[1] |
Gasket
|
|
| 28. |
846615
|
[1] |
Sealing ring
|
|
| 29. |
948210
|
[1] |
Cable tie, strip clamp
|
|
| 29. |
|
|
|
|
| 29. |
872381
|
[1] |
Mounting kit, starter motor
|
|
