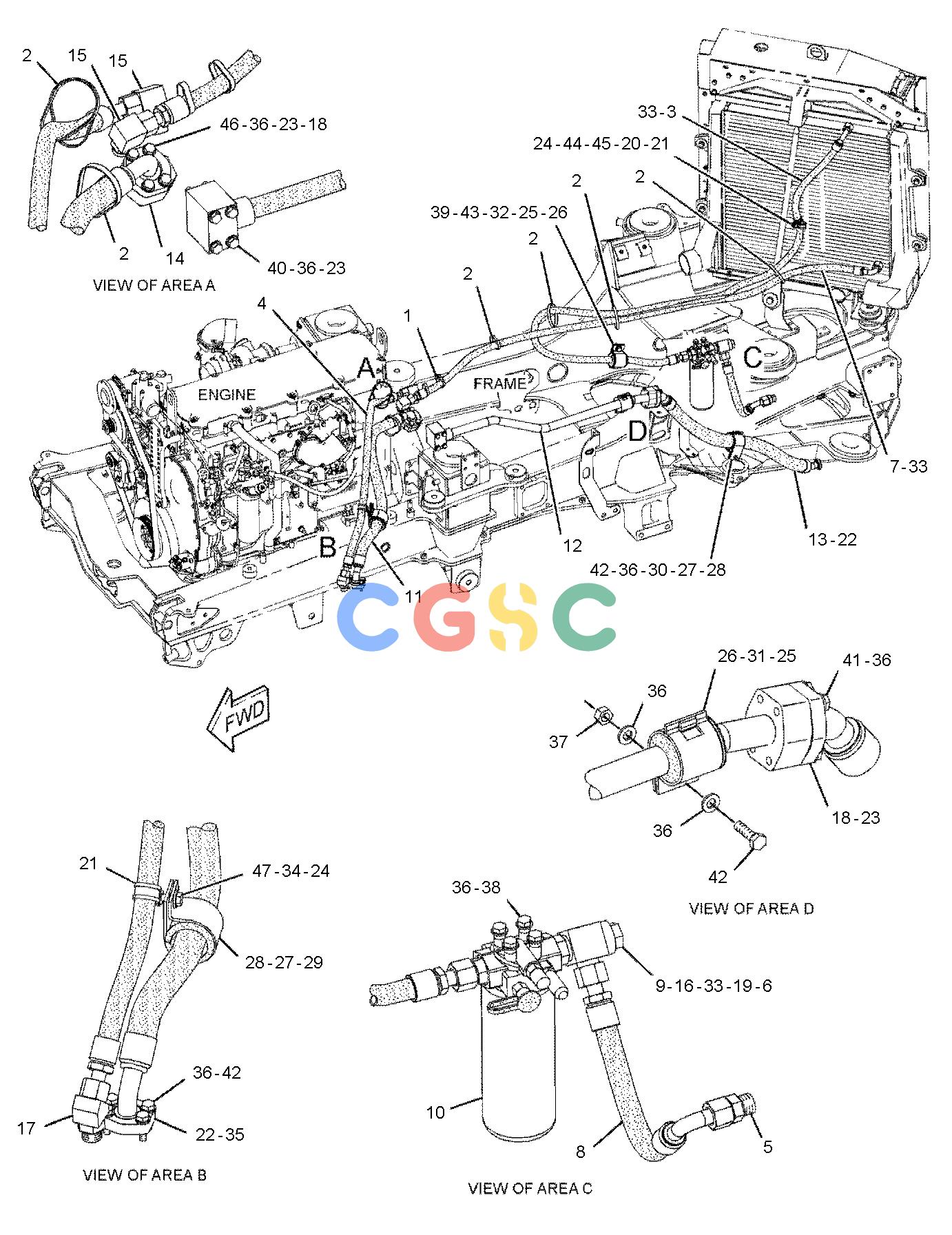

卡特零件查询（725） 249-4701: FILTER & LINES GP-POWER TRAIN
广数供应链运营团队, 14 02月, 2025，浏览：
842 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [2] | STRAP | |
| 2. | 6U-0456 | [7] | STRAP | |
| 3. | 236-2909I | [1] | HOSE AS | |
| 4. | 148-0225I | [1] | HOSE AS | |
| 5. | 148-8327 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 6. | 148-8411C | [1] | PLUG AS | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| 7. | 175-7764I | [1] | HOSE AS | |
| 8. | 263-2201CI | [1] | HOSE AS | |
| 9. | 196-1203 | [1] | TEE | |
| 10. | 334-2922CY | [1] | FILTER GP-OIL(DIFF LOCK, OUTPUT XFR GEAR) | |
| 11. | 280-1374I | [1] | HOSE AS | |
| 12. | 236-7928 | [1] | TUBE AS | |
| 13. | 249-8077I | [1] | HOSE AS | |
| 14. | 278-5926 | [1] | FLANGE | |
| 15. | 148-8347 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 16. | | [1] | PLUG AS |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 17. | 153-6237 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 18. | 1P-4578 | [4] | FLANGE-HALF | |
| 19. | 3D-2824 | [1] | SEAL-O-RING | |
| 20. | 3U-2428 | [1] | CLAMP-PIPE | |
| 21. | 3U-2755 | [2] | CLIP | |
| 22. | 4J-0520 | [2] | SEAL-O-RING | |
| 23. | 4J-0522 | [4] | SEAL-O-RING | |
| 24. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 25. | 5P-7468 | [2] | CLIP(SLOT) | |
| 26. | 5P-7469 | [2] | CLIP(TAB) | |
| 27. | 5P-7470 | [2] | CLIP(SLOT) | |
| 28. | 5P-7471 | [2] | CLIP(TAB) | |
| 29. | 5P-7703 | [1] | GROMMET(52-MM ID) | |
| 30. | 5P-8182 | [1] | GROMMET(46-MM ID) | |
| 31. | 6V-1874 | [1] | GROMMET(31-MM ID) | |
| 32. | 6V-4349 | [1] | GROMMET | |
| 33. | 6V-9746 | [3] | SEAL-O-RING | |
| 34. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 35. | 8C-3206 | [2] | FLANGE-HALF | |
| 36. | 8T-4121 | [23] | WASHER-HARD(11X21X2.5-MM THK) | |
| 37. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 38. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 39. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 40. | 8T-4178M | [4] | BOLT(M10X1.5X90-MM) | |
| 41. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 42. | 8T-4196M | [6] | BOLT(M10X1.5X35-MM) | |
| 43. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 44. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 45. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 46. | 8T-6466M | [4] | BOLT(M10X1.5X60-MM) | |
| 47. | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
