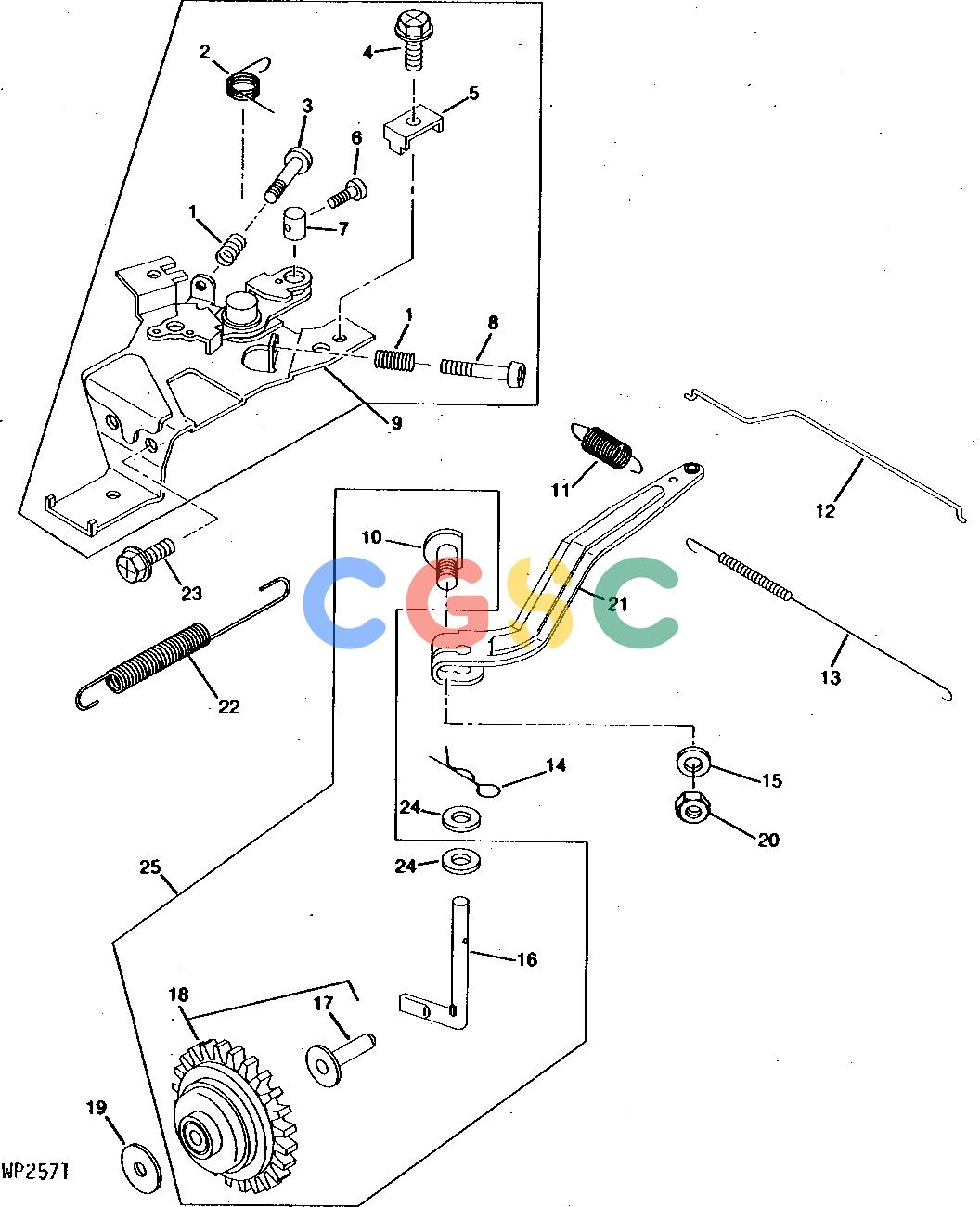

约翰迪尔零件查询622 - AMT GOVERNOR AND THROTTLE LINKAGE TRINGLERIE DE REGULATEUR ET D'ACCELERATEUR DREHZAHLREGLER UND DROSSELGEPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
841 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
M95854
|
[2] |
Spring
|
|
| 2. |
M133366
|
[1] |
Spring
|
|
| 3. |
21M7197
|
[1] |
Screw
|
|
| 4. |
M95855
|
[1] |
Bolt
|
|
| 5. |
M88468
|
[1] |
Clamp
|
|
| 6. |
21M7409
|
[1] |
Screw
|
|
| 7. |
M96546
|
[1] |
NUT
|
|
| 8. |
21M7369
|
[1] |
Screw
|
|
| 9. |
AW26841
|
[1] |
ENGINE CONTROLLER
|
|
| 10. |
M70085
|
[1] |
Bolt
|
|
| 11. |
W40465
|
[1] |
Spring
|
|
| 12. |
W40461
|
[1] |
Link
|
|
| 13. |
M94839
|
[1] |
Spring
|
|
| 14. |
M88461
|
[1] |
Pin
|
|
| 15. |
24M7088
|
[1] |
Washer
|
|
| 16. |
W40462
|
[1] |
Arm
|
|
| 17. |
........
|
[1] |
Sleeve
|
|
| 18. |
AM104507
|
[1] |
GOVERNOR
|
|
| 19. |
M95856
|
[1] |
Washer
|
|
| 20. |
14M7272
|
[1] |
NUT
|
|
| 21. |
AW26840
|
[1] |
Arm
|
|
| 22. |
W40575
|
[1] |
Extension Spring
|
|
| 23. |
19M7774
|
[2] |
Screw
|
|
| 24. |
24M7274
|
[2] |
Washer
|
|
| 25. |
AM109189
|
[1] |
KIT
|
|
