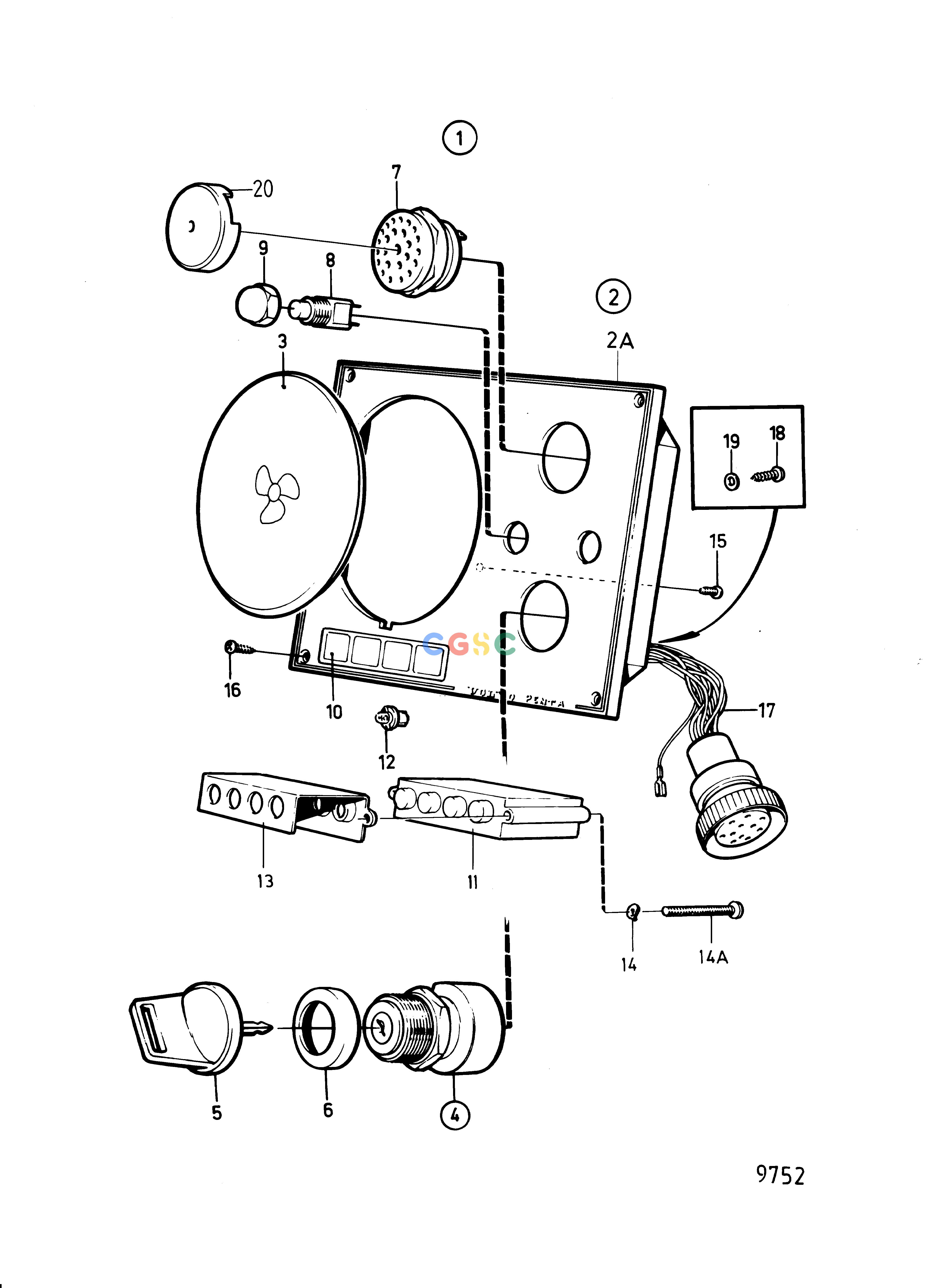

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemInstrument Panel 12VEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
191 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
840922
|
[1] |
Instrument panel
|
Gold coloured decor stripe., Repl by 858870
|
| 2. |
858040
|
[1] |
Instrument panel
|
|
| 2A. |
858646
|
[1] |
Instrument panel
|
(828583)
|
| 3. |
828592
|
[1] |
Plastic plug
|
|
| 4. |
828778
|
[1] |
Starter switch
|
(828582)
|
| 5. |
828676
|
[2] |
Key
|
State key code when ordering
|
| 6. |
1581184
|
[1] |
Round nut
|
|
| 7. |
828587
|
[1] |
Buzzer
|
|
| 8. |
828584
|
[1] |
Toggle switch
|
Alarm
|
| 8. |
828585
|
[1] |
Toggle switch
|
|
| 9. |
828586
|
[2] |
Nut
|
|
| 10. |
858645
|
[1] |
Symbol strip
|
(828560)
|
| 11. |
873737
|
[1] |
Electronic unit
|
|
| 12. |
19923
|
[1] |
Bulb
|
12V
|
| 13. |
828784
|
[1] |
Reflector
|
|
| 14. |
941904
|
[2] |
Spring washer
|
|
| 14A. |
941615
|
[2] |
Cross recessed screw
|
|
| 15. |
949947
|
[1] |
Cross recessed screw
|
(966832)
|
| 16. |
828647
|
[4] |
Screw
|
|
| 17. |
7726000_255
|
|
cables and cable terminals
|
|
| 18. |
949947
|
[1] |
Cross recessed screw
|
|
| 19. |
941904
|
[1] |
Spring washer
|
|
| 20. |
858795
|
[1] |
Protecting casing
|
|
